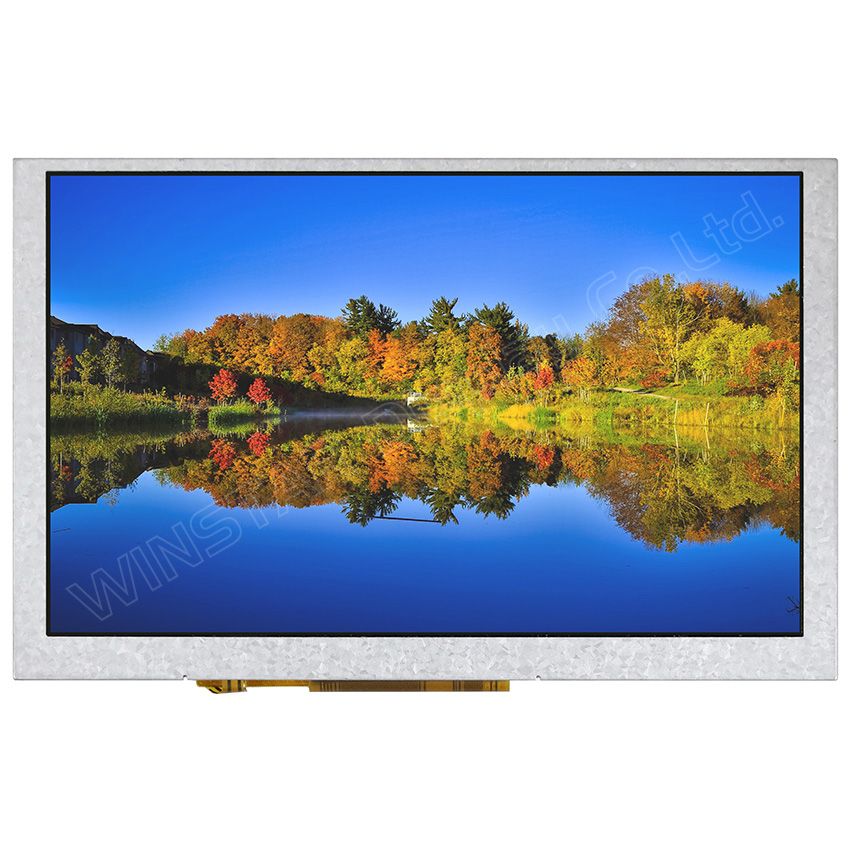

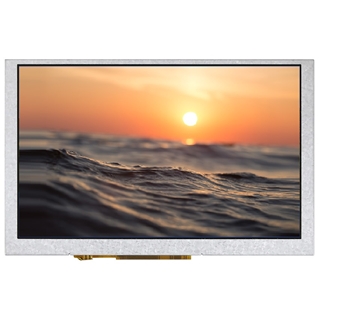

WF50QTIFGDBN0#

TFT 5" 800x480, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 500cd/m², No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

5 inch size of Winstar TFT Panel Q series family featured with SSD1963 controller board plus a 36 pin-out connector on board. This Display is featured with 8 bit or 16 bit options and already defined pin no. 33 ~ 36 as backlight supply; therefore, the customers no need to design extra backlight circuit.This display is with the module dimension of 120.7 x 75.8 mm and AA size of 108.0 x 64.8mm.

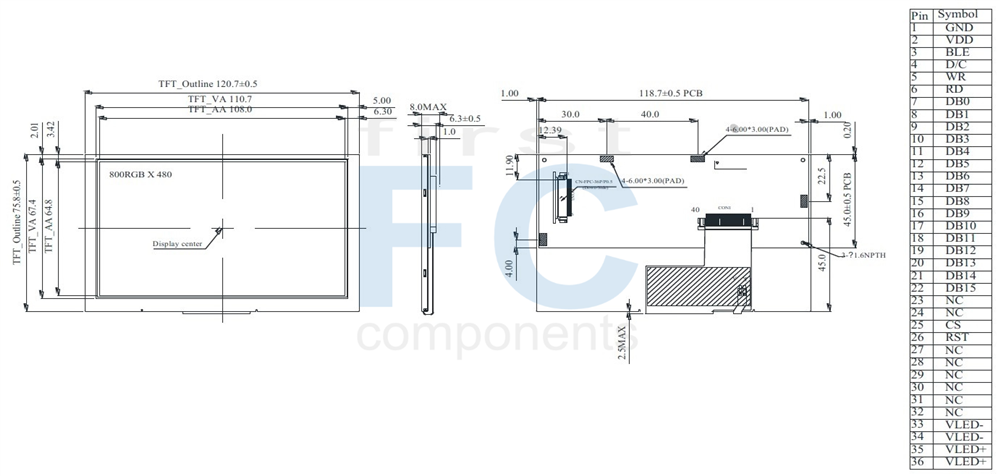

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	GND	System round pin of the IC. Connect to system ground.
2	VDD	Power Supply : +3.3V
3	BL_E	Backlight control signal , H: On \ L: Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7~14	DB0~DB7	Data bus
15~22	DB8~DB15	Data bus (When select 8bits mode, this pin is NC)
23~24	NC	No connection
25	CS	Chip select
26	RST	Hardware reset
27~32	NC	No connection
33~34	VLED-	VLED- for B/L LED inverter (GND)
35~36	VLED+	VLED+ for B/L LED inverter (+3.3V)

General Specifications

Item	Dimension	Unit
Size	5 inch TFT Display
Dot Matrix	800 × 3(RGB) × 480	dots
Module dimension	120.7 × 75.8 x 8.0 (Max)	mm
Active area	108.0 × 64.8	mm
Dot pitch	0.045 × 0.135	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Controller IC	SSD1963
Interface	Digital 8080 family MPU 8bit/16bit
Touch Panel	Without touch panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	—	3.0	3.1	3.3	V
Supply Current For LCM	IDD	—	—	150	230	mA

SKU: WF50-800480QD#000-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector

Price Breaks

Quantity

10+

Price

€49.40

€41.20

€35.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€49.40 excl tax

Overview
Specifications
Download
Contact Us

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	GND	System round pin of the IC. Connect to system ground.
2	VDD	Power Supply : +3.3V
3	BL_E	Backlight control signal , H: On \ L: Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7~14	DB0~DB7	Data bus
15~22	DB8~DB15	Data bus (When select 8bits mode, this pin is NC)
23~24	NC	No connection
25	CS	Chip select
26	RST	Hardware reset
27~32	NC	No connection
33~34	VLED-	VLED- for B/L LED inverter (GND)
35~36	VLED+	VLED+ for B/L LED inverter (+3.3V)

General Specifications

Item	Dimension	Unit
Size	5 inch TFT Display
Dot Matrix	800 × 3(RGB) × 480	dots
Module dimension	120.7 × 75.8 x 8.0 (Max)	mm
Active area	108.0 × 64.8	mm
Dot pitch	0.045 × 0.135	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Controller IC	SSD1963
Interface	Digital 8080 family MPU 8bit/16bit
Touch Panel	Without touch panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	—	3.0	3.1	3.3	V
Supply Current For LCM	IDD	—	—	150	230	mA

Products specifications

Brand	Winstar
Size	5"
Resolution	800x480
Active Area (mm)	108.00x64.80
Color	Full Color
Display Interface	MCU (Parallel)
Display IC	SSD1963
View Angle	TN
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	ZIF Connector
Pin Nr.	36
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred
