Pin

Symbol

Function

Remark

1

IF1

Input data format control

Note1

2

IF2

Input data format control

Note1

3

POL

Polarity Signal connect to VCOM driving circuit.

Note3

4

RESET

Hardware reset

5

SPENA

Chip select

Note2

6

SPCL

Serial Clock

Note2

7

SPDA

Serial Data

8

B0

Blue Data bit

9

B1

Blue Data bit

10

B2

Blue Data bit

11

B3

Blue Data bit

12

B4

Blue Data bit

13

B5

Blue Data bit

14

B6

Blue Data bit

15

B7

Blue Data bit

16

G0

Green Data bit

17

G1

Green Data bit

18

G2

Green Data bit

19

G3

Green Data bit

20

G4

Green Data bit

21

G5

Green Data bit

22

G6

Green Data bit

23

G7

Green Data bit

24

R0

Red Data bit

25

R1

Red Data bit

26

R2

Red Data bit

27

R3

Red Data bit

28

R4

Red Data bit

29

R5

Red Data bit

30

R6

Red Data bit

31

R7

Red Data bit

32

Hsync

Horizontal synchronous signal

33

Vsync

Vertical synchronous signal

34

Data CLK

Dot data clock

35

AVDD(analog)

Analog power: 4.5V~5.5V

36

AVDD(analog)

Analog power: 4.5V~5.5V

37

VCC(Digital)

Digital power: 3.2V~3.4V

38

VCC(Digital)

Digital power: 3.2V~3.4V

39

NPC

NTSC/PAL      mode      Auto       detection      result

H:NTSC/L:PAL

40

VGL

Gate off power

41

VGL

Gate off power

42

UD

Up/down selection

Note 5,6

43

VGH

Gate on power

44

LRC

Shift direction    of device    internal  shift    register

Note 5,6

45

GND

System ground pin of the IC.
Connect to system ground.

46

VCOM

VCOM driving input

Note3

47

VCOM

VCOM driving input

48

ENB

Signal to settle the horizontal display position

Note4

49

GND

System ground pin of the IC.
Connect to system ground.

50

GND

System ground pin of the IC.
Connect to system ground.

Item

Dimension

Unit

Size

5.7

inch

Dot Matrix

320 x RGBx240(TFT)

dots

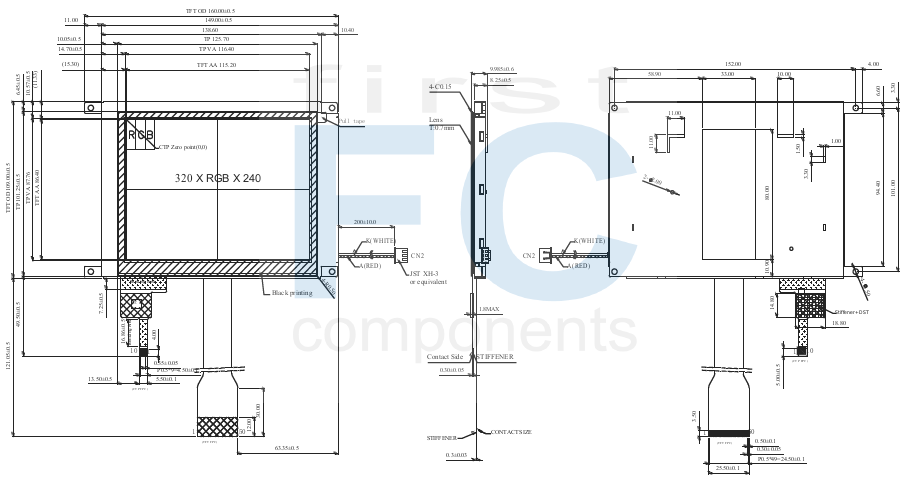

Module dimension

160(W) x 109(H) x 9.985 (D)

mm

Active area

115.2 x 86.40

mm

Dot pitch

0.12 x 0.36

mm

LCD type

TFT, Normally White, Transmissive

View Direction

12 o’clock

Gray Scale Inversion Direction

6 o’clock

TFT Interface

24-bit RGB

TFT Drive IC

HX8218+HX8615 or equivalent

Aspect Ratio

4:3

Backlight Type

LED, Normally White

CTP FW Version

0x07.0x00.0x00.0x00.0xA2.0x01.0x57.0x00

CTP IC

ILI2130 or equivalent

CTP Interface

I2C

CTP Resolution

16384*16384

With /Without TP

With CTP

Surface

Glare

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C

Item

Symbol

Min

Typ

Max

Unit

Remark

Supply Voltage For LCM

VCC

3.2

3.3

3.4

V

-

Supply Current For LCM

ICC

-

30

45

mA

Note1

Supply CTP

VDDT

3.1

3.3

3.5

V

ICTP

-

56

84

mA

Input High Volt.

VIH

0.7 VCC

-

VCC

V

-

Input Low Volt.

VIL

0

-

0.3 VCC

V

-

LCD Driving
Supply Voltage

VGH

15

16

17

V

-

VGL

-6

-5

-4

V

-

VCOMH

-

4.5

-

V

-

VCOML

-

-0.5

-

V

-

AVDD

4.5

5.0

5.5

V

-

Parameter

Symbol

Unit

Remark

LED current

-

-

140

-

mA

-

Power Consumption

-

1260

-

1470

mW

-

LED voltage

VBL+

9.0

-

10.5

V

Note 1

LED Life Time

-

-

50,000

-

Hr

Note 2,3,4
