WF70-1024600A7L#0S0-FC

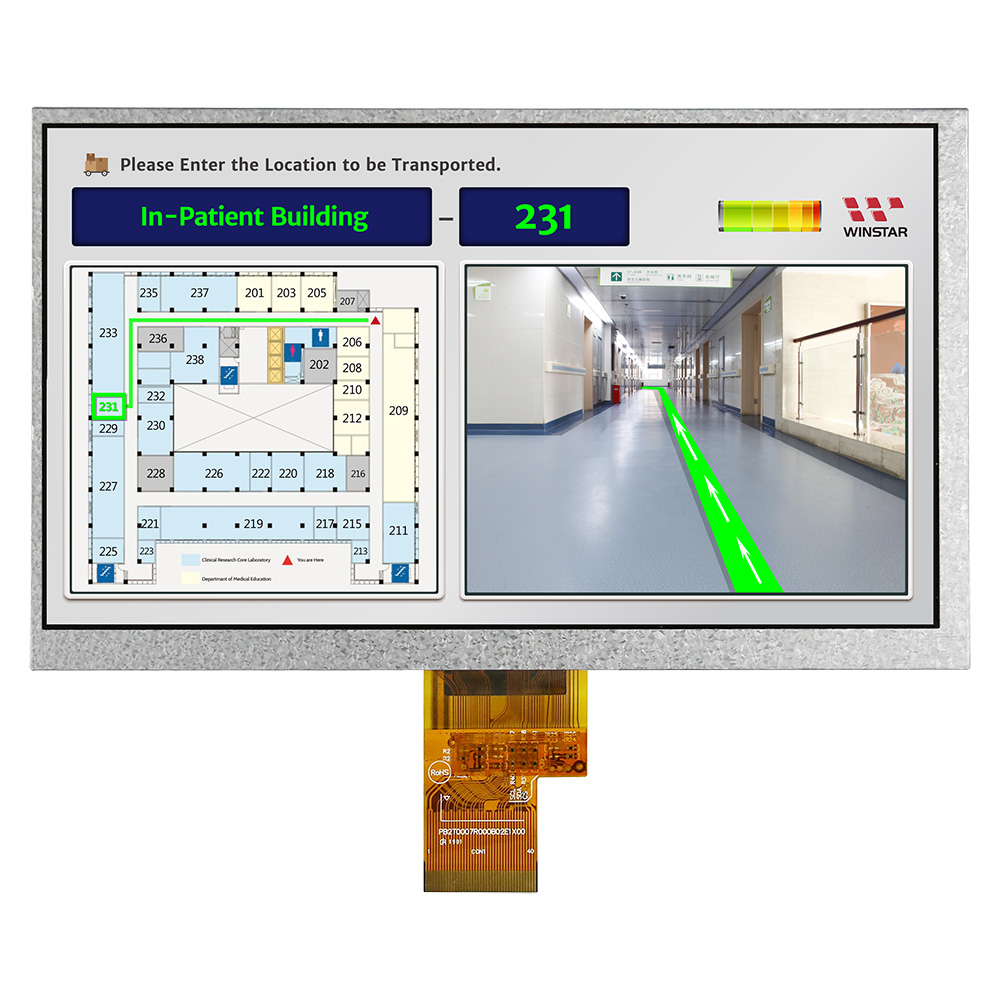

TFT 7'' 1024x600, LCD Module, Interface LVDS, High Brightness 1100cd/m², No touch

DESCRIPTION



Color TFT LCD with 1024x600 resolution, diagonal size 7 inch. This TFT LCD model is built in with EK79001HE and EK73215BCGA driver ICs. It supports LVDS interface; it’s available for Resistive Touch Screen (RTP) and Projected Capacitive Touch Screen (CTP) optional, as well as high brightness option. It is an alternative item to replace WF70BTIAHLNN0 which adopted CPT (Chunghwa Picture Tubes Ltd) EOL TFT pane: outline dimension, backlight, FPC pinout, interface, pin assignment, electrical characteristics and optical characteristics are all the same.

The power voltage (DVDD) is from 3.0V to 3.6V, typical value 3.3V. It is featured with Anti-Glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock, and aspect ratio 16:9, brightness 1100 nits. Operating temperatures from -20 ℃ to +70 ℃ and storage temperatures from -30 ℃ to +80 ℃.



DRAWING

7 1024x600  LVDS TFT Color LCD - WF70A7TIAHLNN0



SPECIFICATIONS



Interface

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2 VDD P Digital circuit
3 VDD P Digital circuit
4 NC --- No connection
5 Reset I Global reset pin
6 STBYB   I Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND P Ground
8 RXIN0- I Negative LVDS differential data input
9 RXIN0+ I Positive LVDS differential data input
10 GND P Ground
11 RXIN1- I Negative LVDS differential data input
12 RXIN1+ I Positive LVDS differential data input
13 GND P Ground
14 RXIN2- I Negative LVDS differential data input
15 RXIN2+ I Positive LVDS differential data input
16 GND P Ground
17 RXCLKIN- I Negative LVDS differential clock input
18 RXCLKIN+ I Positive LVDS differential clock input
19 GND P Ground
20 RXIN3- I Negative LVDS differential data input
21 RXIN3+ I Positive LVDS differential data input
22 GND P Ground
23 NC --- No connection
24 NC --- No connection
25 GND P Ground
26 NC --- No connection
27 DIMO O Backlight CABC controller signal output
28 SELB I 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD P Power for Analog Circuit
30 GND P Ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 L/R I Horizontal inversion
34 U/D I Vertical inversion
35 VGL P Negative power for TFT
36 GND P Ground
37 GND P Ground
38 VGH P Positive power for TFT
39 LED+ P LED Anode
40 LED+ P LED Anode
I:input , O:output, P:power



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 1024 x RGBx600(TFT) dots
Module dimension 164.8(W) x 99.8(H) x 5.65(D) mm
Active area 154.2144 x 85.92 mm
Dot pitch 0.1506 x 0.1432 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Driver IC EK79001HE + EK73215BCGA
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Interface LVDS
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage DVDD 3.0 3.3 3.6 V
AVDD 9.4 9.6 9.8 V
VGH 17 18 19 V
VGL -6.6 -6.0 -5.4 V
Input signal voltage VCOM 3.1 3.3 3.6 V
Input logic high voltage VIH 0.7 DVDD - DVDD V
Input logic low voltage VIL 0 - 0.3 DVDD V


SKU: WF70-1024600A7L#0S0-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€41.40
€34.50
€32.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€41.40 excl tax

DESCRIPTION



Color TFT LCD with 1024x600 resolution, diagonal size 7 inch. This TFT LCD model is built in with EK79001HE and EK73215BCGA driver ICs. It supports LVDS interface; it’s available for Resistive Touch Screen (RTP) and Projected Capacitive Touch Screen (CTP) optional, as well as high brightness option. It is an alternative item to replace WF70BTIAHLNN0 which adopted CPT (Chunghwa Picture Tubes Ltd) EOL TFT pane: outline dimension, backlight, FPC pinout, interface, pin assignment, electrical characteristics and optical characteristics are all the same.

The power voltage (DVDD) is from 3.0V to 3.6V, typical value 3.3V. It is featured with Anti-Glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock, and aspect ratio 16:9, brightness 1100 nits. Operating temperatures from -20 ℃ to +70 ℃ and storage temperatures from -30 ℃ to +80 ℃.



DRAWING

7 1024x600  LVDS TFT Color LCD - WF70A7TIAHLNN0



SPECIFICATIONS



Interface

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2 VDD P Digital circuit
3 VDD P Digital circuit
4 NC --- No connection
5 Reset I Global reset pin
6 STBYB   I Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND P Ground
8 RXIN0- I Negative LVDS differential data input
9 RXIN0+ I Positive LVDS differential data input
10 GND P Ground
11 RXIN1- I Negative LVDS differential data input
12 RXIN1+ I Positive LVDS differential data input
13 GND P Ground
14 RXIN2- I Negative LVDS differential data input
15 RXIN2+ I Positive LVDS differential data input
16 GND P Ground
17 RXCLKIN- I Negative LVDS differential clock input
18 RXCLKIN+ I Positive LVDS differential clock input
19 GND P Ground
20 RXIN3- I Negative LVDS differential data input
21 RXIN3+ I Positive LVDS differential data input
22 GND P Ground
23 NC --- No connection
24 NC --- No connection
25 GND P Ground
26 NC --- No connection
27 DIMO O Backlight CABC controller signal output
28 SELB I 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD P Power for Analog Circuit
30 GND P Ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 L/R I Horizontal inversion
34 U/D I Vertical inversion
35 VGL P Negative power for TFT
36 GND P Ground
37 GND P Ground
38 VGH P Positive power for TFT
39 LED+ P LED Anode
40 LED+ P LED Anode
I:input , O:output, P:power



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 1024 x RGBx600(TFT) dots
Module dimension 164.8(W) x 99.8(H) x 5.65(D) mm
Active area 154.2144 x 85.92 mm
Dot pitch 0.1506 x 0.1432 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Driver IC EK79001HE + EK73215BCGA
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Interface LVDS
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage DVDD 3.0 3.3 3.6 V
AVDD 9.4 9.6 9.8 V
VGH 17 18 19 V
VGL -6.6 -6.0 -5.4 V
Input signal voltage VCOM 3.1 3.3 3.6 V
Input logic high voltage VIH 0.7 DVDD - DVDD V
Input logic low voltage VIL 0 - 0.3 DVDD V


Products specifications
Brand Winstar
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Interface LVDS
Built-in Controller No
View Angle TN
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
