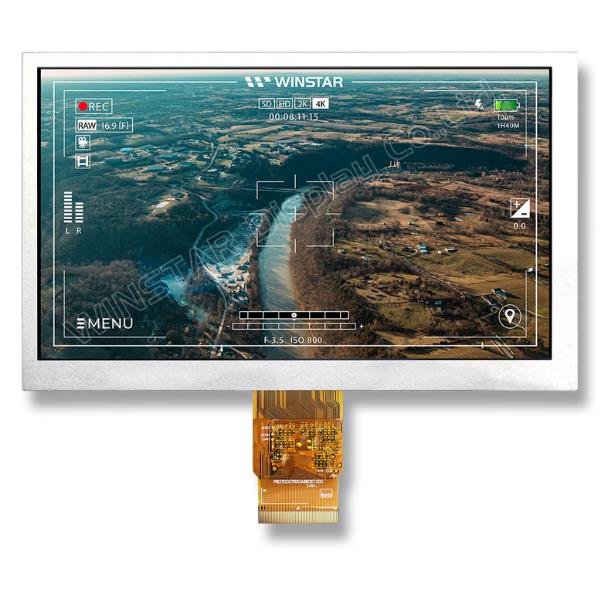

WF70-1024600A8D#0SP0-FC

TFT 7" 1024x600 LCD Panel, Interface RGB, High Brightness 1000cd/m², Wide View Angle (IPS), No touch

DESCRIPTION

WF70-1024600A8D#0SP0-FC TFT LCD Display Module delivers exceptional performance across diverse applications. This 7-inch module features a high-resolution 1024 x 600 pixel display and an active area of 154.2144 x 85.92 mm, ensuring clear and detailed visuals.

The WF70-1024600A8D#0SP0-FC utilizes TFT technology with a Normally Black, Transmissive LCD type and an IPS panel that provides wide 85/85/85/85-degree viewing angles, ensuring a vivid display experience. Its 16:9 aspect ratio, paired with a high brightness of 1100 cd/m2 and a contrast ratio of 800:1, enhances visibility in various lighting conditions.

With EK79001HK-S + EK73215BCGA driver ICs and a 24-bit RGB interface, this module seamlessly integrates into UAV controllers, industrial equipment, medical devices, smart home systems, and multifunctional office equipment.

The WF70-1024600A8D#0SP0-FC is designed with a LED backlight (Normally White) and anti-glare surface, ensuring optimal visibility and durability. Its power-efficient operation, ranging from 3.0 V to 3.6 V (typical value: 3.3V), enhances its suitability for diverse environments.

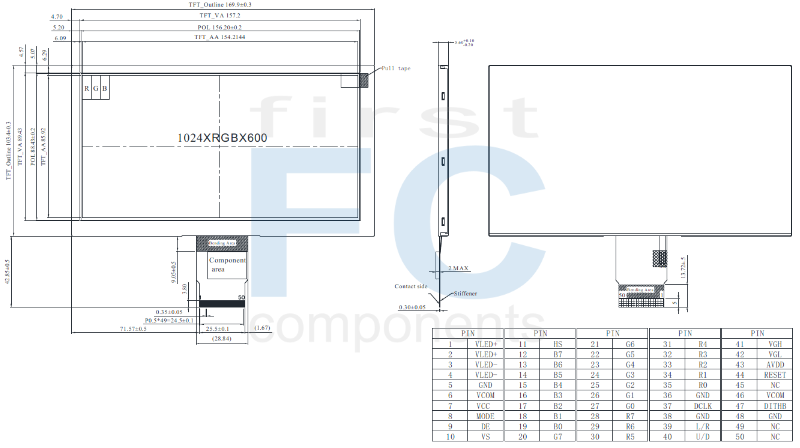

DRAWING

SPECIFICATIONS

Interface

Pin No.	Symbol	Function
1	VLED+	LED Anode
2	VLED+	LED Anode
3	VLED-	LED Cathode
4	VLED-	LED Cathode
5	GND	Ground
6	VCOM	Common voltage
7	VCC	Power for Digital Circuit
8	MODE	DE/SYNC mode select
9	DE	Data Input Enable (DEN)
10	VS	Vertical Sync Input (VSD)
11	HS	Horizontal Sync Input (HSD)
12	B7	Blue data(MSB)
13	B6	Blue data
14	B5	Blue data
15	B4	Blue data
16	B3	Blue data
17	B2	Blue data
18	B1	Blue data
19	B0	Blue data(LSB)
20	G7	Green data(MSB)
21	G6	Green data
22	G5	Green data
23	G4	Green data
24	G3	Green data
25	G2	Green data
26	G1	Green data
27	G0	Green data(LSB)
28	R7	Red data(MSB)
29	R6	Red data
30	R5	Red data
31	R4	Red data
32	R3	Red data
33	R2	Red data
34	R1	Red data
35	R0	Red data(LSB)
36	GND	Power Ground
37	DCLK	Sample clock (CLK)
38	GND	Power Ground
39	L/R	Left / right selection
40	U/D	Up/down selection
41	VGH	Gate ON Voltage
42	VGL	Gate OFF Voltage
43	AVDD	Power for Analog Circuit
44	RESET	Global reset pin.
45	NC	No connection
46	VCOM	Common Voltage
47	DITHB	Dithering function
48	GND	Power Ground
49	NC	No connection
50	NC	No connection

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	1024 x RGBx600(TFT)	dots
Module dimension	169.9(W) x 103.4(H) x 5.6(D)	mm
Active area	154.2144 x 85.92	mm
Pixel pitch	0.1506 x 0.1432	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	85/85/85/85
Aspect Ratio	16:9
Driver IC	EK79001HK-S + EK73215BCGA
Interface	24bit RGB
Backlight Type	LED, Normally White
Touch Panel	Without Touch Panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power voltage	VCC	3.0	3.3	3.6	V
Analog Power	AVDD	8.9	9.0	9.1	V
TFT Gate ON Voltage	VGH	17	18	19	V
TFT Gate OFF Voltage	VGL	-6.5	-6.0	-5.5	V
TFT Common Voltage	Vcom	3.0	3.15	3.3	V
Current for Driver	IDD	-	85	130	mA
Power Current	IAVDD	-	20	-	mA
TFT Gate ON Current	IVGH	-	1	-	mA
TFT Gate OFF Current	IVGL	-	1	-	mA
TFT Common Current	IVCOM	-	1	-	mA

SKU: WF70-1024600A8D#0SP0-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€39.80

€33.20

€26.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005
