WF70-1024600A8L#0P52-FC

Picture of WF70-1024600A8L#0P52-FC Picture of WF70-1024600A8L#0P52-FC
TFT 7'' 1024x600, LCD Module, Interface LVDS, 450cd/m², Wide View Angle (IPS), Capacitive Hover Touch

DESCRIPTION

7 inch IPS TFT LCD module, with Capacitive Hover Touch Panel, resolution 1024x600 pixels. It is built in with ST5021 and ST5651 driver ICs, it supports LVDS interface, aspect ratio 16:9,  normally black, transmissive LCD type.

Display Touch Technology > HOVER TOUCH

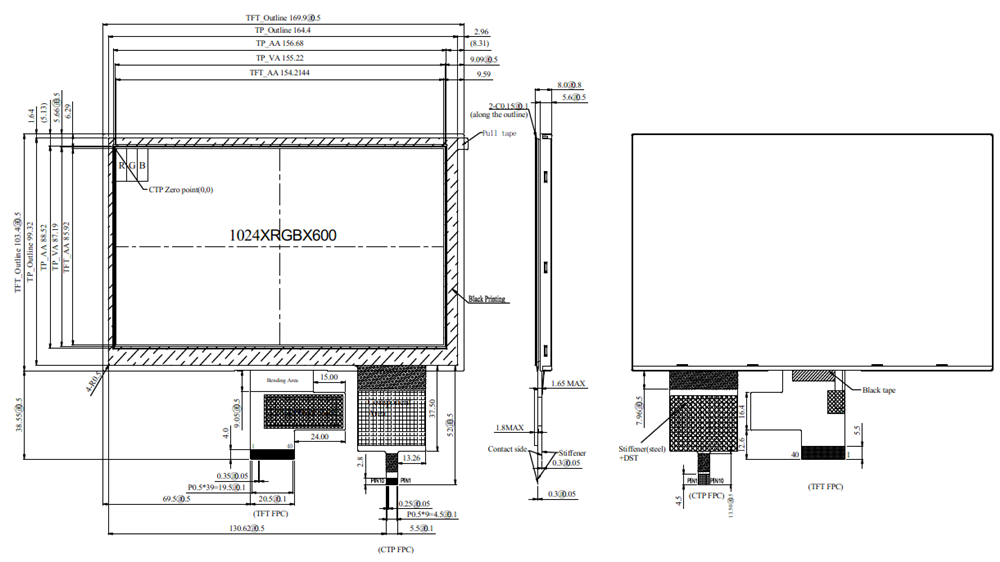

DRAWING

SPECIFICATIONS

Interface

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2 VDD P Digital circuit
3 VDD P Digital circuit
4 NC --- No connection
5 RESET I Global reset pin
6 STBYB   I Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND P Ground
8 RXIN0- I Negative LVDS differential data input
9 RXIN0+ I Positive LVDS differential data input
10 GND P Ground
11 RXIN1- I Negative LVDS differential data input
12 RXIN1+ I Positive LVDS differential data input
13 GND P Ground
14 RXIN2- I Negative LVDS differential data input
15 RXIN2+ I Positive LVDS differential data input
16 GND P Ground
17 RXCLKIN- I Negative LVDS differential clock input
18 RXCLKIN+ I Positive LVDS differential clock input
19 GND P Ground
20 RXIN3- I Negative LVDS differential data input
21 RXIN3+ I Positive LVDS differential data input
22 GND P Ground
23 NC --- No connection
24 NC --- No connection
25 GND P Ground
26 NC --- No connection
27 NC --- No connection
28 SELB I 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD P Power for Analog Circuit
30 GND P Ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 L/R I Horizontal inversion
34 U/D I Vertical inversion
35 VGL P Negative power for TFT
36 NC --- No connection
37 NC --- No connection
38 VGH P Positive power for TFT
39 LED+ P LED Anode
40 LED+ P LED Anode

I:input ,O:output,P:power



SKU: WF70-1024600A8L#0P52-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€98.80
€88.90
€75.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€98.80 excl tax

DESCRIPTION

7 inch IPS TFT LCD module, with Capacitive Hover Touch Panel, resolution 1024x600 pixels. It is built in with ST5021 and ST5651 driver ICs, it supports LVDS interface, aspect ratio 16:9,  normally black, transmissive LCD type.

Display Touch Technology > HOVER TOUCH



DRAWING

SPECIFICATIONS

Interface

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2 VDD P Digital circuit
3 VDD P Digital circuit
4 NC --- No connection
5 RESET I Global reset pin
6 STBYB   I Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND P Ground
8 RXIN0- I Negative LVDS differential data input
9 RXIN0+ I Positive LVDS differential data input
10 GND P Ground
11 RXIN1- I Negative LVDS differential data input
12 RXIN1+ I Positive LVDS differential data input
13 GND P Ground
14 RXIN2- I Negative LVDS differential data input
15 RXIN2+ I Positive LVDS differential data input
16 GND P Ground
17 RXCLKIN- I Negative LVDS differential clock input
18 RXCLKIN+ I Positive LVDS differential clock input
19 GND P Ground
20 RXIN3- I Negative LVDS differential data input
21 RXIN3+ I Positive LVDS differential data input
22 GND P Ground
23 NC --- No connection
24 NC --- No connection
25 GND P Ground
26 NC --- No connection
27 NC --- No connection
28 SELB I 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD P Power for Analog Circuit
30 GND P Ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 L/R I Horizontal inversion
34 U/D I Vertical inversion
35 VGL P Negative power for TFT
36 NC --- No connection
37 NC --- No connection
38 VGH P Positive power for TFT
39 LED+ P LED Anode
40 LED+ P LED Anode

I:input ,O:output,P:power



Products specifications
Brand Winstar
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive (Hover touch)
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive (Hover touch)
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
