WF70-12001920C6M#0P0-FC

Picture of WF70-12001920C6M#0P0-FC Picture of WF70-12001920C6M#0P0-FC

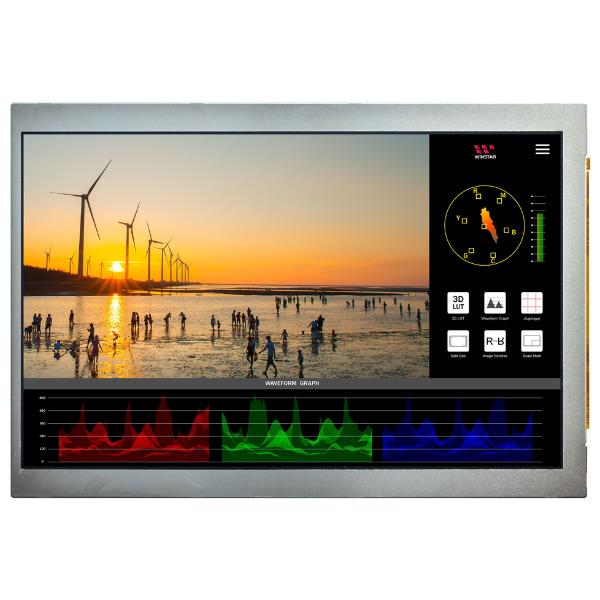

TFT 7" 1200x1920 LCD Panel, Interface MIPI IC HX8279-D01*2 Cascade, 500cd/m², Wide View Angle (IPS), No Touch

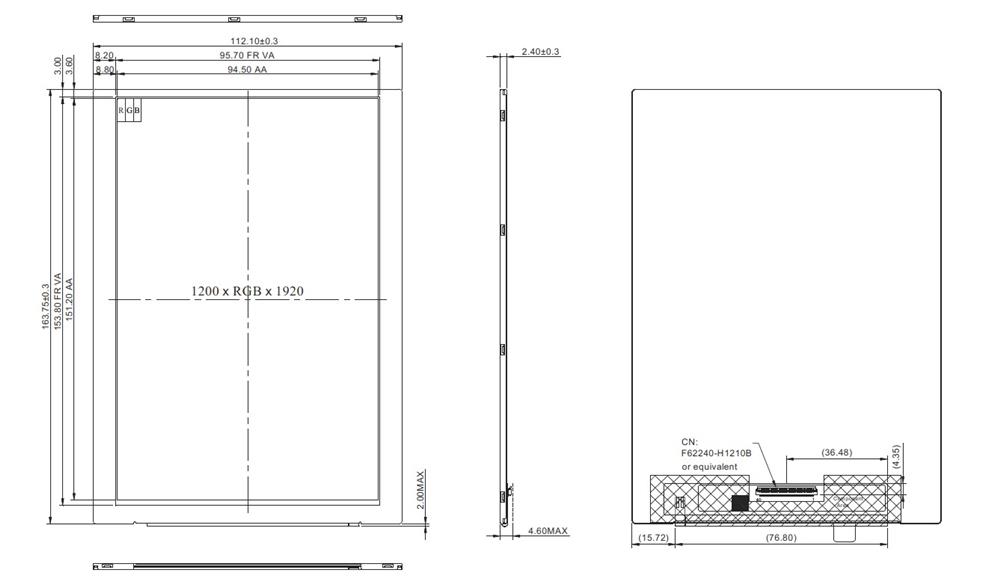

DRAWING

SKU: WF70-12001920C6M#0P0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€109.70
€104.30
€86.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€109.70 excl tax

DRAWING

Products specifications
Brand Winstar
Size 7"
Resolution 1200x1920
Active Area (mm) 94.5x151.2
Color Full Color
Display Interface MIPI
Display IC HX8279-D01*2 Cascade
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 1200x1920
Active Area (mm) 94.5x151.2
Color Full Color
Display Interface MIPI
Display IC HX8279-D01*2 Cascade
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
