WF70-800480A2816D#004-FC

TFT 7'' 800x480, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 400cd/m², Frame, No touch panel (LC)

DESCRIPTION

The 7.0 inch TFT LCD (resolution 800x480) is built in with SSD1963 controller board plus a 36 pin-out connector on board. This model is available in 8080 family MPU 8bit/16bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is with the module dimension of 165x100 mm and AA size of 154.08 x 85.92 mm.



SPECIFICATIONS

Interface

PinSymbolFunction
1 GND System ground pin of the IC . Connect to system ground.
2 VDD Power Supply : +3.3V
3 BLE Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23~24 NC No connect
25 CS Chip select
26 RST Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29~32 NC No connect
33~34 VLED- Power for LED Driver IC(GND)
35~36 VLED+ Power for LED Driver IC(+5V)



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



SKU: WF70-800480A2816D#004-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€65.80
€59.30
€50.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€65.80 excl tax

DESCRIPTION

The 7.0 inch TFT LCD (resolution 800x480) is built in with SSD1963 controller board plus a 36 pin-out connector on board. This model is available in 8080 family MPU 8bit/16bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is with the module dimension of 165x100 mm and AA size of 154.08 x 85.92 mm.



SPECIFICATIONS

Interface

PinSymbolFunction
1 GND System ground pin of the IC . Connect to system ground.
2 VDD Power Supply : +3.3V
3 BLE Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23~24 NC No connect
25 CS Chip select
26 RST Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29~32 NC No connect
33~34 VLED- Power for LED Driver IC(GND)
35~36 VLED+ Power for LED Driver IC(+5V)



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Related products
Picture of SML2CD36X92BDX6BL-P0.5-S4

SML2CD36X92BDX6BL-P0.5-S4

FFC Cable 36 pins, 0.5mm pitch, 100mm lenght, Same side
From €3.40 excl tax
Picture of MOLEX_54104-3633

MOLEX_54104-3633

ZIF Connector 36 pins, 0.5mm pitch, Top contact
From €1.90 excl tax
Picture of MOLEX_54132-3633

MOLEX_54132-3633

ZIF Connector 36 pins, 0.5mm pitch, Bottom contact
From €1.80 excl tax
Picture of TST0007R0K1241XXXX00

TST0007R0K1241XXXX00

Resistive Touch panel 7'', O.D. 165.00x99.00mm, 4w, Film-Glass structure, FPC per ZIF Connector (suitable for WST WFA2/B/B7/G/P/Q/R/Y families)
From €12.80 excl tax
Picture of TST0007R0G4111XXXX06

TST0007R0G4111XXXX06

Capacitive (GG) Touch panel 7'', O.D. 164.40x99.45mm, I2C interface (ILI2130 IC), Glass-Glass structure, FPC per ZIF Connector (suitable for WF70G/A2/A7/A8/B7/M/P/Q/Y families), Cover glass thickness 0.7mm
From €23.80 excl tax
Picture of TST0007R0G4111XXXX07

TST0007R0G4111XXXX07

Capacitive (GG) Touch panel 7'', O.D. 164.40x99.45mm, I2C interface (ILI2130 IC), Glass-Glass structure, FPC per ZIF Connector (suitable for WF70G/A2/A7/A8/B7/M/P/Q/Y families), Cover glass thickness 1.8mm
From €25.90 excl tax

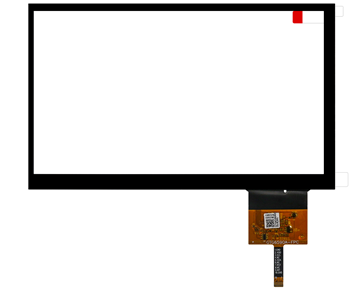

Picture of TST0007R0G4111XXXX08
