WF70-800480A2H#0S0-FC

TFT 7'' 800x480, HDMI Interface HDMI IC TFP401, High Brightness 900cd/m², No touch (no connectors)

DESCRIPTION



7 inch Panel TFT-LCD module which supports HDMI (Only DVI) signal; its resolution is made of WVGA 800x480 dots. High Brightness version. It has a control board which supports HDMI.

The module is built in with TFP401 Controller IC convert signal to support HDMI (Only DVI) signal interface. The supply voltage for LCM (VDD) is typical value 5V. It is featured with Anti-Glare surface glass, view direction 12 o'clock, gray scale inversion 6 o'clock, aspect ratio 16:9.

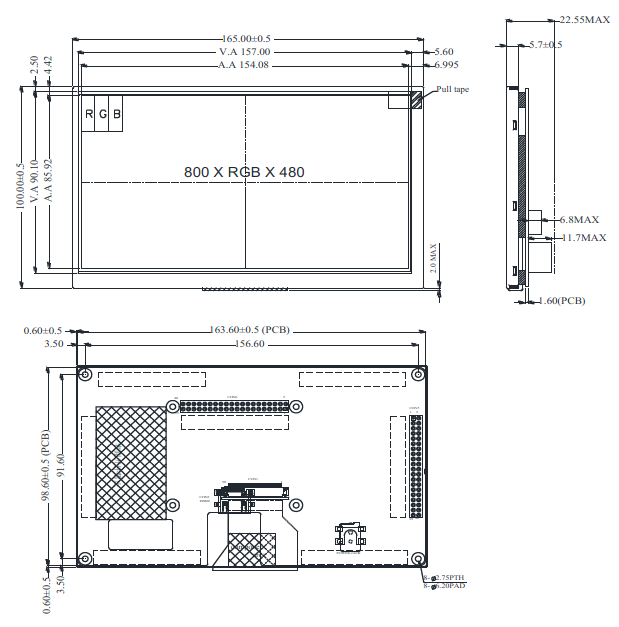

DRAWING



SPECIFICATIONS


Interface

3. HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power

5. POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 165.0(W) × 100(H) mm
Active area 154.08 × 85.92 mm
Dot pitch 0.0642 × 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Controller IC TFP401 or equivalent
Backlight Type LED, Normally White
TFT Interface Support HDMI Connector (Only DVI Signal)
Touch Screen No
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD 4.9 5 5.1 V
Supply Current For LCM IDD 760 1140 mA
LED life time 50,000 Hr
SKU: WF70-800480A2H#0S0-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€53.70
€47.40
€43.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€53.70 excl tax

DESCRIPTION



7 inch Panel TFT-LCD module which supports HDMI (Only DVI) signal; its resolution is made of WVGA 800x480 dots. High Brightness version. It has a control board which supports HDMI.

The module is built in with TFP401 Controller IC convert signal to support HDMI (Only DVI) signal interface. The supply voltage for LCM (VDD) is typical value 5V. It is featured with Anti-Glare surface glass, view direction 12 o'clock, gray scale inversion 6 o'clock, aspect ratio 16:9.



DRAWING



SPECIFICATIONS


Interface

3. HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power

5. POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 165.0(W) × 100(H) mm
Active area 154.08 × 85.92 mm
Dot pitch 0.0642 × 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Controller IC TFP401 or equivalent
Backlight Type LED, Normally White
TFT Interface Support HDMI Connector (Only DVI Signal)
Touch Screen No
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD 4.9 5 5.1 V
Supply Current For LCM IDD 760 1140 mA
LED life time 50,000 Hr
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Interface HDMI
Built-in Controller TFP401
View Angle 12H
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Pin Nr. -
Pin Pitch -
Preferred - Not Preferred Preferred
