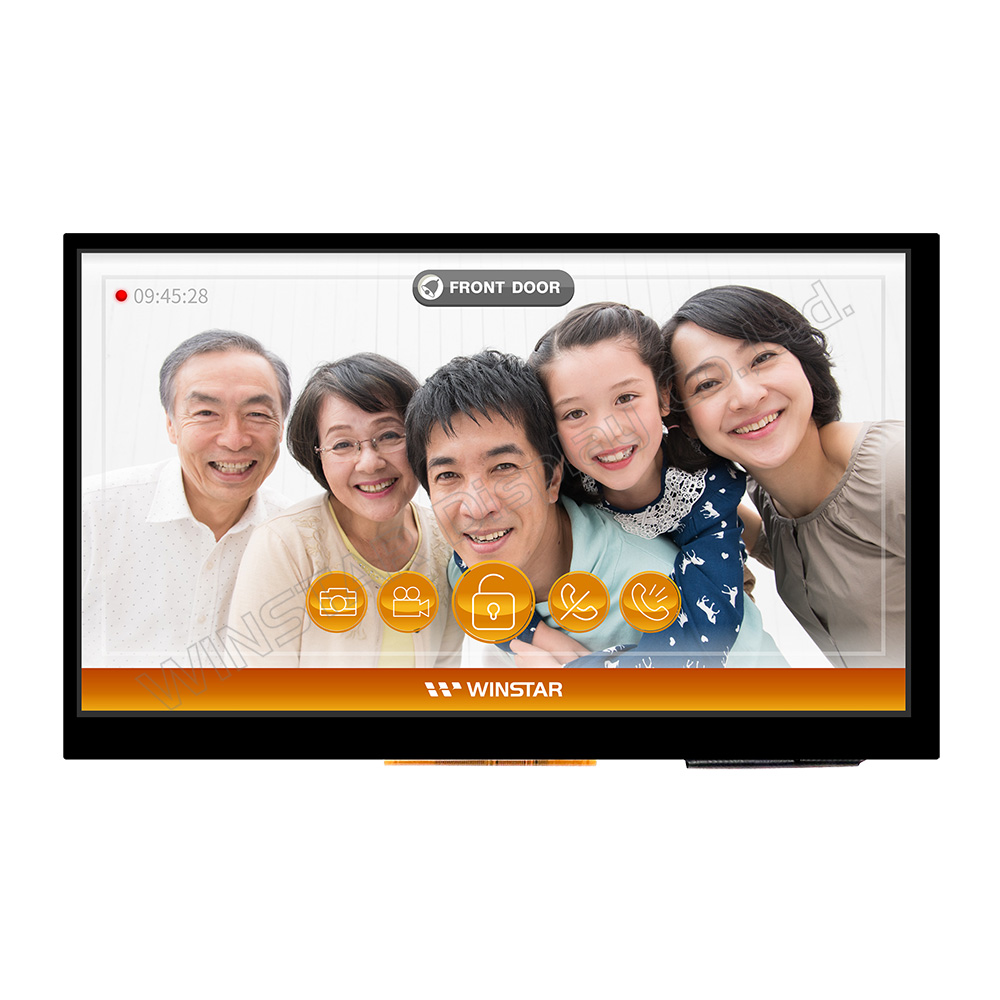

7 inch supporting HDMI (Only DVI) signal TFT-LCD module with Projected Capacitive Touch Panel (PCAP); it’s made of WVGA 800x480 resolution. It has a control board which supports HDMI signal interface and a 40-pin GPIO connector on board; it is designed to make Raspberry Pi usage become easily. This display has a USB interface Capacitive Touch Screen overlay on TFT panel. We designed a connector (P/N WWHDMI-00#) and USB cable for option, the customers can use it to connect the module with your Raspberry Pi directly. Please note, this part no. does not include any HDMI connector or USB cable.
The module is built in with TFP401 Controller IC convert signal to support HDMI (Only DVI) signal interface, as to the PCAP (CTP) IC is FT5426, it supports USB interface. The supply voltage for LCM (VDD) is typical value 5V. It is featured with Glare surface glass, view direction 12 o'clock, gray scale inversion 6 o'clock.
For quantities above 25 pcs pls send your enquiry to firstname.lastname@example.org or call +39 0332 1888005
