WF70-800480C4D#005-FC

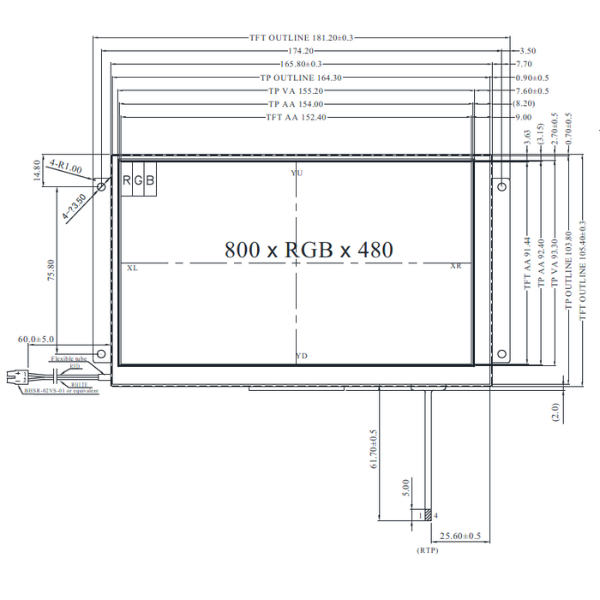

Picture of WF70-800480C4D#005-FC Picture of WF70-800480C4D#005-FC
TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 350 cd/m², Frame, Resistive Touch Panel

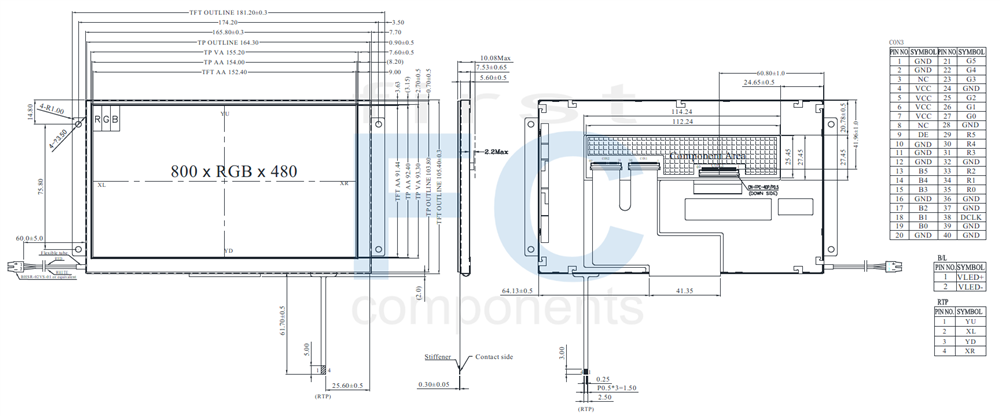

DRAWING

SPECIFICATIONS

Interface

PinSymbolFunction
1 GND Power ground
2 GND Power ground
3 NC Not Connect
4 VCC Power Supply for Digital Circuit
5 VCC Power Supply for Digital Circuit
6 VCC Power Supply for Digital Circuit
7 VCC Power Supply for Digital Circuit
8 NC Not Connect
9 DE Data Enable
10 GND Power ground
11 GND Power ground
12 GND Power ground
13 B5 Blue data 5 (MSB)
14 B4 Blue data 4
15 B3 Blue data 3
16 GND Power ground
17 B2 Blue data 2
18 B1 Blue data 1
19 B0 Blue data 0 (LSB)
20 GND Power ground
21 G5 Green data 5 (MSB)
22 G4 Green data 4
23 G3 Green data 3
24 GND Power ground
25 G2 Green data 2
26 G1 Green data 1
27 G0 Green data 0 (LSB)
28 GND Power ground
29 R5 Red data 5 (MSB)
30 R4 Red data 4
31 R3 Red data 3
32 GND Power ground
33 R2 Red data 2
34 R1 Red data 1
35 R0 Red data 0 (LSB)
36 GND Power ground
37 GND Power ground
38 DCLK Clock Signals; Latch Data at the Falling Edge (CLK)
39 GND Power ground
40 GND Power ground



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800×RGB×480  (TFT) dots
Module dimension 181.2 (W)×105.4 (H)×10.08 (MAX)(D) mm
Active area 152.4×91.44 mm
Pixel Pitch 0.1905×0.1905 mm
LCD type TFT, Normally White, Transmissive
View Direction  12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
TFT Interface 18-bit RGB
With/Without TP With RTP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
Supply Current For LCM ICC Black Pattern - 140 210 mA



SKU: WF70-800480C4D#005-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€78.20
€70.40
€57.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€78.20 excl tax

DRAWING

SPECIFICATIONS

Interface

PinSymbolFunction
1 GND Power ground
2 GND Power ground
3 NC Not Connect
4 VCC Power Supply for Digital Circuit
5 VCC Power Supply for Digital Circuit
6 VCC Power Supply for Digital Circuit
7 VCC Power Supply for Digital Circuit
8 NC Not Connect
9 DE Data Enable
10 GND Power ground
11 GND Power ground
12 GND Power ground
13 B5 Blue data 5 (MSB)
14 B4 Blue data 4
15 B3 Blue data 3
16 GND Power ground
17 B2 Blue data 2
18 B1 Blue data 1
19 B0 Blue data 0 (LSB)
20 GND Power ground
21 G5 Green data 5 (MSB)
22 G4 Green data 4
23 G3 Green data 3
24 GND Power ground
25 G2 Green data 2
26 G1 Green data 1
27 G0 Green data 0 (LSB)
28 GND Power ground
29 R5 Red data 5 (MSB)
30 R4 Red data 4
31 R3 Red data 3
32 GND Power ground
33 R2 Red data 2
34 R1 Red data 1
35 R0 Red data 0 (LSB)
36 GND Power ground
37 GND Power ground
38 DCLK Clock Signals; Latch Data at the Falling Edge (CLK)
39 GND Power ground
40 GND Power ground



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800×RGB×480  (TFT) dots
Module dimension 181.2 (W)×105.4 (H)×10.08 (MAX)(D) mm
Active area 152.4×91.44 mm
Pixel Pitch 0.1905×0.1905 mm
LCD type TFT, Normally White, Transmissive
View Direction  12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
TFT Interface 18-bit RGB
With/Without TP With RTP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
Supply Current For LCM ICC Black Pattern - 140 210 mA



Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Related products
Picture of WF70-800480A6D#005-FC

WF70-800480A6D#005-FC

TFT 7" 8004x80 LCD Panel, Interface RGB (40pin), 400cd/m² Square pixels, Frame, Resistive touch panel (Replacement Winstar family WF70H)
From €65.00 excl tax

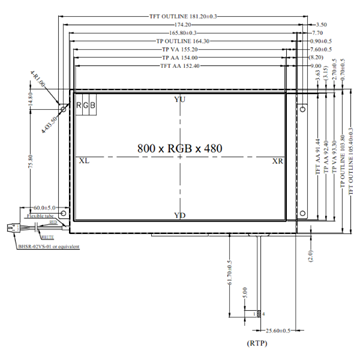

Picture of WF70-800480D2D#0P5-FC
