WF70-800480D2D#0SPW0-FC

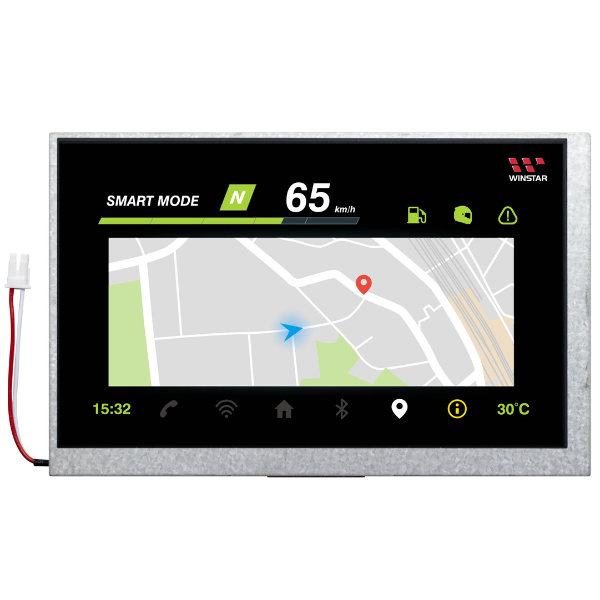

Picture of WF70-800480D2D#0SPW0-FC Picture of WF70-800480D2D#0SPW0-FC
TFT 7" 800x480 LCD Panel, Interface RGB (40pin), Super High Brightness 1250cd/m², Wide View Angle (IPS), Wide Temperature, No touch

DESCRIPTION

WF70-800480D2D#0SPW0-FC is a cell product of 7” color TFT-LCD (Thin Film Transistor Liquid Crystal Display), which is 15:9 aspect ratio panels foe the high end car application.  The 7” screen produces a high resolution image that is composed of 384,000 (800x480) pixel elements in a stripe arrangement.



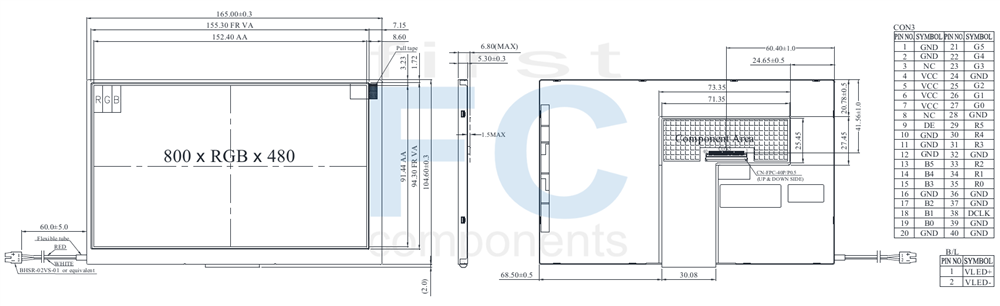

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 GND Power Ground
2 GND Power Ground
3 NC Not Connect
4 VCC Power Supply for Digital Circuit
5 VCC Power Supply for Digital Circuit
6 VCC Power Supply for Digital Circuit
7 VCC Power Supply for Digital Circuit
8 NC Not Connect
9 DE Data Enable
10 GND Power Ground
11 GND Power Ground
12 GND Power Ground
13 B5 Blue Data 5 (MSB)
14 B4 Blue Data 4
15 B3 Blue Data 3
16 GND Power Ground
17 B2 Blue Data 2
18 B1 Blue Data 1
19 B0 Blue Data 0 (LSB)
20 GND Power Ground
21 G5 Green Data 5 (MSB)
22 G4 Green Data 4
23 G3 Green Data 3
24 GND Power Ground
25 G2 Green Data 2
26 G1 Green Data 1
27 G0 Green Data 0 (LSB)
28 GND Power Ground
29 R5 Red Data 5 (MSB)
30 R4 Red Data 4
31 R3 Red Data 3
32 GND Power Ground
33 R2 Red Data 2
34 R1 Red Data 1
35 R0 Red Data 0 (LSB)
36 GND Power Ground
37 GND Power Ground
38 DCLK Clock Signals; Latch Data at the Falling Edge (CLK)
39 GND Power Ground
40 GND Power Ground



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 165.0(W) × 104.6 (H) × 6.8 (MAX)(D) mm
Active area 152.4 × 91.44 mm
Pixel pitch 0.1905 × 0.1905 mm
LCD type TFT, Normally Black, Transmissive
View Angle 85/85/85/85
TFT IC RM53010+RM57410 or Equivalent
Aspect Ratio 15:9
Backlight Type LED, Normally White
TFT Interface 18-bit RGB
With/Without TP Without TP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating Conditions

 SymbolConditionMin.Typ.Max.
Supply Voltage for LCM VCC - 2.9 3.3 3.6 V
Supply Current for LCM ICC Black Pattern - 85 130 mA

SKU: WF70-800480D2D#0SPW0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€46.20
€41.60
€33.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€46.20 excl tax

DESCRIPTION

WF70-800480D2D#0SPW0-FC is a cell product of 7” color TFT-LCD (Thin Film Transistor Liquid Crystal Display), which is 15:9 aspect ratio panels foe the high end car application.  The 7” screen produces a high resolution image that is composed of 384,000 (800x480) pixel elements in a stripe arrangement.



DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 GND Power Ground
2 GND Power Ground
3 NC Not Connect
4 VCC Power Supply for Digital Circuit
5 VCC Power Supply for Digital Circuit
6 VCC Power Supply for Digital Circuit
7 VCC Power Supply for Digital Circuit
8 NC Not Connect
9 DE Data Enable
10 GND Power Ground
11 GND Power Ground
12 GND Power Ground
13 B5 Blue Data 5 (MSB)
14 B4 Blue Data 4
15 B3 Blue Data 3
16 GND Power Ground
17 B2 Blue Data 2
18 B1 Blue Data 1
19 B0 Blue Data 0 (LSB)
20 GND Power Ground
21 G5 Green Data 5 (MSB)
22 G4 Green Data 4
23 G3 Green Data 3
24 GND Power Ground
25 G2 Green Data 2
26 G1 Green Data 1
27 G0 Green Data 0 (LSB)
28 GND Power Ground
29 R5 Red Data 5 (MSB)
30 R4 Red Data 4
31 R3 Red Data 3
32 GND Power Ground
33 R2 Red Data 2
34 R1 Red Data 1
35 R0 Red Data 0 (LSB)
36 GND Power Ground
37 GND Power Ground
38 DCLK Clock Signals; Latch Data at the Falling Edge (CLK)
39 GND Power Ground
40 GND Power Ground



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 165.0(W) × 104.6 (H) × 6.8 (MAX)(D) mm
Active area 152.4 × 91.44 mm
Pixel pitch 0.1905 × 0.1905 mm
LCD type TFT, Normally Black, Transmissive
View Angle 85/85/85/85
TFT IC RM53010+RM57410 or Equivalent
Aspect Ratio 15:9
Backlight Type LED, Normally White
TFT Interface 18-bit RGB
With/Without TP Without TP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating Conditions

 SymbolConditionMin.Typ.Max.
Supply Voltage for LCM VCC - 2.9 3.3 3.6 V
Supply Current for LCM ICC Black Pattern - 85 130 mA

Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable Super High >1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable Super High >1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Related products

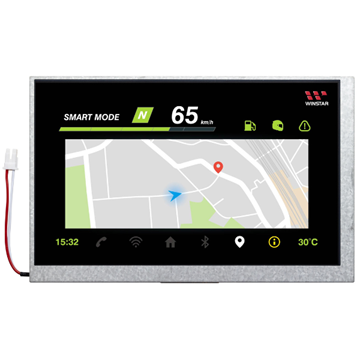

Picture of WF70-800480D2D#ASPW0-FC
