WF80-8001280GM#0P0-FC

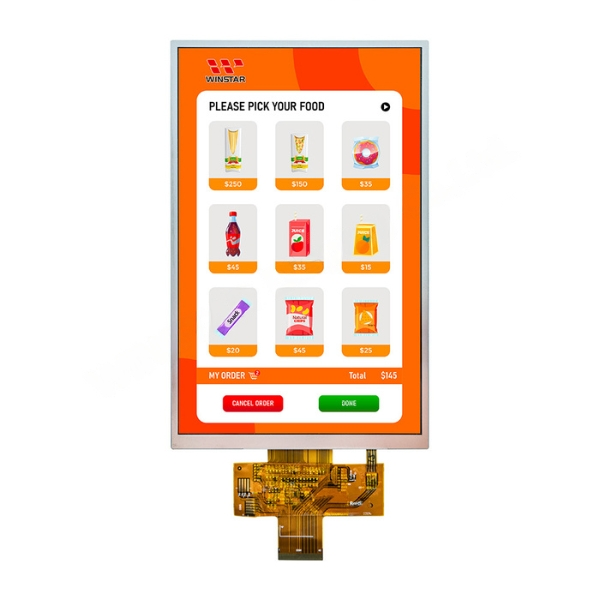

TFT 8" 800x1280 LCD Panel, Interface MIPI (4-lanes) IC ILI9881C, Wide View Angle (IPS), No touch

DESCRIPTION

The WF80-8001280GM#0P0-FC is an 8-inch vertical screen TFT-LCD display module with a resolution of 800×1280 pixels. This TFT module utilizes the ILI9881C driver IC and supports the 4-Lanes MIPI DSI interface, offering advantages such as low power consumption, a high transmission rate, support for multiple data-encoding formats, and low noise and interference.

The WF80-8001280GM#0P0-FC module employs IPS panel technology, providing relatively wide viewing angles of left: 85/right: 85/up: 85/down: 85 degrees (typical value). It incorporates an anti-glare surface with an aspect ratio of 10:16.

The analog circuit of the power supply operates within the range of 3.0V~3.6V, with a typical value of 3.3V. Operating temperatures range from -20℃ to +70℃, and storage temperatures range from -30℃ to +80℃. The WF80-8001280GM#0P0-FC 8-inch display finds wide applications, particularly in vertical screen orientations suitable for vending machines, ship control panels, home surveillance systems, and smart door locks.

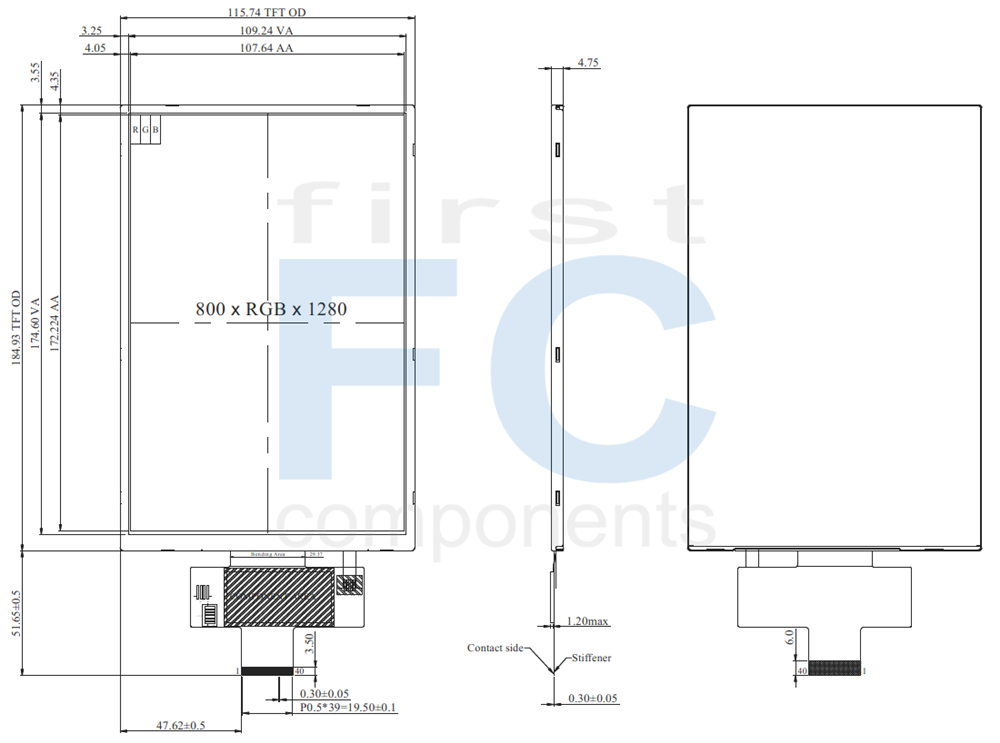

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Function
1-9	NC	No connection
10-11	VCI	Power supply for analog circuits. Connect to an external power supply of 3.0V to 3.6V
12-13	NC	No connection
14	RESET	The external reset input (RESX) Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power. Fix to IOVCC level when not in use.
15	TE	Tearing effect output pin. Leave the pin open when not in use.
16	NC	No connection (LED PWM)
17-18	GND	Power ground
19-20	IOVCC	Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V
21	GND	Power ground
22	D3P	MIPI DSI differential data pair. (Data lane 3)
23	D3N	MIPI DSI differential data pair. (Data lane 3)
24	GND	Power ground
25	D2P	MIPI DSI differential data pair. (Data lane 2)
26	D2N	MIPI DSI differential data pair. (Data lane 2)
27	GND	Power ground
28	CLKP	MIPI DSI differential clock pair
29	CLKN	MIPI DSI differential clock pair
30	GND	Power ground
31	D1P	MIPI DSI differential data pair. (Data lane 1)
32	D1N	MIPI DSI differential data pair. (Data lane 1)
33	GND	Power ground
34	D0P	MIPI DSI differential data pair. (Data lane 0)
35	D0N	MIPI DSI differential data pair. (Data lane 0)
36	GND	Power ground
37	VLED1+	Power for LED1 backlight anode
38	VLED2+	Power for LED2 backlight anode
39	VLED1-	Power for LED1 backlight cathode
40	VLED2-	Power for LED2 backlight cathode

General Specifications

Item	Dimension	Unit
Size	8.0	inch
Dot Matrix	800 × 3(RGB) ×1280	dots
Module dimension	115.74 × 184.93 × 4.75	mm
Active area	107.64 × 172.224	mm
Pixel pitch	0.13455 × 0.13455	mm
LCD type	TFT, Normally Black, Transmissive
Viewing angle	85/85/85/85
TFT Drive IC	ILI9881C or Equivalent
TFT Interface	4-Lanes MIPI
Aspect Ratio	10:16
Backlight Type	LED, Normally White
Touch Panel	Without Touch Panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	70	℃
Storage Temperature	TST	-30	－	80	℃

Electrical Characteristics

Typical Operation Conditions

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power supply for analog circuit	VCI	3.0	3.3	3.6	V
Power supply for logic circuit	IOVCC	1.65	1.8	3.6	V
Current for Driver	IVCI	-	45	70	mA
Current for Driver	I IOVCC	-	20	30	mA

SKU: WF80-8001280GM#0P0-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€57.00

€51.30

€42.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€57.00 excl tax
