WF90-1024600BL#0PW0-FC

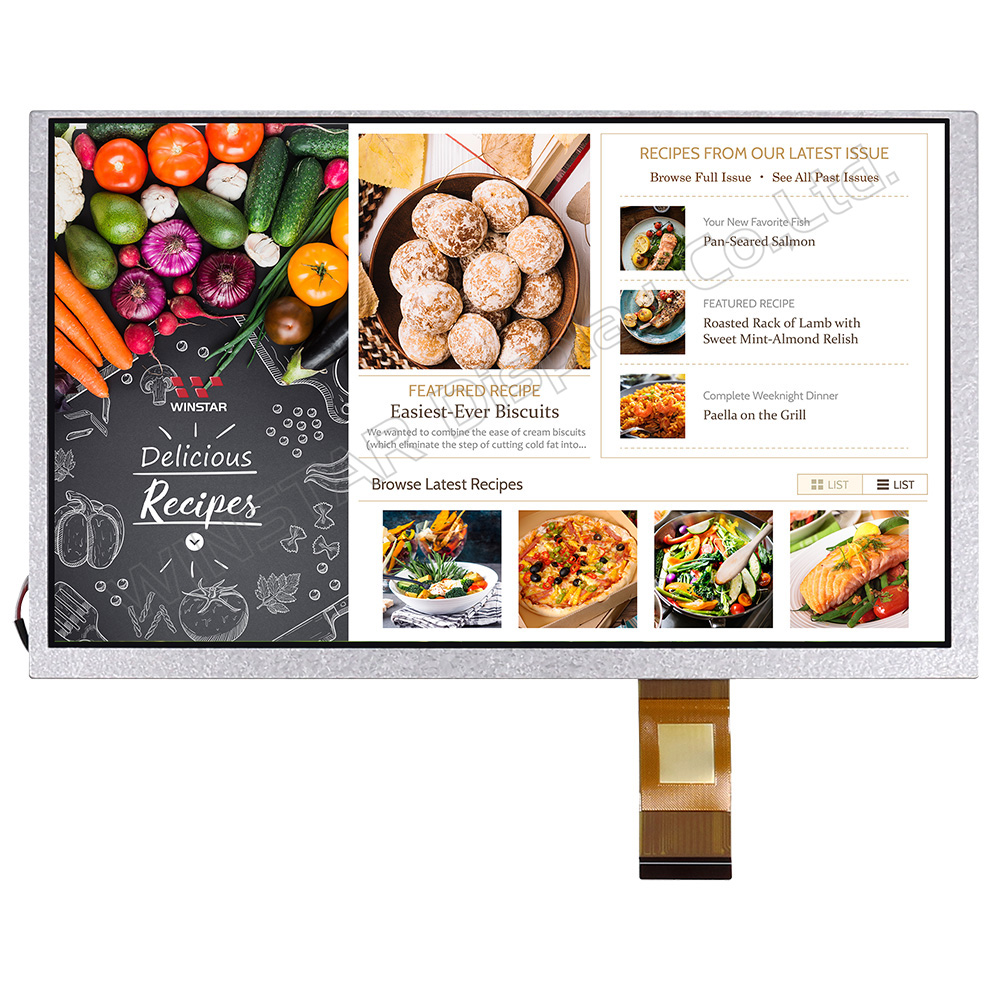

Picture of WF90-1024600BL#0PW0-FC Picture of WF90-1024600BL#0PW0-FC
TFT 9" 1024x600 LCD Panel, Interface LVDS, 500cd/m², Wide View Angle (IPS), Super extended temperature, No touch

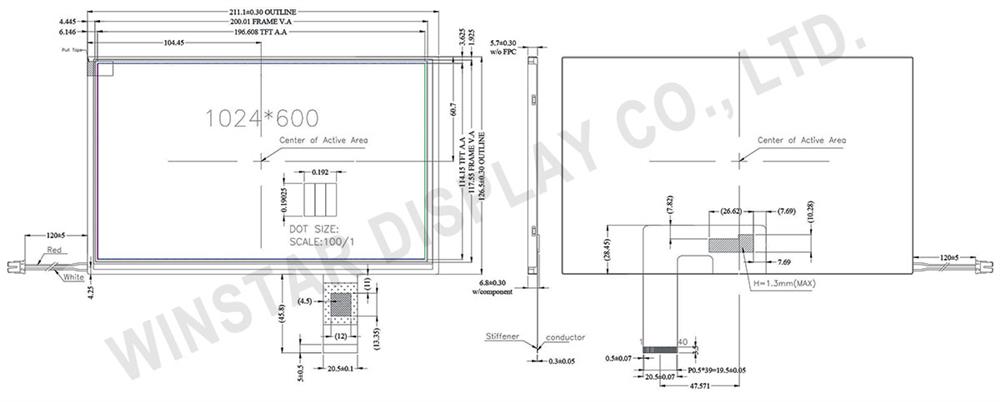

DRAWING

Winstar 9 inch TFT LCD Module, 9" TFT LCD

SPECIFICATIONS



Interface

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2~3 VDD P Power Voltage for digital circuit
4 NC — No connection
5 Reset I Global reset pin
6 U/D I Vertical inversion
7 L/R I Horizontal inversion
8 STBYB I Standby mode, Normally pulled high STBYB = “1”, normal operation STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
9 GND P Ground
10 RXCLKIN- I - LVDS differential data input
11 RXCLKIN+ I + LVDS differential data input
12 GND P Ground
13 RXIN0- I - LVDS differential data input
14 RXIN0+ I + LVDS differential data input
15 GND P Ground
16 RXIN1- I - LVDS differential data input
17 RXIN1+ I + LVDS differential data input
18 GND P Ground
19 RXIN2- I - LVDS differential clock input
20 RXIN2+ I + LVDS differential clock input
21 GND P Ground
22 RXIN3- I - LVDS differential data input
23 RXIN3+ I + LVDS differential data input
24 GND P Ground
25 SELB I 6bit/8bit mode selection
26 GND P Ground
27 AVDD P Power for Analog Circuit
28 GND P Ground
29 VGH P Gate ON Voltage
30~31 NC — No connection
32 VGL P Gate off Voltage
33 GND P Ground
34 NC — No connection
35~36 LED- P LED Cathode
37~38 NC — No connection
39~40 LED+ P LED Anode

I: input, O: output, P: Power



General Specifications

ItemDimensionUnit
Size 9.0 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 211.1(W) × 126.5(H) × 5.7(D) mm
Active area 196.608 × 114.15 mm
Dot pitch 0.192 × 0.19025 mm
LCD type TFT, Normally White, Transmissive
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare




Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electrical Characteristics

ItemSymbolMin.Typ.Max.Unit
Supply Voltage VDD 3.0 3.3 3.6 V
VGH 22 23 24 V
VGL -9 -10 -11 V
AVDD 12.3 12.6 12.9 V
VCOM 5.6 5.8 6 V
Input signal voltage ViH 0.7 VDD - VDD V
ViL 0 - 0.3 VDD V
Current of power supply IDD - 23 - mA
IADD - 40 - mA
IGH - 0.5 - mA
IGL - 1.2 - mA
Ivcom   0.7 - mA


SKU: WF90-1024600BL#0PW0-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€89.90
€80.90
€68.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€89.90 excl tax

DRAWING

Winstar 9 inch TFT LCD Module, 9" TFT LCD

SPECIFICATIONS



Interface

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2~3 VDD P Power Voltage for digital circuit
4 NC — No connection
5 Reset I Global reset pin
6 U/D I Vertical inversion
7 L/R I Horizontal inversion
8 STBYB I Standby mode, Normally pulled high STBYB = “1”, normal operation STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
9 GND P Ground
10 RXCLKIN- I - LVDS differential data input
11 RXCLKIN+ I + LVDS differential data input
12 GND P Ground
13 RXIN0- I - LVDS differential data input
14 RXIN0+ I + LVDS differential data input
15 GND P Ground
16 RXIN1- I - LVDS differential data input
17 RXIN1+ I + LVDS differential data input
18 GND P Ground
19 RXIN2- I - LVDS differential clock input
20 RXIN2+ I + LVDS differential clock input
21 GND P Ground
22 RXIN3- I - LVDS differential data input
23 RXIN3+ I + LVDS differential data input
24 GND P Ground
25 SELB I 6bit/8bit mode selection
26 GND P Ground
27 AVDD P Power for Analog Circuit
28 GND P Ground
29 VGH P Gate ON Voltage
30~31 NC — No connection
32 VGL P Gate off Voltage
33 GND P Ground
34 NC — No connection
35~36 LED- P LED Cathode
37~38 NC — No connection
39~40 LED+ P LED Anode

I: input, O: output, P: Power



General Specifications

ItemDimensionUnit
Size 9.0 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 211.1(W) × 126.5(H) × 5.7(D) mm
Active area 196.608 × 114.15 mm
Dot pitch 0.192 × 0.19025 mm
LCD type TFT, Normally White, Transmissive
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare




Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electrical Characteristics

ItemSymbolMin.Typ.Max.Unit
Supply Voltage VDD 3.0 3.3 3.6 V
VGH 22 23 24 V
VGL -9 -10 -11 V
AVDD 12.3 12.6 12.9 V
VCOM 5.6 5.8 6 V
Input signal voltage ViH 0.7 VDD - VDD V
ViL 0 - 0.3 VDD V
Current of power supply IDD - 23 - mA
IADD - 40 - mA
IGH - 0.5 - mA
IGL - 1.2 - mA
Ivcom   0.7 - mA


Products specifications
Brand Winstar
Size 9"
Resolution 1024x600
Active Area (mm) 196.60x114.15
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 9"
Resolution 1024x600
Active Area (mm) 196.60x114.15
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
