WFN0360MA2#0P0-FC

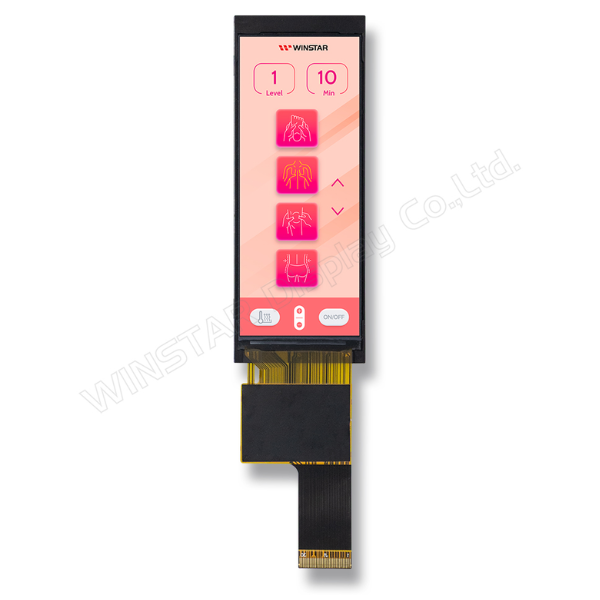

Picture of WFN0360MA2#0P0-FC Picture of WFN0360MA2#0P0-FC
TFT 3.6" 280x712, Bar Type, Interface MIPI IC FL7703NI, 500cd/m², Wide view angle (IPS), No touch

DESCRIPTION

The WFN0360MA2#0P0-FC is a 3.6-inch bar type TFT-LCD display module in portrait orientation. This 3.6-inch TFT display features a 280×712 pixel resolution, IPS panel technology with 85/85/85/85 wide viewing angles, 500 cd/m² brightness, and a 1200:1 contrast ratio. It uses a 4-lane MIPI interface, anti-glare surface, and the FL7703NI driver IC (or equivalent).

With its long-format bar type design, this 3.6-inch TFT module is ideal for Pro Audio systems, 1U rackmount audio equipment, power management systems, and indoor medical devices.

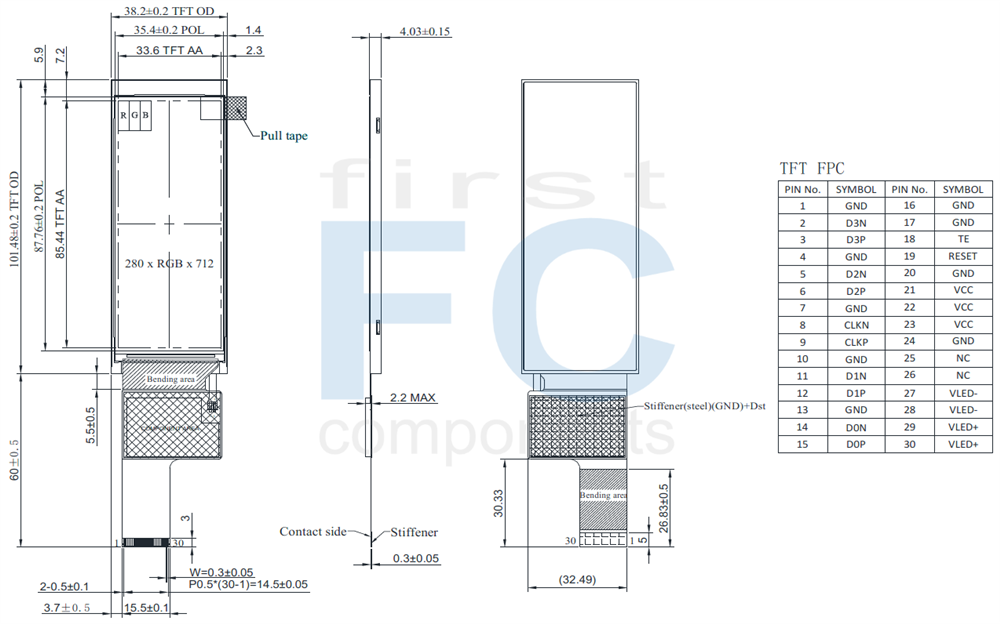

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 3.6 inch
Dot Matrix 280 x RGB x 712 (TFT) dots
Module dimension 38.2 x 101.48 x 4.03 mm
Active area 33.6 x 85.44 mm
Pixel pitch 0.12 X 0.12 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT Interface 4-Lanes MIPI
Backlight Type LED ,Normally White
TFT Driver IC FL7703NI or Equivalent
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

TFT LCD Module

ItemSymbolMinTypMaxUnit
Analog Supply voltage VCC 2.5 2.8 3.3 V
Analog supply current ICC - 65 98.0 mA
Logic input voltage VIH 0.7*VCC - VCC V
VIL GND - 0.3*VCC V

Backlight Driving Conditions

ParameterSymbolMinTypMaxUnit
LED current - - 90 - mA
LED voltage VLED+ 5.5 6.0 6.8 V
LED Life Time - 50,000 - - Hr



Interface Pin Function

LCM PIN Definition

Pin No.SymbolDescription
1 GND Ground.
2 D3N MIPI data input pins
3 D3P
4 GND Ground.
5 D2N MIPI data input pins
6 D2P
7 GND Ground.
8 CLKN MIPI clock input pins.
9 CLKP
10 GND Ground.
11 D1N MIPI data input pins
12 D1P
13 GND Ground.
14 D0N MIPI data input pins
15 D0P
16 GND Ground.
17 GND Ground.
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground.
21-23 VCC Power supply
24 GND Ground.
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode
