WFN0700MD8#0SPW0-FC

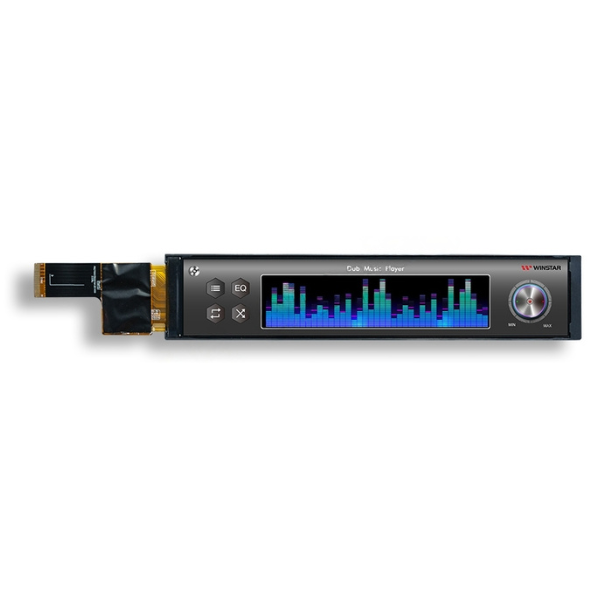

Picture of WFN0700MD8#0SPW0-FC Picture of WFN0700MD8#0SPW0-FC
TFT 7" 280×1424, Bar Type, Interface MIPI, High Brightness 1000 cd/m², Wide view angle (IPS), Super extended temperature

SPECIFICATIONS

General Specification

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 280 x RGBx1424(TFT) dots
Module dimension 38.2(H) x 186.62(V) x 4.03(D) mm
Active area 33.60 (H) x170.88(V) mm
Pixel pitch 0.12(H) x 0.12(V) mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT Interface 4-Lanes MIPI
Backlight Type LED, Normally White
TFT Driver IC FL7703NI or Equivalent
Touch Panel Without Touch Panel
Surface Aniti-Glare

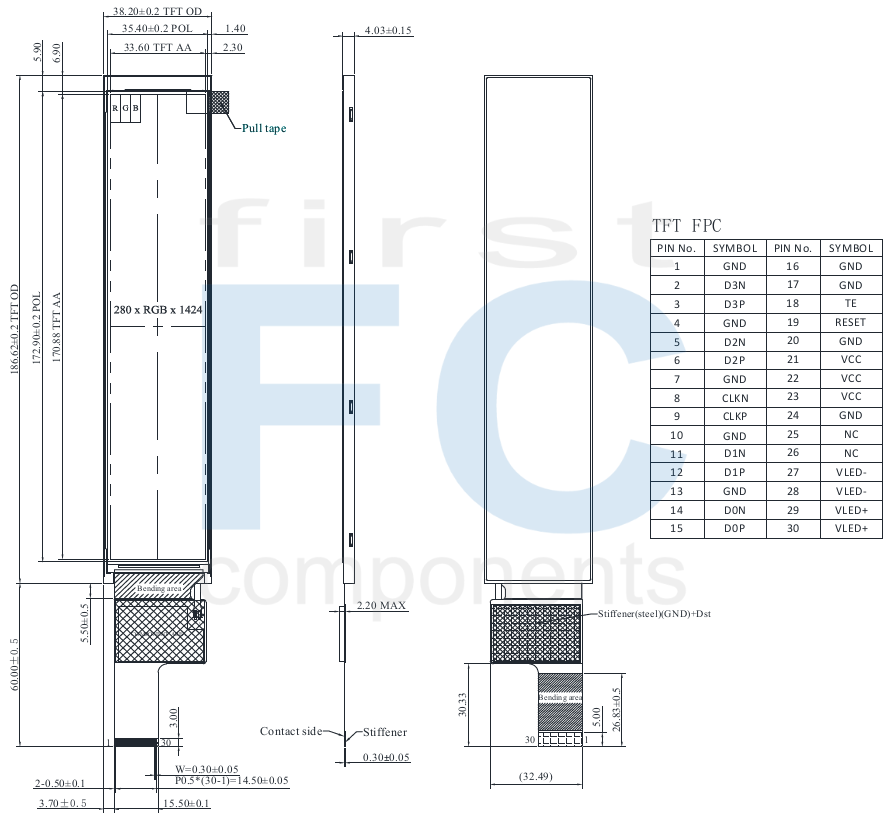

DRAWING



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Analog Supply Voltage VCC 2.5 2.8 3.3 V
Analog Supply Current ICC - 71.0 110 mA
Logic input voltage VIH 0.7*VCC - VCC V
VIL GND - 0.3*VCC V




Interface

NO.SymbolFunction
1 GND Ground
2 D3N MIPI data input pins
3 D3P
4 GND Ground
5 D2N MIPI data input pins
6 D2P
7 GND Ground
8 CLKN MIPI data input pins
9 CLKP
10 GND Ground
11 D1N MIPI data input pins
12 D1P
13 GND Ground
14 D0N MIPI data input pins
15 D0P
16-17 GND Ground
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground
21-23 VCC Power supply
24 GND Ground
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode
SKU: WFN0700MD8#0SPW0-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€35.80
€32.20
€28.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€35.80 excl tax

SPECIFICATIONS

General Specification

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 280 x RGBx1424(TFT) dots
Module dimension 38.2(H) x 186.62(V) x 4.03(D) mm
Active area 33.60 (H) x170.88(V) mm
Pixel pitch 0.12(H) x 0.12(V) mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT Interface 4-Lanes MIPI
Backlight Type LED, Normally White
TFT Driver IC FL7703NI or Equivalent
Touch Panel Without Touch Panel
Surface Aniti-Glare



DRAWING



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Analog Supply Voltage VCC 2.5 2.8 3.3 V
Analog Supply Current ICC - 71.0 110 mA
Logic input voltage VIH 0.7*VCC - VCC V
VIL GND - 0.3*VCC V




Interface

NO.SymbolFunction
1 GND Ground
2 D3N MIPI data input pins
3 D3P
4 GND Ground
5 D2N MIPI data input pins
6 D2P
7 GND Ground
8 CLKN MIPI data input pins
9 CLKP
10 GND Ground
11 D1N MIPI data input pins
12 D1P
13 GND Ground
14 D0N MIPI data input pins
15 D0P
16-17 GND Ground
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground
21-23 VCC Power supply
24 GND Ground
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode
Products specifications
Brand Winstar
Size 7"
Resolution 280x1424
Active Area (mm) 33.60x170.88
Color Full Color
Display Interface MIPI
Display IC FL7703NI
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 280x1424
Active Area (mm) 33.60x170.88
Color Full Color
Display Interface MIPI
Display IC FL7703NI
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
