WG12232D-YYH-N#J

Graphic LCD 1.86'' 122x32, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, No VNEG, IC AiP31520

DESCRIPTION

WG12232D is a 122x32 graphic LCD module which is having the outline size 59 x 29.3 mm and AA size of 45.72 x 11.97 mm, diagonal size 1.9 inch. This 122x32 graphic LCD module is built in with AiP31520 controller IC or equivalent IC. It supports 6800 8-bit parallel interface and 5V power supply. Please note the pin pitch of WG12232D is 1.27mm, please choose WG12232D1 (pin pitch:2.0 mm) if your applications require larger pin pitch.

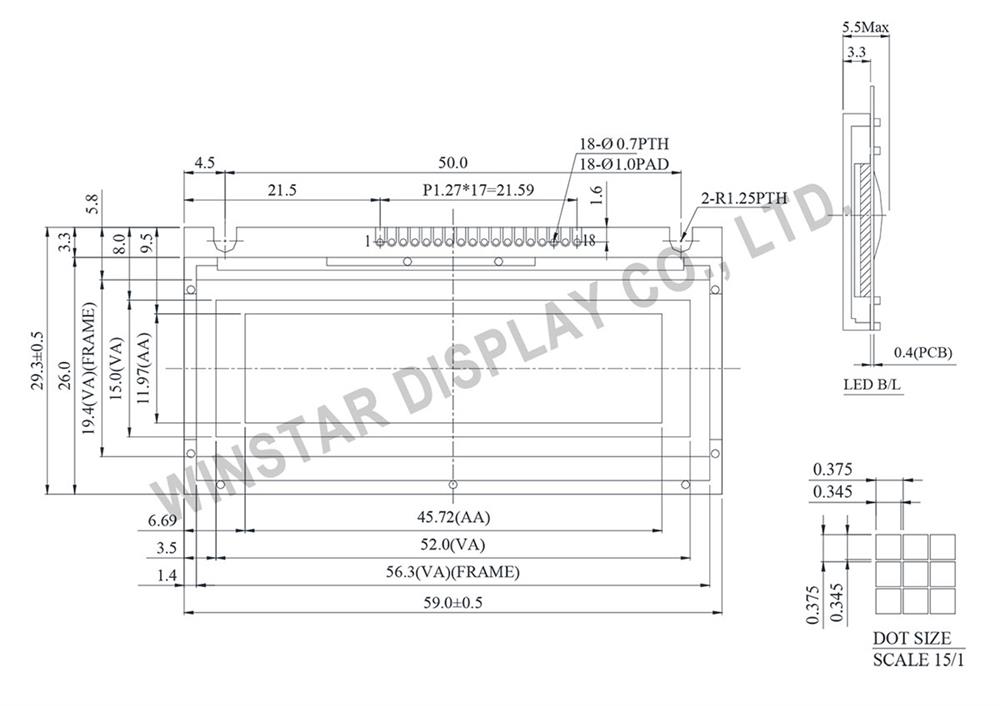

DRAWING

Winstar WG12232D - 122 x 32 Graphical LCD Displays

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	/VLED	Power supply for B/L -
2	V_SS	Ground
3	V_DD	Power supply for logic
4	V_O	Contrast Adjustment
5	A0	Data/ Instruction select signal
6	E1	Enable signal
7	E2	Enable signal
8~15	DB0~DB7	Data bus line
16	R/W	Read/Write select signal
17	V_EE	Negative Voltage Output
18	NC	No connection

Mechanical Data

Item	Standard Value	Unit
Module Dimension	59.0 × 29.3	mm
Viewing Area	52.0 × 15.0	mm
Mounting Hole	50.0	mm
Dot Pitch	0.375 × 0.375	mm
Dot Size	0.345 × 0.345	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	4.35	V

SKU: WG12232D-YYH-N#J

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

25+

Price

€13.70

€10.10

€9.70

€9.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€13.70 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	/VLED	Power supply for B/L -
2	V_SS	Ground
3	V_DD	Power supply for logic
4	V_O	Contrast Adjustment
5	A0	Data/ Instruction select signal
6	E1	Enable signal
7	E2	Enable signal
8~15	DB0~DB7	Data bus line
16	R/W	Read/Write select signal
17	V_EE	Negative Voltage Output
18	NC	No connection

Mechanical Data

Item	Standard Value	Unit
Module Dimension	59.0 × 29.3	mm
Viewing Area	52.0 × 15.0	mm
Mounting Hole	50.0	mm
Dot Pitch	0.375 × 0.375	mm
Dot Size	0.345 × 0.345	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	4.35	V

Products specifications

Brand	Winstar
Size	1.86"
Resolution	122x32
Active Area (mm)	45.72x11.97
Dot Size	0.34x0.34
B/L color, LCD type	B/L yellow/green, STN yellow/green pos
Power supply	5V
Display Interface	6800
Display IC	AiP31520
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	18
Pin Pitch	1.27mm
Preferred - Not Preferred	Preferred
