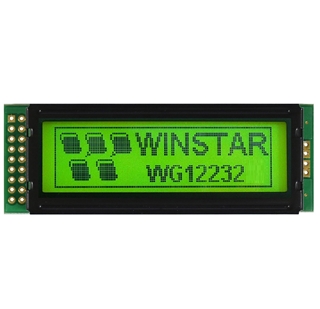

WG12232O-YYH-VE#A

Graphic LCD 2.2'' 122x32, B/L yellow/green, STN yellow/green pos, COB, 3V, Interface 6800, 6 O'clock, VNEG (EDGE B/L)

DESCRIPTION



WG12232O is a monochrome 122x32 graphic 2.2” LCD display module.  This 122x32 graphic LCD display is built in with SBN1661G controller IC which supports 6800 8-bit parallel interface.  This module is 5V power supply, also negative voltage 3V optional.  Please note WG12232O is white LED backlight available only.  If you need other color LED, please contact with us.

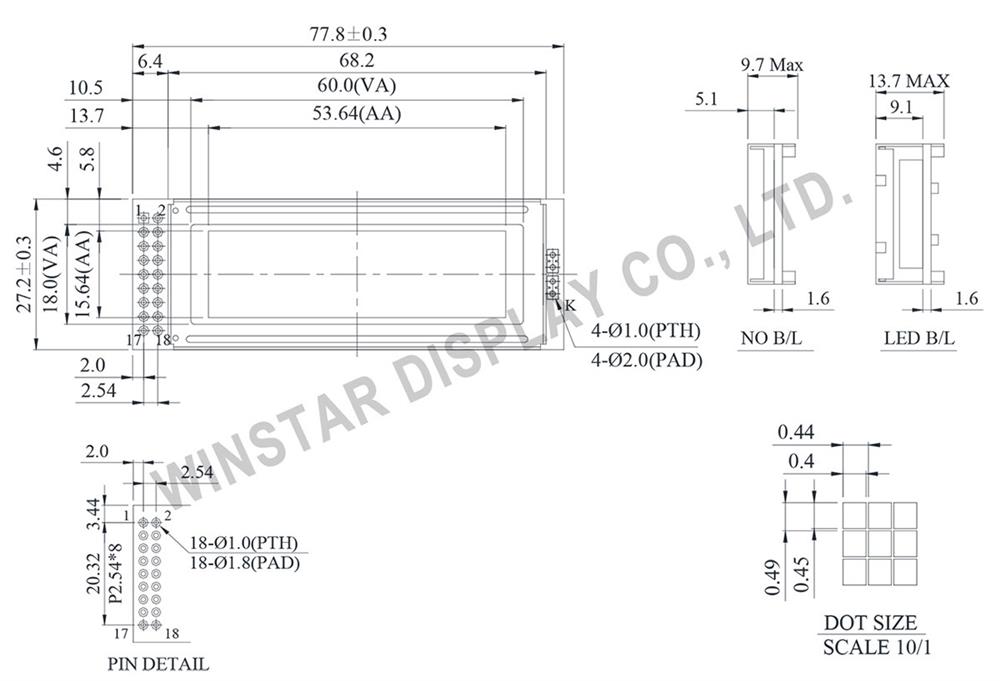

DRAWING

Winstar WG12232O 122x32 Graphic Displays



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 Vdd Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction select signal
5 E1 Enable signal
6 E2 Enable signal
7 NC/CL No connection / External clock 2KHz
8 NC/E No connection / Enable signal
9 R/W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 /RST Controller reset signal, Active Low



Mechanical Data

ItemStandard ValueUnit
Module Dimension 77.8 × 27.2 mm
Viewing Area 60.0 × 18.0 mm
Dot Pitch 0.44 × 0.49 mm
Dot Size 0.40 × 0.45 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.45 V


SKU: WG12232O-YYH-VE#A
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€12.80
€9.40
€7.80
€7.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€12.80 excl tax

DESCRIPTION



WG12232O is a monochrome 122x32 graphic 2.2” LCD display module.  This 122x32 graphic LCD display is built in with SBN1661G controller IC which supports 6800 8-bit parallel interface.  This module is 5V power supply, also negative voltage 3V optional.  Please note WG12232O is white LED backlight available only.  If you need other color LED, please contact with us.


DRAWING

Winstar WG12232O 122x32 Graphic Displays



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 Vdd Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction select signal
5 E1 Enable signal
6 E2 Enable signal
7 NC/CL No connection / External clock 2KHz
8 NC/E No connection / Enable signal
9 R/W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 /RST Controller reset signal, Active Low



Mechanical Data

ItemStandard ValueUnit
Module Dimension 77.8 × 27.2 mm
Viewing Area 60.0 × 18.0 mm
Dot Pitch 0.44 × 0.49 mm
Dot Size 0.40 × 0.45 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.45 V


Products specifications
Brand Winstar
Size 2.2"
Resolution 122x32
Active Area (mm) 53.64x15.64
Dot Size 0.40x0.45
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 3V
Interface 6800
Built-in Controller SBN1661G
Structure COB
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 18
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.2"
Resolution 122x32
Active Area (mm) 53.64x15.64
Dot Size 0.40x0.45
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 3V
Interface 6800
Built-in Controller SBN1661G
Structure COB
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 18
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
