WG12864A-CFH-V#N000

Graphic LCD 2.9" 128x64, B/L RGB, FSTN white pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG, Resistive touch panel

DESCRIPTION

Winstar WG12864A is a monochrome graphic LCD 128x64 module. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface. Resistive touch panel version.

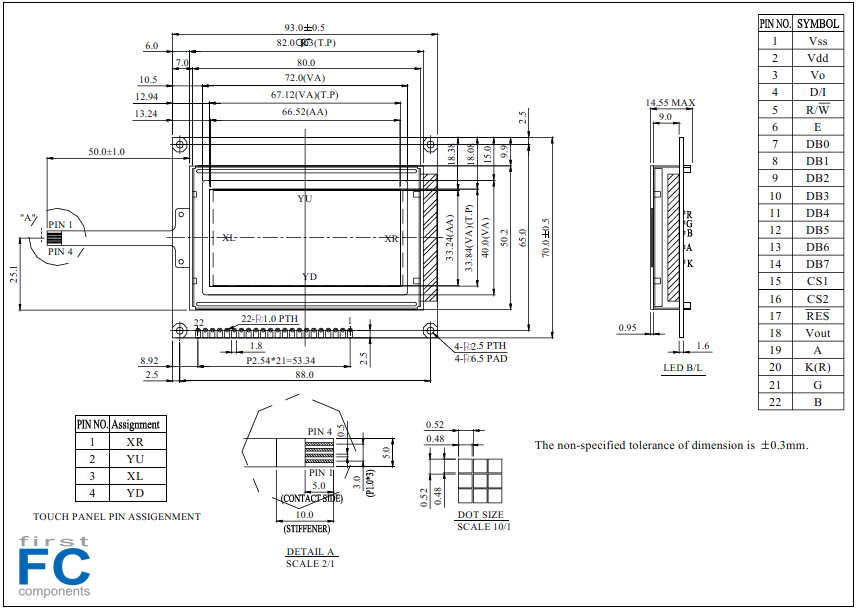

DRAWING

SKU: WG12864A-CFH-V#N000
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€32.50
€26.00
€25.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€32.50 excl tax

DESCRIPTION

Winstar WG12864A is a monochrome graphic LCD 128x64 module. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface. Resistive touch panel version.


DRAWING

Date Notice Link/Description
2023/04/06 PCN Neotec IC NT7107C/NT7108C > NT7107T/NT7108T for WG12864 & WG19264 Families



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type B/L RGB, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC NT7107T+NT7108T
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 22
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type B/L RGB, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC NT7107T+NT7108T
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 22
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
