WG12864A-NYG-V#N

Graphic LCD 2.9'' 128x64, Without B/L, STN yellow-green pos, COB, 5V, Interface 6800, 6 O'clock, VNEG

DESCRIPTION



Winstar WG12864A is a monochrome graphic LCD 128x64 module. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  This WG12864A graphic Display LCD 128x64 module is 5V power supply.  There are two derivative versions of WG12864A; they are WG12864AB for negative voltage 3.3V power supply and WG12864A1 for double-row pinout interface.

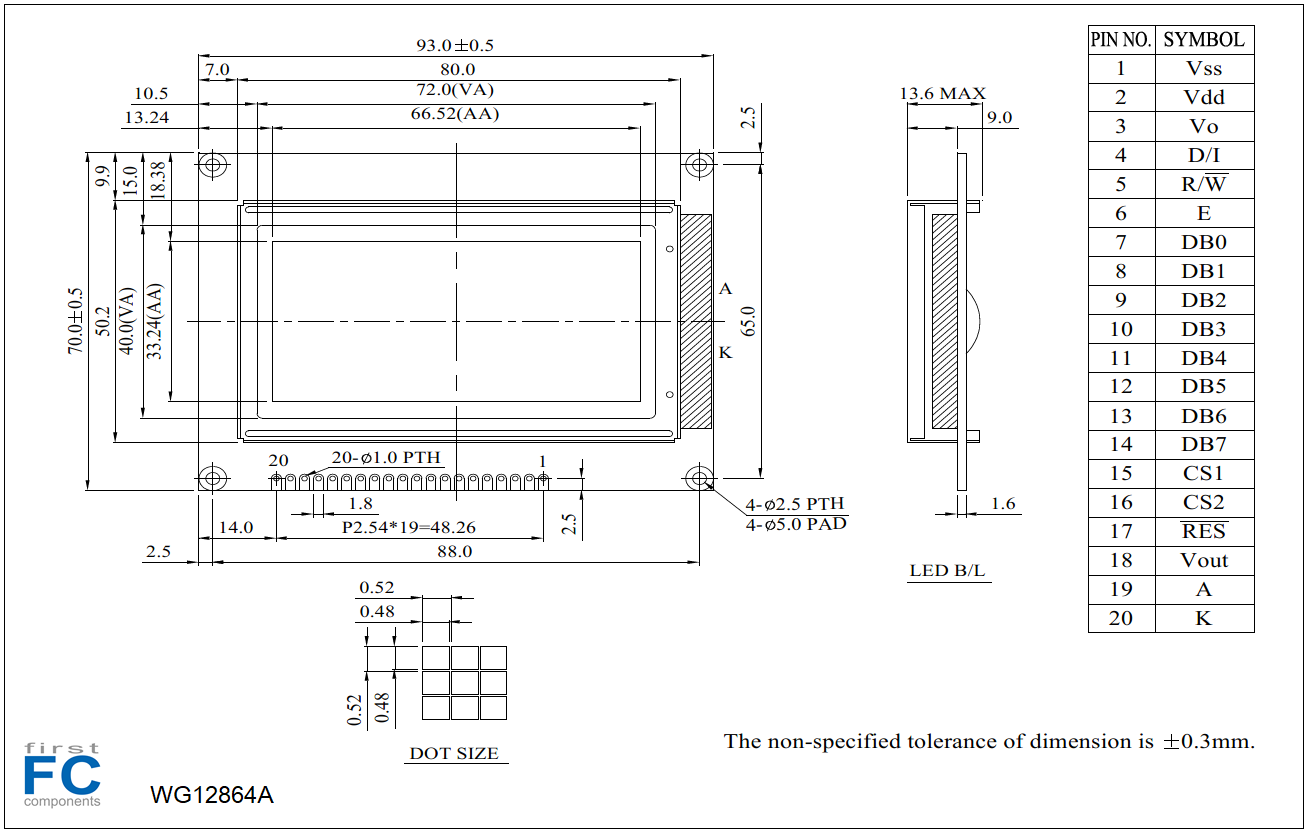

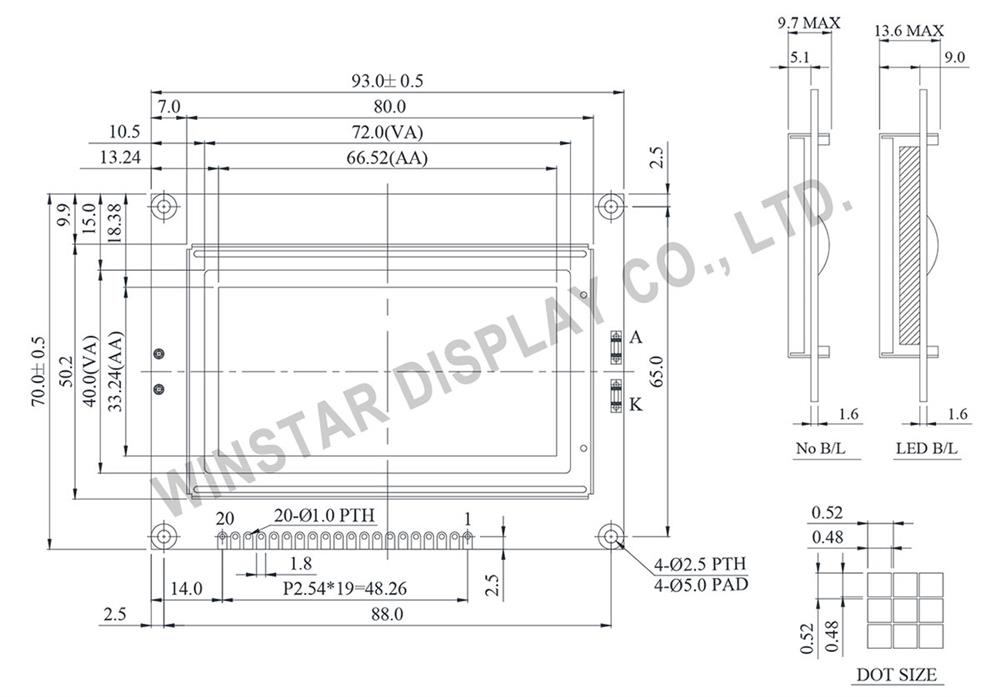

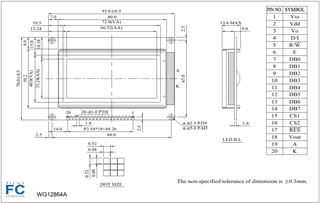

DRAWING

WG12864A Monochrome Graphic LCD, Graphic LCD 128x64, Winstar WG12864A

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 D/I Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 CS1 Select Column 1~ Column 64
16 CS2 Select Column 65~ Column 128
17 /RES Controller reset signal, Active Low
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 93.0 × 70.0 mm
Viewing Area 72.0 × 40.0 mm
Mounting Hole 88.0 × 65.0 mm
Dot Pitch 0.52 × 0.52 mm
Dot Size 0.48 × 0.48 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.90 V


SKU: WG12864A-NYG-V#N
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€14.20
€11.40
€9.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€14.20 excl tax

DESCRIPTION



Winstar WG12864A is a monochrome graphic LCD 128x64 module. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  This WG12864A graphic Display LCD 128x64 module is 5V power supply.  There are two derivative versions of WG12864A; they are WG12864AB for negative voltage 3.3V power supply and WG12864A1 for double-row pinout interface.


DRAWING

WG12864A Monochrome Graphic LCD, Graphic LCD 128x64, Winstar WG12864A

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 D/I Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 CS1 Select Column 1~ Column 64
16 CS2 Select Column 65~ Column 128
17 /RES Controller reset signal, Active Low
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 93.0 × 70.0 mm
Viewing Area 72.0 × 40.0 mm
Mounting Hole 88.0 × 65.0 mm
Dot Pitch 0.52 × 0.52 mm
Dot Size 0.48 × 0.48 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.90 V


Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type Without B/L, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC Controller NT7107, NT7108
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type Without B/L, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC Controller NT7107, NT7108
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
