WG12864A-YYH-T#N

Graphic LCD 2.2'' 122x64, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG, Temperature Compensator

DESCRIPTION

Winstar WG12864A is a monochrome graphic LCD 128x64 module. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface. This WG12864A graphic Display LCD 128x64 module is 5V power supply. There are two derivative versions of WG12864A; they are WG12864AB for negative voltage 3.3V power supply and WG12864A1 for double-row pinout interface.

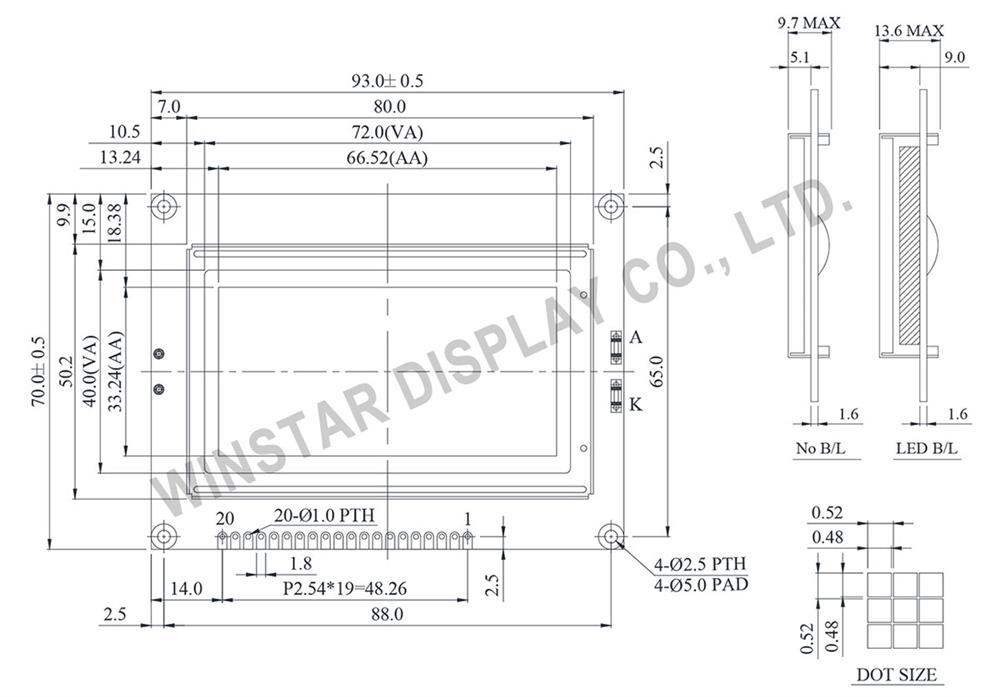

DRAWING

WG12864A Monochrome Graphic LCD, Graphic LCD 128x64, Winstar WG12864A

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_DD	Power supply for logic
3	V_O	Contrast Adjustment
4	D/I	Data/ Instruction select signal
5	R/W	Read/Write select signal
6	E	Enable signal
7~14	DB0~DB7	Data bus line
15	CS1	Select Column 1~ Column 64
16	CS2	Select Column 65~ Column 128
17	/RES	Controller reset signal, Active Low
18	V_EE	Negative Voltage Output
19	A	Power supply for B/L +
20	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	93.0 × 70.0	mm
Viewing Area	72.0 × 40.0	mm
Mounting Hole	88.0 × 65.0	mm
Dot Pitch	0.52 × 0.52	mm
Dot Size	0.48 × 0.48	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	8.90	V

SKU: WG12864A-YYH-T#N

Brand: Winstar

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€20.60

€15.10

€14.60

€14.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€20.60 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_DD	Power supply for logic
3	V_O	Contrast Adjustment
4	D/I	Data/ Instruction select signal
5	R/W	Read/Write select signal
6	E	Enable signal
7~14	DB0~DB7	Data bus line
15	CS1	Select Column 1~ Column 64
16	CS2	Select Column 65~ Column 128
17	/RES	Controller reset signal, Active Low
18	V_EE	Negative Voltage Output
19	A	Power supply for B/L +
20	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	93.0 × 70.0	mm
Viewing Area	72.0 × 40.0	mm
Mounting Hole	88.0 × 65.0	mm
Dot Pitch	0.52 × 0.52	mm
Dot Size	0.48 × 0.48	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	8.90	V

Products specifications

Brand	Winstar
Size	2.9"
Resolution	128x64
Active Area (mm)	66.52x33.24
Dot Size	0.48x0.48
B/L color, LCD type	B/L yellow/green, STN yellow/green pos
Power supply	5V
Display Interface	6800
Display IC	NT7107, NT7108
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-30~80
Display Connection	Soldering PAD
Pin Nr.	20
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
