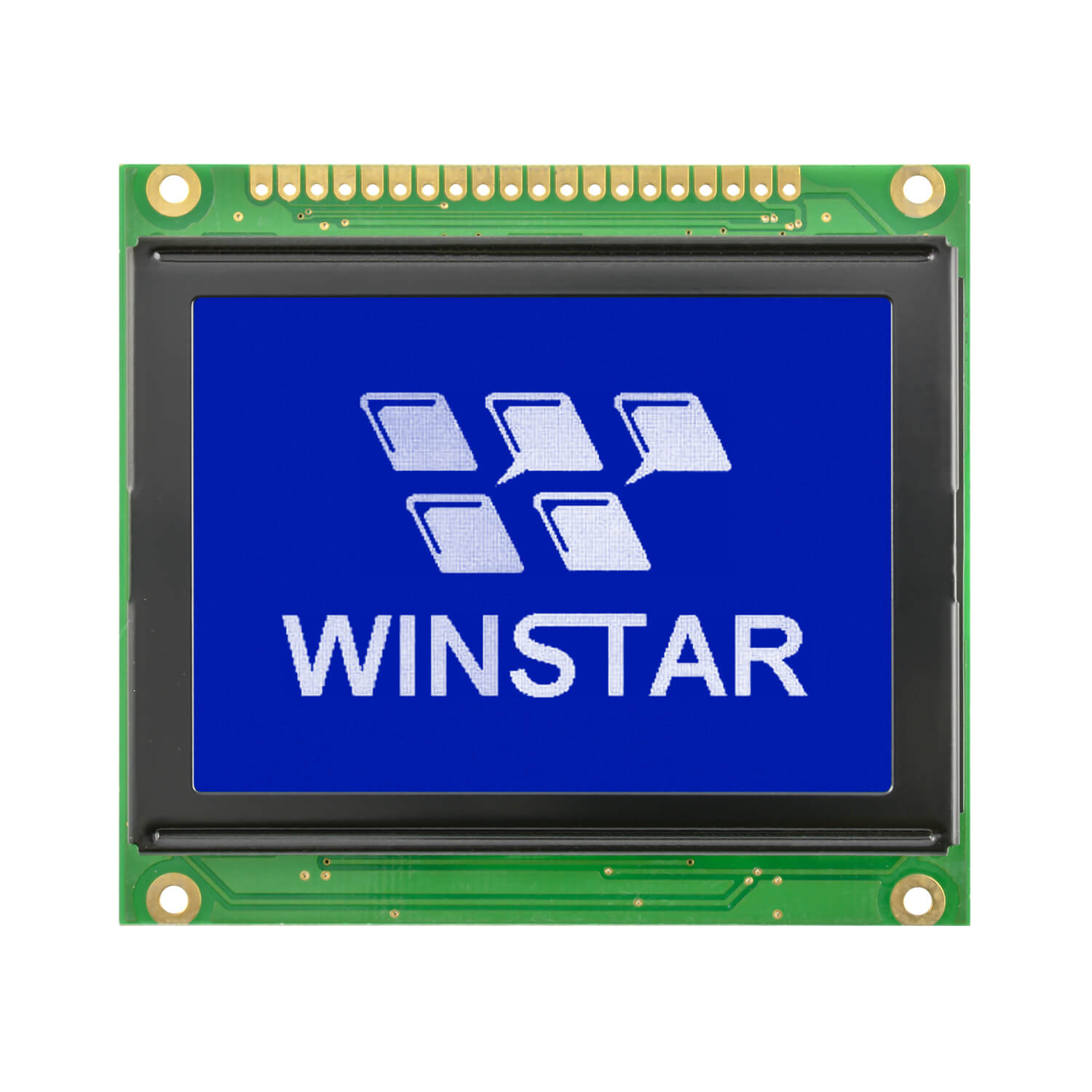

WG12864C-TMI-V#N000

Graphic LCD 2.7" 128x64, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, 6 O'clock, VNEG, Resistive touch panel

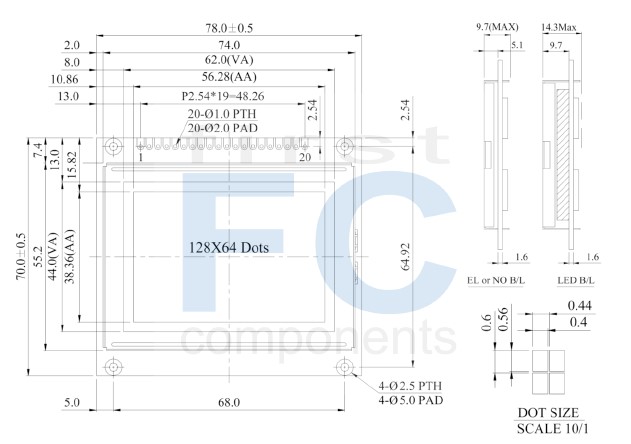

DRAWING

SKU: WG12864C-TMI-V#N000
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€22.60
€18.10
€17.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€22.60 excl tax



DRAWING

Date Notice Link/Description
2023/04/06 PCN Neotec IC NT7107C/NT7108C > NT7107T/NT7108T for WG12864 & WG19264 Families



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 2.7"
Resolution 128x64
Active Area (mm) 56.30x38.38
Dot Size 0.42x0.58
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC NT7107T+NT7108T
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.7"
Resolution 128x64
Active Area (mm) 56.30x38.38
Dot Size 0.42x0.58
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC NT7107T+NT7108T
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
