WG12864D-TFH-NZ#

Graphic LCD 2.7" 128x64, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 8080, 6 O'clock, No VNEG

DESCRIPTION

[8Apr21] PCN from IC RA6963-N to IC RA6963-N1

WG12864D is a 2.7- inch 128x64 LCD display module which is having the same mechanical size as WG12864C. WG12864D model is built in with RA6963; it communicates via 8080 8-bit parallel interface and negative voltage built in on module. WG12864D is available in various LED colors including yellow/green, blue, white, red, etc. This 128 x 64 LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

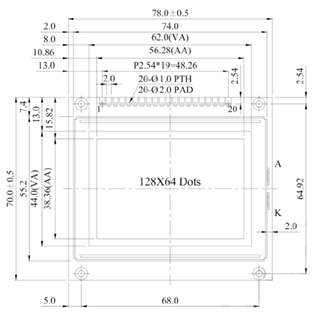

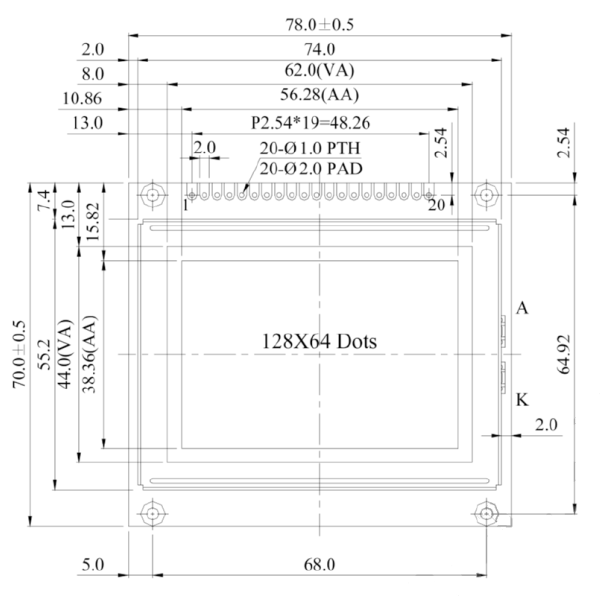

DRAWING

128x64 LCD Display, 12864 LCD - Winstar WG12864D

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_EE	Negative Voltage Output
2	V_SS	Ground
3	V_DD	Power supply for logic
4	V_O	Contrast Adjustment
5	/WR	Data write. Write data into LCD Controller
6	/RD	Data read. Read data from LCD Controller
7	/CE	Enable signal
8	/CD	Data/ Instruction select signal
9	/RESET	Controller reset signal, Active Low
10~17	DB0~DB7	Data bus line
18	FS	Selection of font; H : 6 * 8 , L : 8 * 8
19	K	Power supply for B/L -
20	A	Power supply for B/L +

Mechanical Data

Item	Standard Value	Unit
Module Dimension	78.0 ×70.0	mm
Viewing Area	62.0 × 44.0	mm
Mounting Hole	68.0 × 64.92	mm
Dot Pitch	0.44 × 0.60	mm
Dot Size	0.42 × 0.58	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	8.50	V

SKU: WG12864D-TFH-NZ#

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€28.30

€22.70

€23.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€28.30 excl tax

Overview
Product Notifications
Specifications
Download
Contact Us

DESCRIPTION

[8Apr21] PCN from IC RA6963-N to IC RA6963-N1

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_EE	Negative Voltage Output
2	V_SS	Ground
3	V_DD	Power supply for logic
4	V_O	Contrast Adjustment
5	/WR	Data write. Write data into LCD Controller
6	/RD	Data read. Read data from LCD Controller
7	/CE	Enable signal
8	/CD	Data/ Instruction select signal
9	/RESET	Controller reset signal, Active Low
10~17	DB0~DB7	Data bus line
18	FS	Selection of font; H : 6 * 8 , L : 8 * 8
19	K	Power supply for B/L -
20	A	Power supply for B/L +

Mechanical Data

Item	Standard Value	Unit
Module Dimension	78.0 ×70.0	mm
Viewing Area	62.0 × 44.0	mm
Mounting Hole	68.0 × 64.92	mm
Dot Pitch	0.44 × 0.60	mm
Dot Size	0.42 × 0.58	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	8.50	V

Date	Notice	Link/Description
2021/03/18	PCN	RAIO IC RA6963-N > RA6963-N1 for monochrome COB LCDs

For more details, please contact us @ [email protected]

Products specifications

Brand	Winstar
Size	2.7"
Resolution	128x64
Active Area (mm)	56.30x38.38
Dot Size	0.42x0.58
B/L color, LCD type	B/L white, FSTN pos
Power supply	5V
Display Interface	8080
Display IC	RA6963
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	20
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
