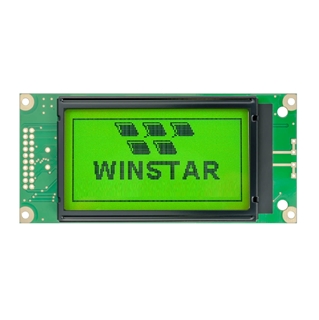

WG12864K-YYH-T#N

Graphic LCD 2.9'' 128x64, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 6800, 6 O'clock, VNEG, Temperature Conpensator

DESCRIPTION



WG12864K is a monochrome 128x64 LCD graphic display module which is having the outline dimension of 113x53 mm and AA size 66.52x33.24 mm.  WG12864K model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  The WG12864I LCD display is 5V power supply; it's also negative voltage built in on module.  This 128 x 64 LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

Winstar 128x64 Graphic Module - WG12864K



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 D/I Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 CS1 Select Column 1~ Column 64
16 CS2 Select Column 65~ Column 128
17 /RES Controller reset signal, Active Low
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 113.0 × 53.0 mm
Viewing Area 72.0 × 40.0 mm
Mounting Hole 88.0 × 65.0 mm
Dot Pitch 0.52 × 0.52 mm
Dot Size 0.48 × 0.48 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.75 V


SKU: WG12864K-YYH-T#N
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€17.00
€12.50
€12.10
€11.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€17.00 excl tax

DESCRIPTION



WG12864K is a monochrome 128x64 LCD graphic display module which is having the outline dimension of 113x53 mm and AA size 66.52x33.24 mm.  WG12864K model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  The WG12864I LCD display is 5V power supply; it's also negative voltage built in on module.  This 128 x 64 LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

Winstar 128x64 Graphic Module - WG12864K



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 D/I Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 CS1 Select Column 1~ Column 64
16 CS2 Select Column 65~ Column 128
17 /RES Controller reset signal, Active Low
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 113.0 × 53.0 mm
Viewing Area 72.0 × 40.0 mm
Mounting Hole 88.0 × 65.0 mm
Dot Pitch 0.52 × 0.52 mm
Dot Size 0.48 × 0.48 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.75 V


Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC Controller NT7107, NT7108
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC Controller NT7107, NT7108
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
