WG160128B1-TMI-VZ#

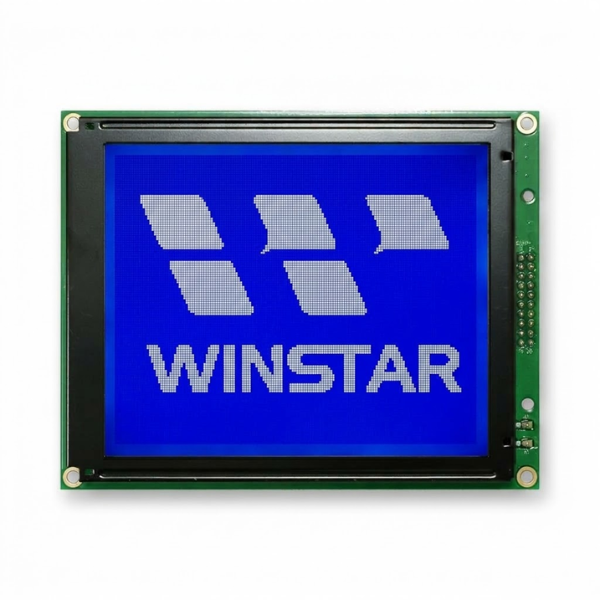

Graphic LCD 4.8" 160x128, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 8080, 6 O'clock, VNEG (Optimized Design)

DESCRIPTION

WG160128B1-TMI-VZ# is a monochrome graphic LCD 160x128 dot matrix display module featuring a COB (Chip on Board) structure with an integrated PCB. It offers a 4.84-inch diagonal active display area with module dimensions of 129 x 102 mm and an active area size of 95.96 x 75.76 mm.

This WG160128B1-TMI-VZ# model is built with the RA6963 controller IC and communicates via an 8080 8-bit parallel interface. It supports a 5V power supply, with an optional 3.3V negative voltage operation. This LCD display 160x128 module is available in graphic mode or Character Generator mode (character font) options.

It can operate in temperatures ranging from -20℃ to +70℃, with storage temperatures from -30℃ to +80℃.

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Number of dots	160 x 128	－
Module dimension	129.0 x 102.0 x 16.5(Max)	mm
View area	101.0 x 82.0	mm
Active area	95.96 x 76.76	mm
Dot size	0.56 x 0.56	mm
Dot pitch	0.60 x 0.60	mm
Duty	1/128
Backlight Type	LED
IC	RA6963
Interface	8080

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VIN	-0.3	－	VDD+0.3	V
Supply Voltage For Logic	VDD-VSS	-0.3	－	+7.0	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 18.6 16.8	－ 19.2 －	22.1 19.8 －	V V V
Input High Volt.	VIH	－	0.8VDD	－	VDD	V
Input Low Volt.	VIL	－	0	－	0.15VDD	V
Output High Volt.	VOH	－	VDD-0.3	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.3	V
Supply Current	IDD	－	－	31	50	mA

Interface Pin Function

Pin No.	Symbol	Level	Description
1	FG	－	Frame ground
2	VSS	－	Ground
3	VDD	－	Power supply for logic
4	VO	－	contrast adjustment
5	VEE	－	Negative Voltage Output
6	WR	L	Data write. Write data into RA6963when WR = L
7	RD	L	Data read. Read data from RA6963when RD = L
8	CE	L	Chip enable the controller RA6963
9	C/D	H / L	WR=L , C/D=H : Command Write C/D=L: Data write RD=L , C/D=H : Status Read C/D=L: Data read
10	HALT	L	Clock operating stop signal
11	RST	H / L	Reset signal
12	DB0	H / L	Data bus line
13	DB1	H / L	Data bus line
14	DB2	H / L	Data bus line
15	DB3	H / L	Data bus line
16	DB4	H / L	Data bus line
17	DB5	H / L	Data bus line
18	DB6	H / L	Data bus line
19	DB7	H / L	Data bus line
20	NC		No connection

SKU: WG160128B1-TMI-VZ#

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€63.00

€56.70

€53.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€63.00 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

It can operate in temperatures ranging from -20℃ to +70℃, with storage temperatures from -30℃ to +80℃.

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Number of dots	160 x 128	－
Module dimension	129.0 x 102.0 x 16.5(Max)	mm
View area	101.0 x 82.0	mm
Active area	95.96 x 76.76	mm
Dot size	0.56 x 0.56	mm
Dot pitch	0.60 x 0.60	mm
Duty	1/128
Backlight Type	LED
IC	RA6963
Interface	8080

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VIN	-0.3	－	VDD+0.3	V
Supply Voltage For Logic	VDD-VSS	-0.3	－	+7.0	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 18.6 16.8	－ 19.2 －	22.1 19.8 －	V V V
Input High Volt.	VIH	－	0.8VDD	－	VDD	V
Input Low Volt.	VIL	－	0	－	0.15VDD	V
Output High Volt.	VOH	－	VDD-0.3	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.3	V
Supply Current	IDD	－	－	31	50	mA

Interface Pin Function

Pin No.	Symbol	Level	Description
1	FG	－	Frame ground
2	VSS	－	Ground
3	VDD	－	Power supply for logic
4	VO	－	contrast adjustment
5	VEE	－	Negative Voltage Output
6	WR	L	Data write. Write data into RA6963when WR = L
7	RD	L	Data read. Read data from RA6963when RD = L
8	CE	L	Chip enable the controller RA6963
9	C/D	H / L	WR=L , C/D=H : Command Write C/D=L: Data write RD=L , C/D=H : Status Read C/D=L: Data read
10	HALT	L	Clock operating stop signal
11	RST	H / L	Reset signal
12	DB0	H / L	Data bus line
13	DB1	H / L	Data bus line
14	DB2	H / L	Data bus line
15	DB3	H / L	Data bus line
16	DB4	H / L	Data bus line
17	DB5	H / L	Data bus line
18	DB6	H / L	Data bus line
19	DB7	H / L	Data bus line
20	NC		No connection

Products specifications

Brand	Winstar
Size	4.8"
Resolution	160x128
Active Area (mm)	95.96x76.76
Dot Size	0.56x0.56
B/L color, LCD type	B/L white, STN blue neg
Power supply	5V
Display Interface	8080
Display IC	RA6963
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	20
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
