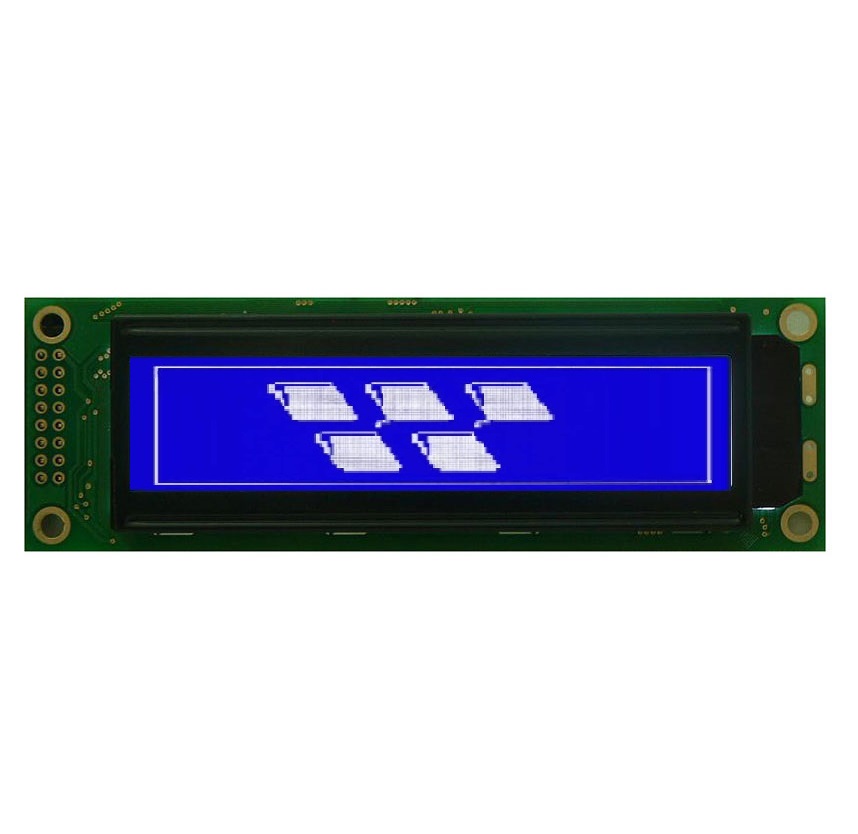

WG19232C5-TMI-VGB#

Graphic LCD 3.2'' 192x32, B/L white, STN blue neg, COB, 5V, Interface 6800/SPI, 6 O'clock, VNEG (simplified chinese)

DESCRIPTION



WG19232C is a monochrome graphic 192x32 LCD module, diagonal 3.2” LCD display.  This display has the module dimension of 116x37 mm and AA size of 80.6x15.96 mm which is having the same mechanical size as WH2002A. This WG192x32C model is built in ST7920 controller IC, it supports 6800 8-bit parallel and SPI interface.  WG19232C3 is 3.3V power supply; WG19232C5 is 5V power supply.  WG19232C is available in various LED colors including yellow/green, blue, white, red, etc, the LED can be drive by PIN 15, PIN16. The WG19232C model supports Traditional Chinese and Simplified Chinese Font on module, if you need a same size module as WH2002A and need Chinese version, please choose this model.  Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.



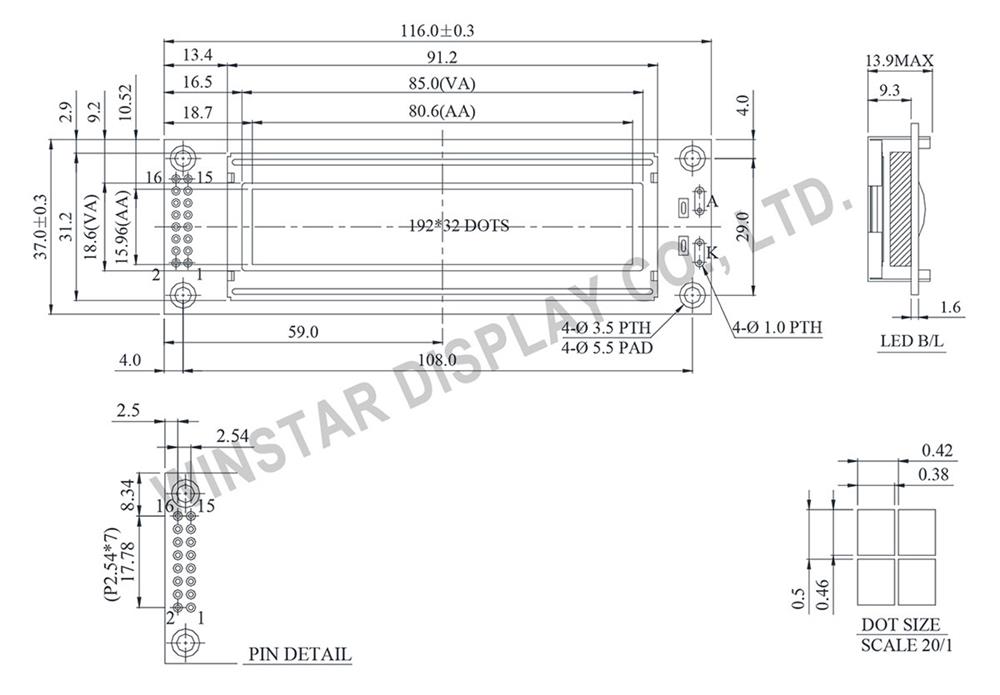

DRAWING

WG19232C - 192x32 Graphic LCD Displays - Winstar Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 116.0 × 37.0 mm
Viewing Area 85.0 × 18.6 mm
Mounting Hole 108.0 × 29.0 mm
Dot Pitch 0.42 × 0.50 mm
Dot Size 0.38 × 0.46 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 4.50 V


SKU: WG19232C5-TMI-VGB#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€21.90
€17.50
€14.50
€14.00
€13.30
€12.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€21.90 excl tax

DESCRIPTION



WG19232C is a monochrome graphic 192x32 LCD module, diagonal 3.2” LCD display.  This display has the module dimension of 116x37 mm and AA size of 80.6x15.96 mm which is having the same mechanical size as WH2002A. This WG192x32C model is built in ST7920 controller IC, it supports 6800 8-bit parallel and SPI interface.  WG19232C3 is 3.3V power supply; WG19232C5 is 5V power supply.  WG19232C is available in various LED colors including yellow/green, blue, white, red, etc, the LED can be drive by PIN 15, PIN16. The WG19232C model supports Traditional Chinese and Simplified Chinese Font on module, if you need a same size module as WH2002A and need Chinese version, please choose this model.  Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.



DRAWING

WG19232C - 192x32 Graphic LCD Displays - Winstar Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 116.0 × 37.0 mm
Viewing Area 85.0 × 18.6 mm
Mounting Hole 108.0 × 29.0 mm
Dot Pitch 0.42 × 0.50 mm
Dot Size 0.38 × 0.46 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 4.50 V


Products specifications
Brand Winstar
Size 3.2"
Resolution 192x32
Active Area (mm) 80.60x15.96
Dot Size 0.38x0.46
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800/SPI
Built-in Controller ST7920-0B
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 3.2"
Resolution 192x32
Active Area (mm) 80.60x15.96
Dot Size 0.38x0.46
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800/SPI
Built-in Controller ST7920-0B
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
