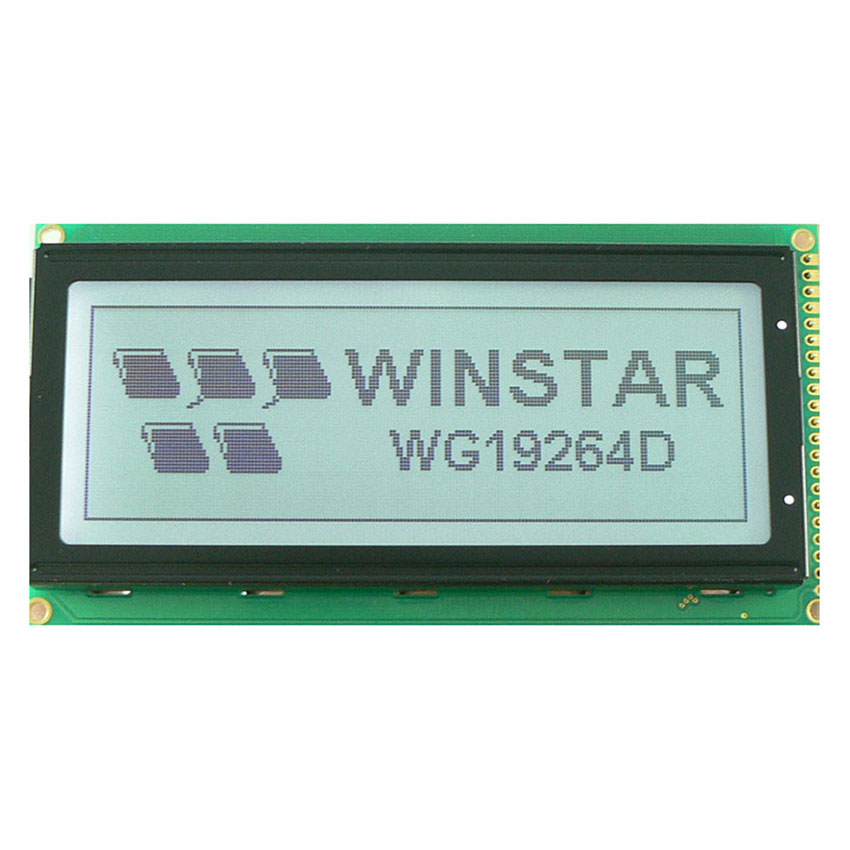

WG19264D-TFK-V#N

Graphic LCD 4'' 192x64, B/L white, FSTN white pos, COB, 5V, Interface 6800, 12 O'clock, VNEG

DESCRIPTION



WG19264D is a monochrome graphic 192x64 LCD dot matrix display which is having the module dimension of 120x62 mm and AA size of 96x32 mm. This 192x64 LCD display is built in with NT7108 and NT7107 IC; it communicates via 6800 8-bit parallel interface; 5V power supply and 3.3V negative voltage optional. This WG19264D module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

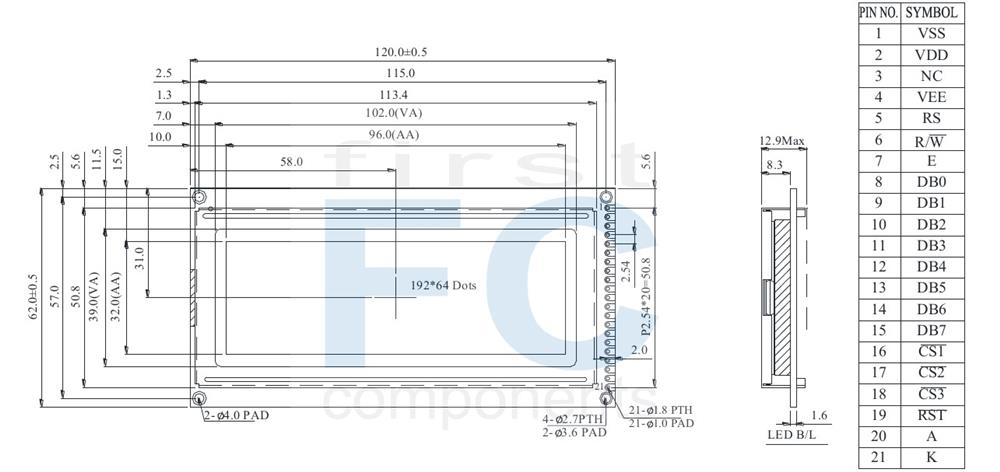

WG19264D - 192x64 LCD Graphic Displays Drawing

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 NC No connection
4 Vee Negative Voltage Output
5 RS Data/ Instruction select signal
6 R/W Read/Write select signal
7 E Enable signal
8~15 DB0~DB7 Data bus line
16 /CS1 Chip select IC1 ( Column 1 ~ 64)
17 /CS2 Chip select IC2 ( Column 65 ~ 128)
18 /CS3 Chip select IC3 ( Column 128 ~ 192)
19 /RST Controller reset signal, Active Low
20 A Power supply for B/L +
21 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 120.0 × 62.0 mm
Viewing Area 102.0 × 39.0 mm
Mounting Hole 115.0 × 57.0 mm
Dot Pitch 0.50 × 0.50 mm
Dot Size 0.46 × 0.46 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.55 V


SKU: WG19264D-TFK-V#N
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€26.00
€20.80
€16.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€26.00 excl tax

DESCRIPTION



WG19264D is a monochrome graphic 192x64 LCD dot matrix display which is having the module dimension of 120x62 mm and AA size of 96x32 mm. This 192x64 LCD display is built in with NT7108 and NT7107 IC; it communicates via 6800 8-bit parallel interface; 5V power supply and 3.3V negative voltage optional. This WG19264D module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

WG19264D - 192x64 LCD Graphic Displays Drawing

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 NC No connection
4 Vee Negative Voltage Output
5 RS Data/ Instruction select signal
6 R/W Read/Write select signal
7 E Enable signal
8~15 DB0~DB7 Data bus line
16 /CS1 Chip select IC1 ( Column 1 ~ 64)
17 /CS2 Chip select IC2 ( Column 65 ~ 128)
18 /CS3 Chip select IC3 ( Column 128 ~ 192)
19 /RST Controller reset signal, Active Low
20 A Power supply for B/L +
21 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 120.0 × 62.0 mm
Viewing Area 102.0 × 39.0 mm
Mounting Hole 115.0 × 57.0 mm
Dot Pitch 0.50 × 0.50 mm
Dot Size 0.46 × 0.46 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.55 V


Products specifications
Brand Winstar
Size 4.05"
Resolution 192x64
Active Area (mm) 96.00x32.00
Dot Size 0.46x0.46
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Interface 6800
Built-in Controller NT7107, NT7108
Structure COB
View Angle 12H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 21
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.05"
Resolution 192x64
Active Area (mm) 96.00x32.00
Dot Size 0.46x0.46
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Interface 6800
Built-in Controller NT7107, NT7108
Structure COB
View Angle 12H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 21
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
