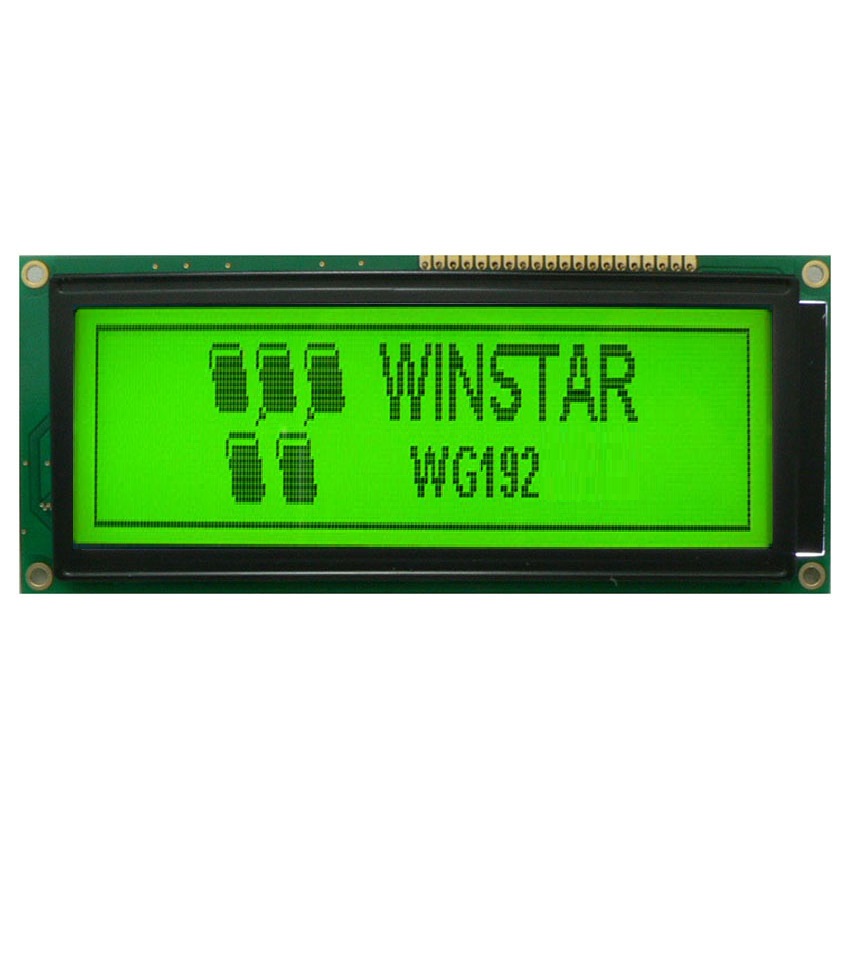

WG19264E-YYH-V#N

Graphic LCD 5" 192x64, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG

MOQ

After sample PO, MP MOQ 1000pcs

DESCRIPTION

WG19264E is a monochrome 192x64 graphic LCD display module which is having the module dimension of 150x62.5 mm and AA size of 120x40.28 mm. This LCD display is built in with NT7108 and NT7107 IC; it communicates via 6800 8-bit parallel interface; 5V power supply. This WG19264E module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

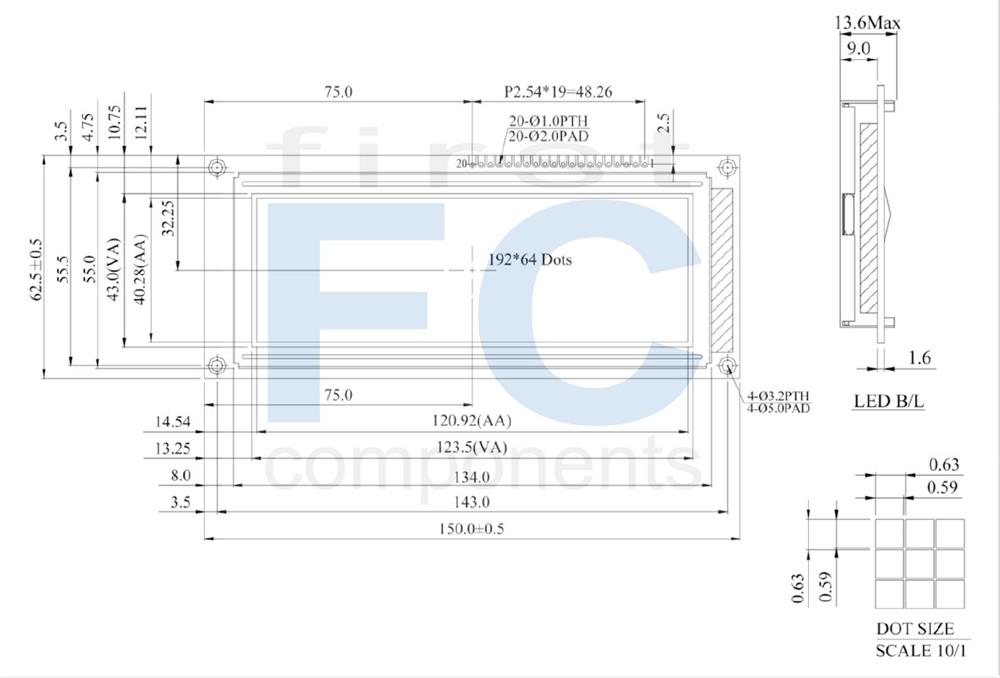

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground
2	VDD	Power supply for logic
3	VO	Contrast Adjustment
4	RS	Data/ Instruction select signal
5	R/W	Read/Write select signal
6	E	Enable signal
7~14	DB0~DB7	Data bus line
15	/CS1	Chip select IC1 ( Column 1 ~ 64)
16	/RST	Controller reset signal, Active Low
17	/CS2	Chip select IC2 ( Column 65 ~ 128)
18	/CS3	Chip select IC3 ( Column 128 ~ 192)
19	VEE	Negative Voltage Output
20	A	Power supply for B/L +

Mechanical Data

Item	Standard Value	Unit
Module Dimension	150.0 × 62.5	mm
Viewing Area	123.5 × 43.0	mm
Mounting Hole	143.0 × 55.5	mm
Dot Pitch	0.63 × 0.63	mm
Dot Size	0.59 × 0.59	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	---	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	12.4	V

SKU: WG19264E-YYH-V#N

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

Price

€40.50

€33.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005
