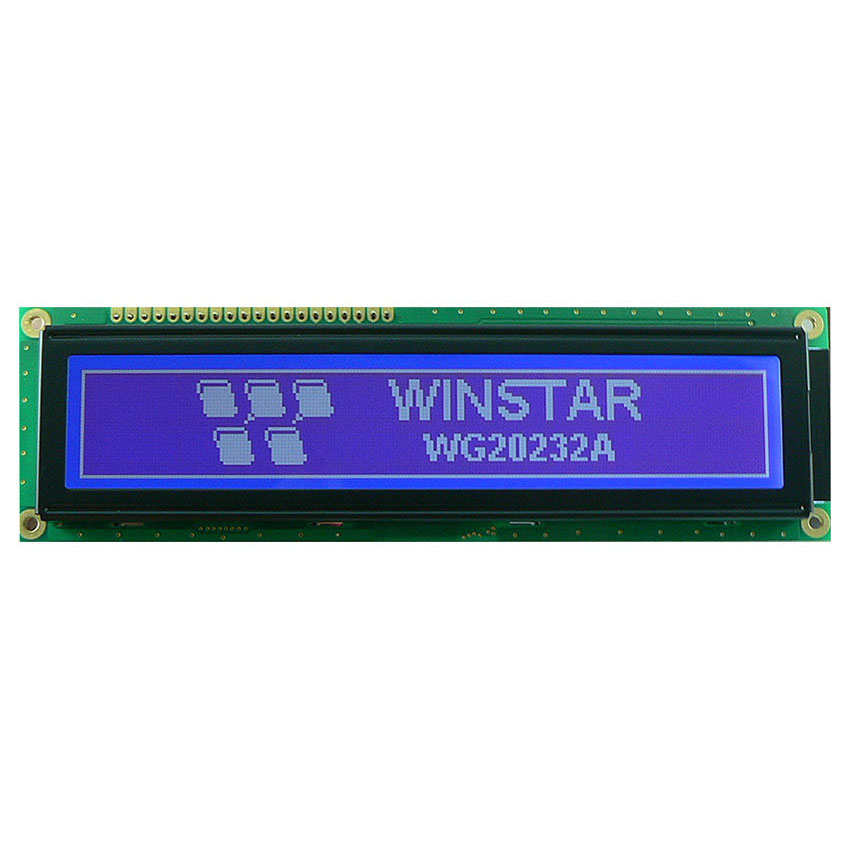

WG20232A-TMI-V#A

Graphic LCD 4.75'' 202x32, B/L white, STN blue neg, COB, 5V, Interface 6800/8080, 6 O'clock, VNEG

DESCRIPTION



WG20232A is a 202x32 monochrome graphic display which is having the module dimension 146x43 mm and Active area size of 119.16x18.86 mm. This LCD 202x32 display module is built in with SBN1661G controller IC or compatible controller.  It supports 6800 / 8080 8-bit parallel interface and 5V power supply; it also Negative Voltage optional.  WG20232A type is built in oscillation.  This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


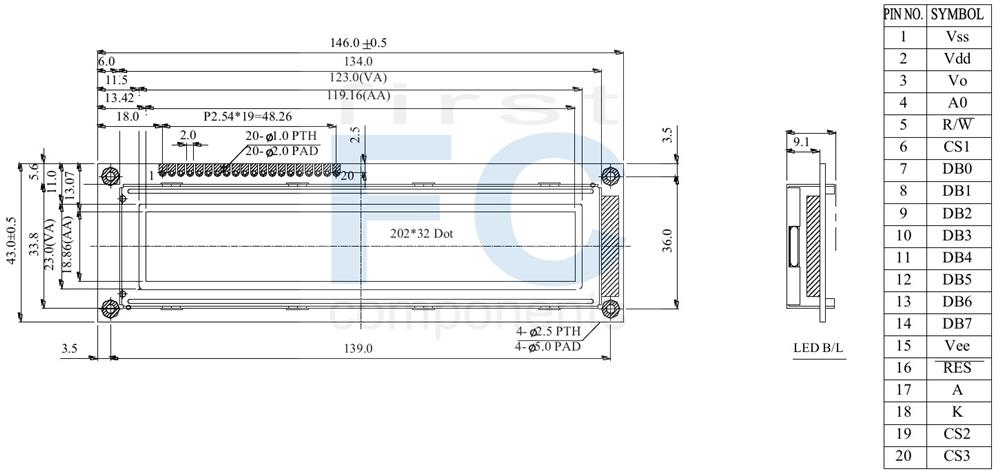

DRAWING

Winstar LCD 202x32, Monochrome Graphic Display - WG20232A

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction select signal
5 R/W Read/Write select signal
6 CS1 Chip Select Signal for IC1
7~14 DB0~DB7 Data bus line
15 VEE Negative Voltage Output
16 RES Controller reset signal, Active Low
17 A Power supply for B/L +
18 K Power supply for B/L -
19 CS2 Chip Select Signal for IC2
20 CS3 Chip Select Signal for IC3



Mechanical Data

ItemStandard ValueUnit
Module Dimension 146.0 × 43.0 mm
Viewing Area 123.0 × 23.0 mm
Mounting Hole 139.0 × 36.0 mm
Dot Pitch 0.59 × 0.59 mm
Dot Size 0.57 × 0.57 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 5.0 V


SKU: WG20232A-TMI-V#A
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€24.50
€19.60
€15.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€24.50 excl tax

DESCRIPTION



WG20232A is a 202x32 monochrome graphic display which is having the module dimension 146x43 mm and Active area size of 119.16x18.86 mm. This LCD 202x32 display module is built in with SBN1661G controller IC or compatible controller.  It supports 6800 / 8080 8-bit parallel interface and 5V power supply; it also Negative Voltage optional.  WG20232A type is built in oscillation.  This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

Winstar LCD 202x32, Monochrome Graphic Display - WG20232A

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction select signal
5 R/W Read/Write select signal
6 CS1 Chip Select Signal for IC1
7~14 DB0~DB7 Data bus line
15 VEE Negative Voltage Output
16 RES Controller reset signal, Active Low
17 A Power supply for B/L +
18 K Power supply for B/L -
19 CS2 Chip Select Signal for IC2
20 CS3 Chip Select Signal for IC3



Mechanical Data

ItemStandard ValueUnit
Module Dimension 146.0 × 43.0 mm
Viewing Area 123.0 × 23.0 mm
Mounting Hole 139.0 × 36.0 mm
Dot Pitch 0.59 × 0.59 mm
Dot Size 0.57 × 0.57 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 5.0 V


Products specifications
Brand Winstar
Size 4.75"
Resolution 202x32
Active Area (mm) 119.16x18.86
Dot Size 0.57x0.57
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800/8080
Built-in Controller SBN1661G
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
