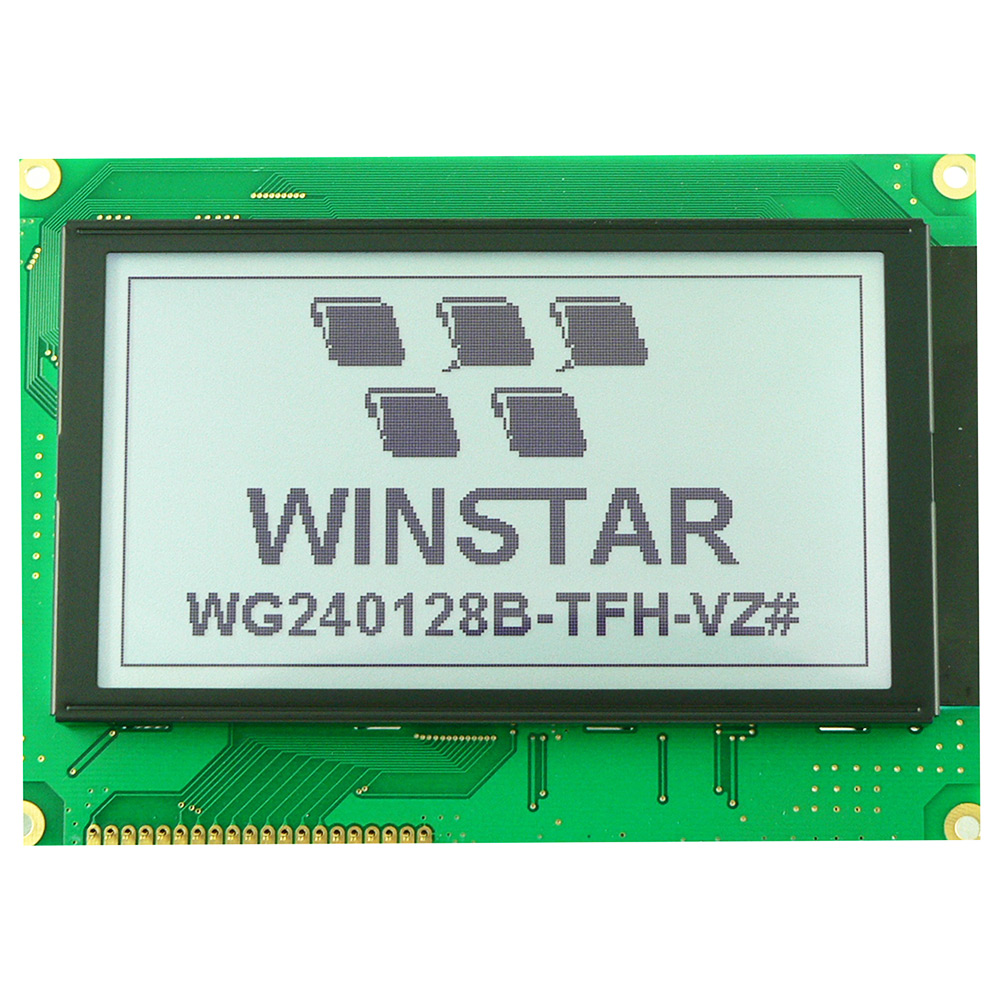

WG240128B-TFH-VZ#020

Graphic LCD 4.8'' 240x128, B/L white, FSTN white pos, COB, 5V, Interface 8080, 6 O'clock, VNEG, Resistive touch panel

DESCRIPTION



WG240128B is a 240 x 128 graphic LCD module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240x128 graphic LCD module is built in with RA6963 controller and negative voltage built in on module.  It supports 8080 8-bit parallel interface and 5V power supply, this module is temperature compensation optional, and touch panel optional.  WG240128B module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. Resistive touch panel integrated on board.

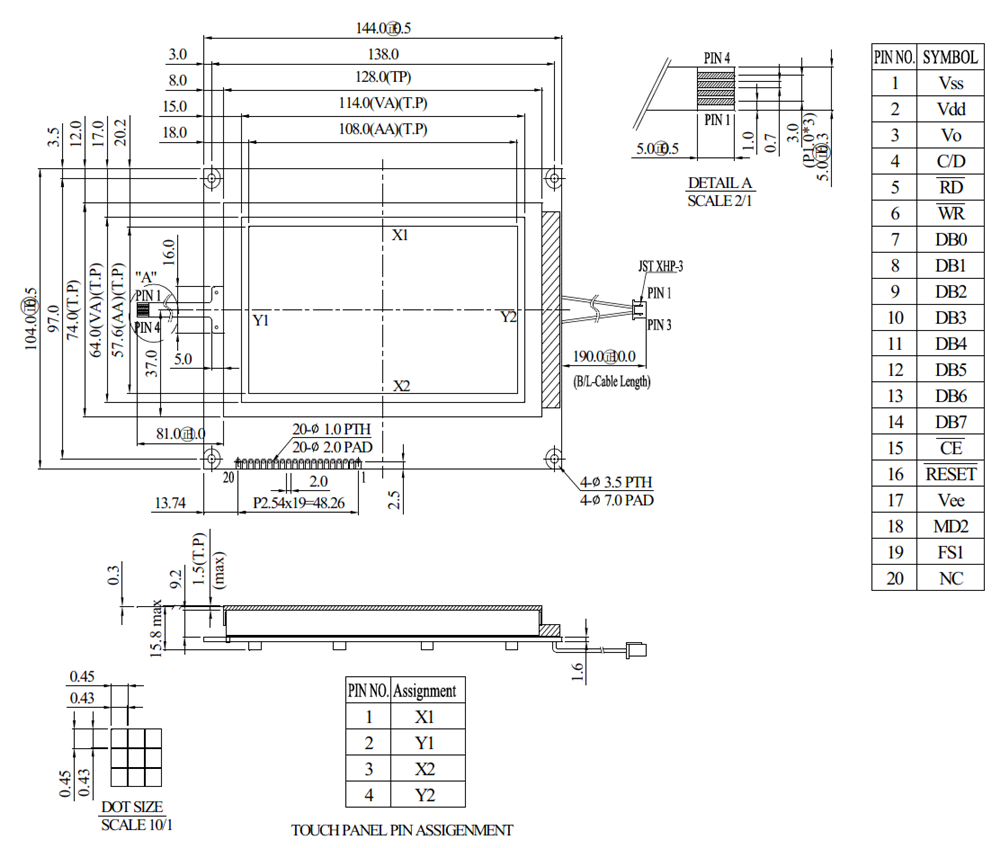

DRAWING







SKU: WG240128B-TFH-VZ#020
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
50+
100+
300+
500+
Price
€67.50
€59.60
€49.80
€45.90
€43.20
€38.50
€37.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€67.50 excl tax

DESCRIPTION



WG240128B is a 240 x 128 graphic LCD module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240x128 graphic LCD module is built in with RA6963 controller and negative voltage built in on module.  It supports 8080 8-bit parallel interface and 5V power supply, this module is temperature compensation optional, and touch panel optional.  WG240128B module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. Resistive touch panel integrated on board.


DRAWING







Products specifications
Brand Winstar
Size 4.8"
Resolution 240x128
Active Area (mm) 107.98x57.58
Dot Size 0.43x0.43
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Interface 8080
Built-in Controller RA6963
Structure COB
View Angle 6H
Frame Yes
Touch Panel RTP Integrated
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Download
Products specifications
Brand Winstar
Size 4.8"
Resolution 240x128
Active Area (mm) 107.98x57.58
Dot Size 0.43x0.43
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Interface 8080
Built-in Controller RA6963
Structure COB
View Angle 6H
Frame Yes
Touch Panel RTP Integrated
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
