WG240128B-TMI-VZ#351

Graphic LCD 4.8" 240x128, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 8080, 6 O'clock, VNEG, Resistive touch panel

RECOMMENDED ONLY AS SPARE PARTS

For new projects please check the related products below or contact us for alternative parts at sales@first-components.com.

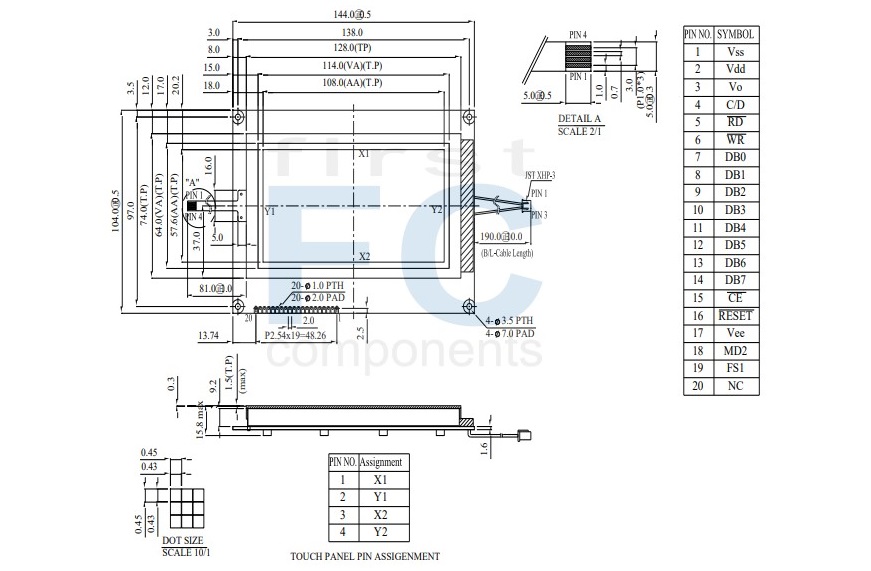

DRAWING







SPECIFICATIONS



Interface

LCM Pin Definition

Pin No.

Symbol

Level

Description

1

Vss

GND

2

Vdd

Power supply

3

Vo

Power supply for LCD driver

4

C/D

H / L

WR=L , C/D=H : Command Write   C/D=L: Data write

RD=L , C/D=H : Status Read   C/D=L: Data read

5

/RD

L

Data read. Read data from RA6963 when RD = L

6

/WR

L

Data write. Write data into RA6963 when WR = L

7

DB0

H / L

Data bus line

8

DB1

H / L

Data bus line

9

DB2

H / L

Data bus line

10

DB3

H / L

Data bus line

11

DB4

H / L

Data bus line

12

DB5

H / L

Data bus line

13

DB6

H / L

Data bus line

14

DB7

H / L

Data bus line

15

/CE

L

L : Chip enable

16

/RESET

H / L

H : Normal ; L : Initialize RA6963

17

Vee

Negative Voltage output

18

MD2

H / L

H: 32 columns ; L: 40 columns

19

FS1

H / L

Pins for selection of font ; H : 6 * 8 , L : 8 * 8

20

NC

No connection



General Specification

Item

Dimension

Unit

Number of dots

240 x 128

-

Module dimension

144.0 x 104.0 x 15.8(MAX)

mm

View area

114.0 x 64.0

mm

Active area

107.98 x 57.58

mm

Dot size

0.43 x 0.43

mm

Dot pitch

0.45 x 0.45

mm

LCD type

STN Negative, Blue    Transmissive

(In LCD production, It will occur slightly color difference. We can only guarantee the same color in the same batch.)

Duty

1/128

View direction

6 o’clock

Backlight Type

LED ,White

IC

RA6963



Absolute Maximum Ratings

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C

Input Voltage

VIN

-0.3

-

VDD+0.3

V

Supply Voltage For Logic

VDD-VSS

-0.3

-

+7.0

V



Electrical Characteristics

Item

Symbol

Condition

Min

Typ

Max

Unit

Supply Voltage For Logic

VDD-VSS

-

3.0

-

5.5

V

Supply Voltage For LCD

*Note

VDD-V0

Ta=-20°C
Ta=25°C
Ta=70°C

-

18.9

17.8

-

19.5

-

21.6

20.1

-

V
V
V

Input High Volt.

VIH

-

0.8VDD

-

VDD

V

Input Low Volt.

VIL

-

0

-

0.2 VDD

V

Output High Volt.

VOH

-

VDD-0.3

-

VDD

V

Output Low Volt.

VOL

-

0

-

0.3

V

Supply Current

IDD

-

42.0

55.0

60.0

mA



Optical Characteristics

Item

Symbol

Condition

Min

Typ

Max

Unit

View Angle

8

CR≧2

0

-

20

qi = 180°

8

CR≧2

0

-

40

qi = 0°

8

CR≧2

0

-

30

qi = 90°

8

CR≧2

0

-

30

qi = 270°

Contrast Ratio

CR

-

-

3

-

-

Response Time

T rise

-

-

200

300

ms

T fall

-

-

250

350

ms



SKU: WG240128B-TMI-VZ#351
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€66.90
€60.20
€57.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005
