WG240128E-TMI-VZ#

Graphic LCD 4.8" 240x128, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 8080, 6 O'clock, VNEG

DESCRIPTION

WG240128E is a graphic LCD 240x128 module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240128 display LCD modules is built in with RA6963 controller and negative voltage output built in on module. It supports 8080 8-bit parallel interface and 5V power supply nd 3.3V optional, this module is temperature compensation optional, and touch panel optional as well. Please note the standard WG240128E is 18 pins on board, if you need 20-pins; please choose WG240128EP1 type.

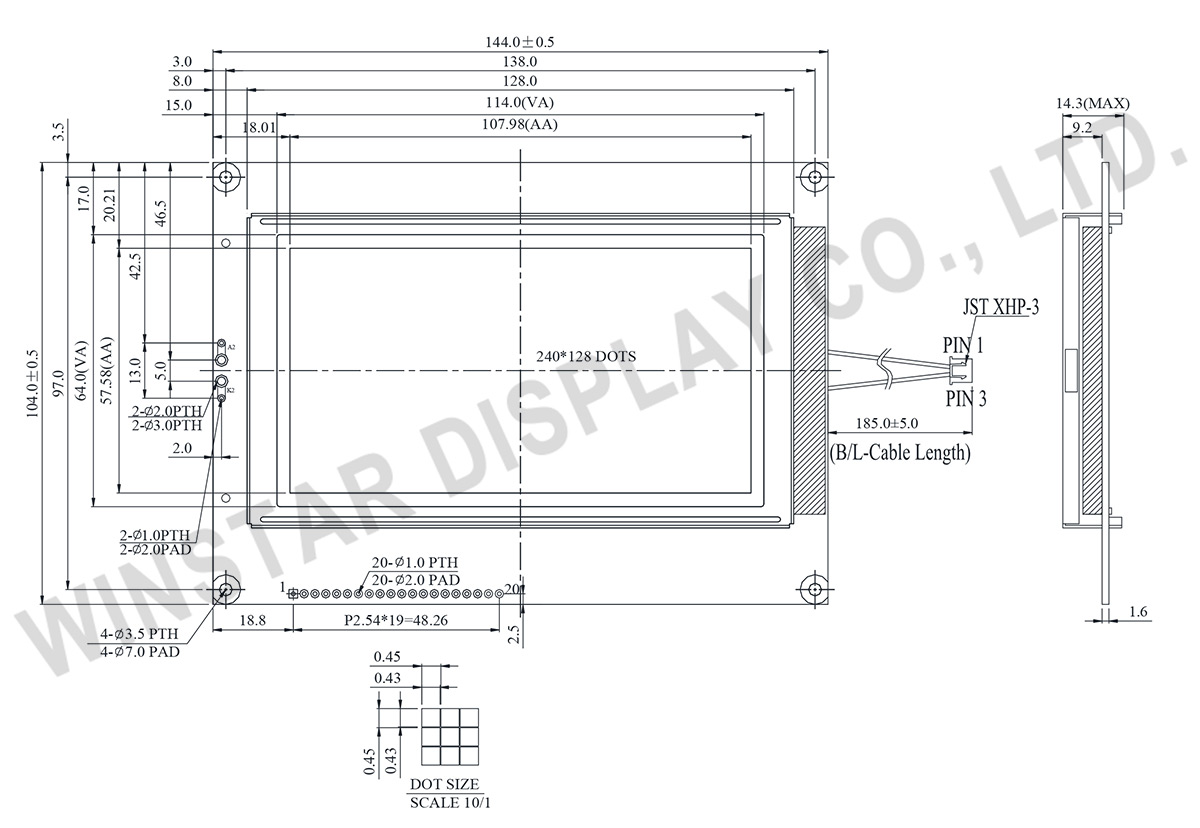

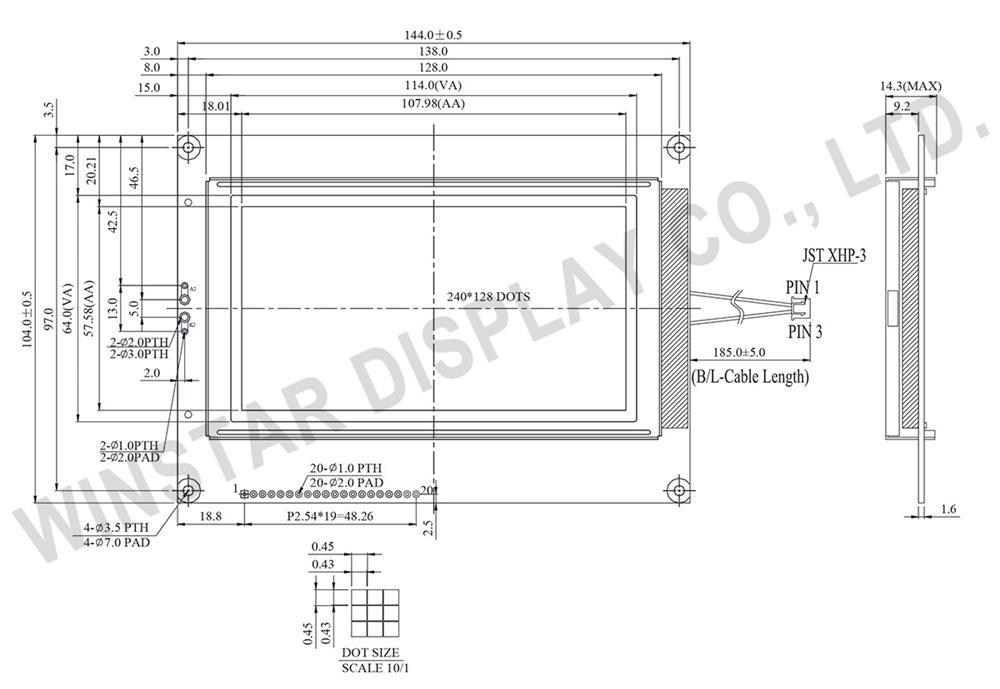

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Function
1	Vee	-	Negative Voltage Output
2	Vss	-	GND
3	Vdd	-	Power supply
4	Vo	-	Power supply for LCD driver
5	/WR	L	Data write. Write data into RA6963when WR = L
6	/RD	L	Data read. Read data from RA6963when RD = L
7	/CE	L	L : Chip enable
8	C/D	H / L	WR=L , C/D=H : Command Write C/D=L: Data write RD=L , C/D=H : Status Read C/D=L: Data read
9	RST	-	Display Data signal
10	DB0	H / L	Data bus line
11	DB1	H / L	Data bus line
12	DB2	H / L	Data bus line
13	DB3	H / L	Data bus line
14	DB4	H / L	Data bus line
15	DB5	H / L	Data bus line
16	DB6	H / L	Data bus line
17	DB7	H / L	Data bus line
18	FS	-	Pins for selection of font; H : 6 * 8 , L : 8 * 8
19	NC	-	No connection
20	NC	-	No connection

General Specification

Item	Dimension	Unit
Number of dots	240 x 128	－
Module dimension	144.0 x 104.0 x 14.3(MAX)	mm
View area	114.0 x 64.0	mm
Active area	107.98 x 57.58	mm
Dot size	0.43 x 0.43	mm
Dot pitch	0.45 x 0.45	mm
Duty	1/128
Backlight Type	LED
IC	RA6963
Interface	80 series

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	-	+70	℃
Storage Temperature	TST	-30	-	+80	℃
Input voltage	VIN	-0.3	-	VDD+0.3	V
Supply Voltage For Logic	VDD-VSS	-0.3	-	+7.0	V

Electrical Characteristics

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Supply Voltage For Logic	VDD-VSS	-	4.5	5.0	5.5	V
Supply Voltage For LCD	VOP	Ta=-20℃ Ta=25℃ Ta=70℃	－ 18.9 17.6	－ 19.5 －	21.7 20.1 －	V V V
Input High Volt.	VIH	-	0.8VDD	-	VDD	V
Input Low Volt.	VIL	-	0	-	0.15 VDD	V
Output High Volt.	VOH	-	VDD-0.3	-	VDD	V
Output Low Volt.	VOL	-	0	-	0.3	V
Supply Current	IDD	-	45	55	60	mA

SKU: WG240128E-TMI-VZ#

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€55.20

€49.70

€47.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€55.20 excl tax

Overview
Product Notifications
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Function
1	Vee	-	Negative Voltage Output
2	Vss	-	GND
3	Vdd	-	Power supply
4	Vo	-	Power supply for LCD driver
5	/WR	L	Data write. Write data into RA6963when WR = L
6	/RD	L	Data read. Read data from RA6963when RD = L
7	/CE	L	L : Chip enable
8	C/D	H / L	WR=L , C/D=H : Command Write C/D=L: Data write RD=L , C/D=H : Status Read C/D=L: Data read
9	RST	-	Display Data signal
10	DB0	H / L	Data bus line
11	DB1	H / L	Data bus line
12	DB2	H / L	Data bus line
13	DB3	H / L	Data bus line
14	DB4	H / L	Data bus line
15	DB5	H / L	Data bus line
16	DB6	H / L	Data bus line
17	DB7	H / L	Data bus line
18	FS	-	Pins for selection of font; H : 6 * 8 , L : 8 * 8
19	NC	-	No connection
20	NC	-	No connection

General Specification

Item	Dimension	Unit
Number of dots	240 x 128	－
Module dimension	144.0 x 104.0 x 14.3(MAX)	mm
View area	114.0 x 64.0	mm
Active area	107.98 x 57.58	mm
Dot size	0.43 x 0.43	mm
Dot pitch	0.45 x 0.45	mm
Duty	1/128
Backlight Type	LED
IC	RA6963
Interface	80 series

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	-	+70	℃
Storage Temperature	TST	-30	-	+80	℃
Input voltage	VIN	-0.3	-	VDD+0.3	V
Supply Voltage For Logic	VDD-VSS	-0.3	-	+7.0	V

Electrical Characteristics

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Supply Voltage For Logic	VDD-VSS	-	4.5	5.0	5.5	V
Supply Voltage For LCD	VOP	Ta=-20℃ Ta=25℃ Ta=70℃	－ 18.9 17.6	－ 19.5 －	21.7 20.1 －	V V V
Input High Volt.	VIH	-	0.8VDD	-	VDD	V
Input Low Volt.	VIL	-	0	-	0.15 VDD	V
Output High Volt.	VOH	-	VDD-0.3	-	VDD	V
Output Low Volt.	VOL	-	0	-	0.3	V
Supply Current	IDD	-	45	55	60	mA

Date	Notice	Link/Description
2021/03/18	PCN	RAIO IC RA6963-N > RA6963-N1 for monochrome COB LCDs

For more details, please contact us @ [email protected]

Products specifications

Brand	Winstar
Size	4.8"
Resolution	240x128
Active Area (mm)	107.98x57.58
Dot Size	0.43x0.43
B/L color, LCD type	B/L white, STN blue neg
Power supply	5V
Display Interface	8080
Display IC	RA6963
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	20
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
