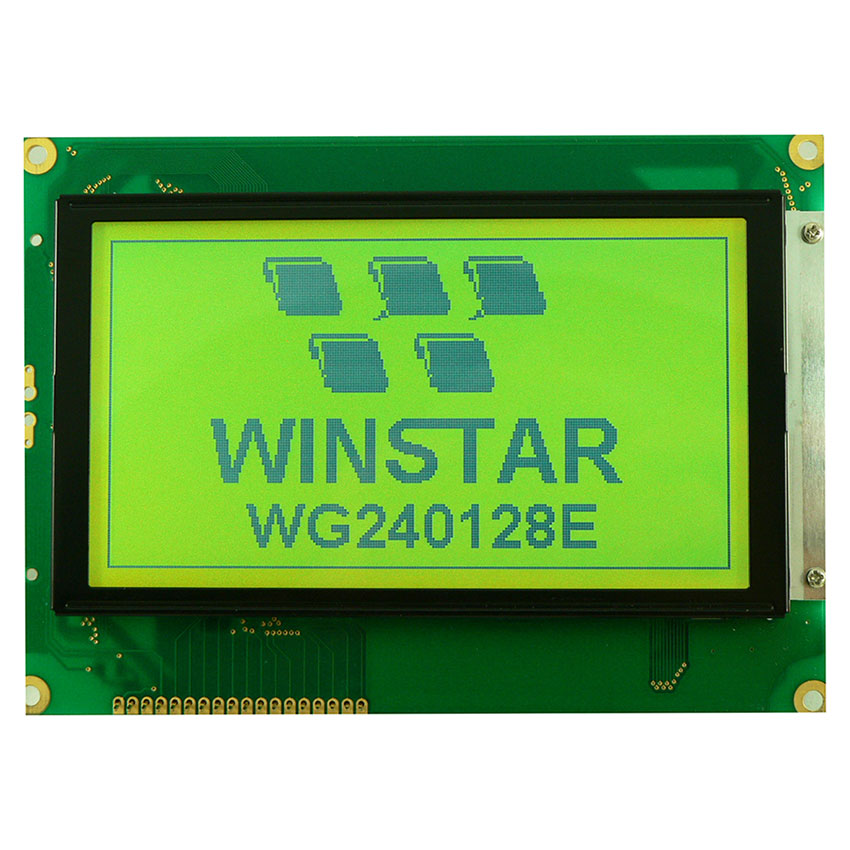

WG240128E-YYH-V#Y

Graphic LCD 4.8'' 240x128, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 8080, 6 O'clock, VNEG

DESCRIPTION



WG240128E is a graphic LCD 240x128 module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240128 display LCD modules is built in with RA6963 controller and negative voltage output built in on module.  It supports 8080 8-bit parallel interface and 5V power supply nd 3.3V optional, this module is temperature compensation optional, and touch panel optional as well. Please note the standard WG240128E is 18 pins on board, if you need 20-pins; please choose WG240128EP1 type.


DRAWING

Winstar Graphic Displays LCD 240x128 - WG240128E

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VEE Negative Voltage Output
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7 /CE Enable signal
8 C/D Data/ Instruction select signal
9 RST Controller reset signal, Active Low
10~17 DB0~DB7 Data bus line
18 FS Selection of font; H : 6 * 8 , L : 8 * 8



Mechanical Data

ItemStandard ValueUnit
Module Dimension 144.0 x 104.0 mm
Viewing Area 114.0 x 64.0 mm
Mounting Hole 138.0 x 97.0 mm
Dot Pitch 0.45 x 0.45 mm
Dot Size 0.43 x 0.43 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 19.5 V


SKU: WG240128E-YYH-V#Y
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
50+
Price
€58.80
€52.00
€42.80
€41.40
€40.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€58.80 excl tax

DESCRIPTION



WG240128E is a graphic LCD 240x128 module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240128 display LCD modules is built in with RA6963 controller and negative voltage output built in on module.  It supports 8080 8-bit parallel interface and 5V power supply nd 3.3V optional, this module is temperature compensation optional, and touch panel optional as well. Please note the standard WG240128E is 18 pins on board, if you need 20-pins; please choose WG240128EP1 type.


DRAWING

Winstar Graphic Displays LCD 240x128 - WG240128E

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VEE Negative Voltage Output
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7 /CE Enable signal
8 C/D Data/ Instruction select signal
9 RST Controller reset signal, Active Low
10~17 DB0~DB7 Data bus line
18 FS Selection of font; H : 6 * 8 , L : 8 * 8



Mechanical Data

ItemStandard ValueUnit
Module Dimension 144.0 x 104.0 mm
Viewing Area 114.0 x 64.0 mm
Mounting Hole 138.0 x 97.0 mm
Dot Pitch 0.45 x 0.45 mm
Dot Size 0.43 x 0.43 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 19.5 V


Products specifications
Brand Winstar
Size 4.8"
Resolution 240x128
Active Area (mm) 107.98x57.58
Dot Size 0.43x0.43
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 8080
Display IC Controller NT0086
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 18
Pin Pitch 2.54mm
