WG320240B-TFH-TZ#

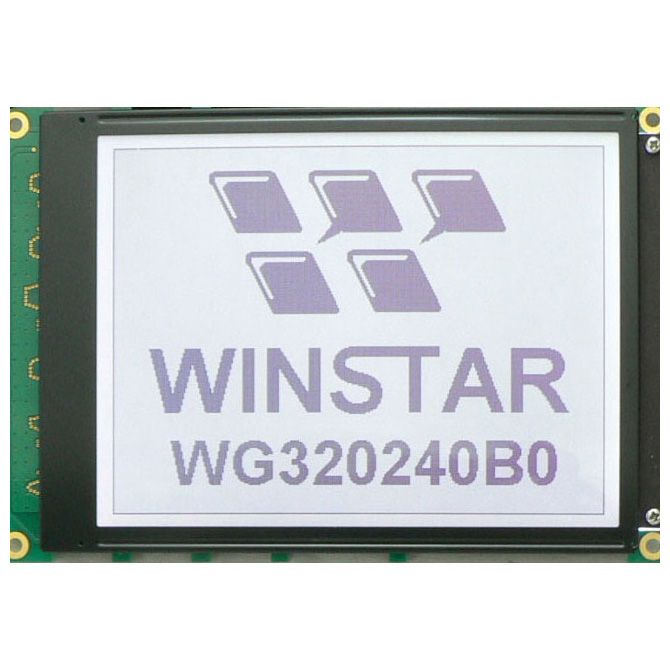

Picture of WG320240B-TFH-TZ#

Graphic LCD 5.7" 320x240, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800/8080, 6 O'clock, VNEG, Temperature compensator

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

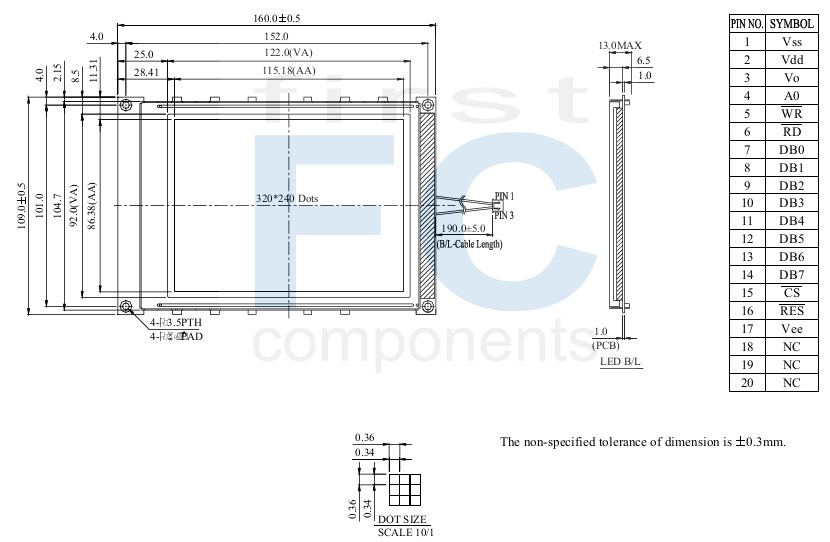

DRAWING

SKU: WG320240B-TFH-TZ#

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector

Price Breaks

Quantity

1+

5+

10+

Price

€79.20

€71.30

€67.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€79.20 excl tax

Overview
Specifications
Download
Contact Us

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DRAWING

Products specifications

Brand	Winstar
Size	5.7"
Resolution	320x240
Active Area (mm)	115.18x86.38
Dot Size	0.34x0.34
B/L color, LCD type	B/L white, FSTN white pos
Power supply	5V
Display Interface	6800/8080
Display IC	RA8835
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	ZIF Connector
Pin Nr.	20
Pin Pitch	1mm
Preferred - Not Preferred	Not Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Winstar
Size	5.7"
Resolution	320x240
Active Area (mm)	115.18x86.38
Dot Size	0.34x0.34
B/L color, LCD type	B/L white, FSTN white pos
Power supply	5V
Display Interface	6800/8080
Display IC	RA8835
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	ZIF Connector
Pin Nr.	20
Pin Pitch	1mm
Preferred - Not Preferred	Not Preferred
