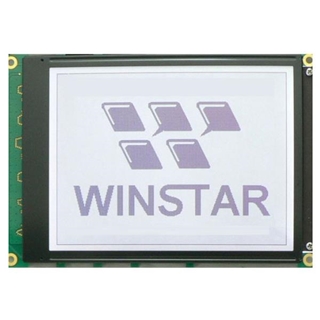

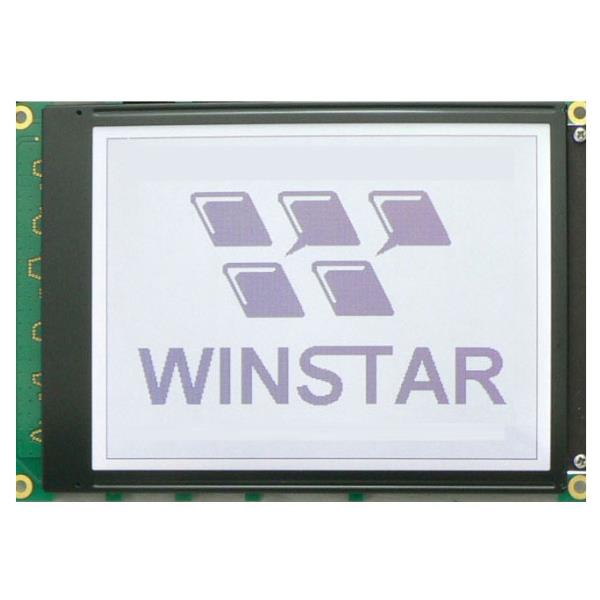

WG320240B-TFH-TZ#010

Graphic LCD 5.7" 320x240, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800/8080, 6 O'clock, VNEG, Temperature compensator, With PCB Coating

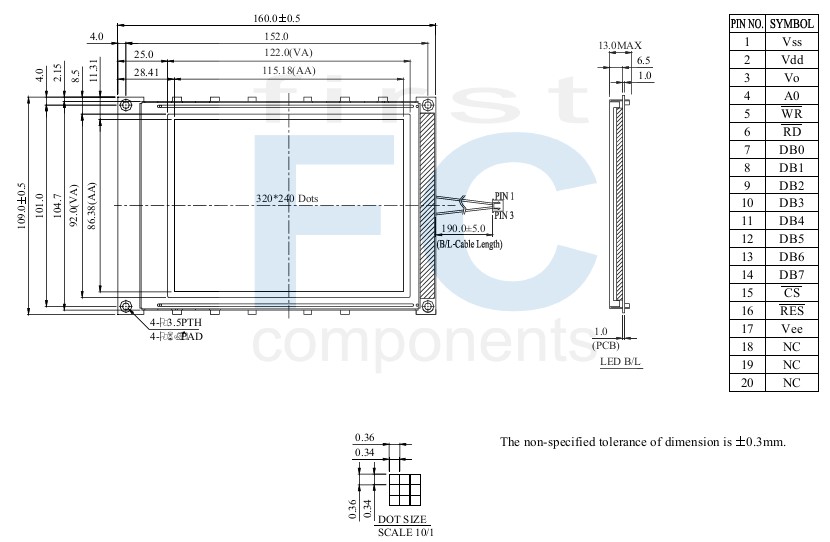

DRAWING

SPECIFICATIONS

Interface Description

Pin No.	Symbol	Level	Description
1	V_SS	0V	Ground
2	V_DD	5.0V	Power supply for Logic
3	V_O	(Varialbel)	Driving voltage for LCD
4	A0	H/L	RD=L WR=H, A0=L: Data Read AO=H: Status read RD=H WR=L, A0=L: Data Write AO=H: Command write
5	WR	H/L	8080 family: Write signal, 6800 familiy: R/W signal
6	RD	H/L	8080 familiy: Read signal, 6800 family: Enable clock
7~14	DB0~DB7	H/L	Data bus
15	CS	H/L	Chip select, Active L
16	RES	H/L	Controller reset signal. Active L
17	VEE		Negative voltage output (Optional)
18	SEL1		H_ 6800, L: 8080
19	FGND		Frame Ground
20	NC		No connection

General Specifications

Item	Standard Value	Unit
Number of dots	320x240	dots
Outline dimension	160.0(W)x109.0(H)x11.0max(T)	mm
View area	122.0(W)x92.0(H)	mm
Active area	115.18(W)x86.38(H)	mm
Dot size	0.34(W)x0.34(H)	mm
Dot pitch	0.36(W)x0.36(H)	mm
LCD type	FSTN, Positive. Transflective
View direction	6 o'clock
Backlight	LED, White

Absolute Maximum Ratings

Parameter	Symbol	Min	Typ.	Max	Unit
Operating Temperature	T_OP	-20	-	+70	°C
Storage Temperature	T_ST	-30	-	+80	°C
Input Voltage	V_I	0	-	V_DD	V
Supply Voltage For Logic	V_DD	0	-	6.5	V
Supply Voltage For LCD	V_DD~V_EE	0	-	32	V

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Logic Voltage	V_DD-V_SS	-	4.5	5.0	5.5	V
Supply Voltage For LCD	V_DD-V_O	Ta=20°C Ta=25°C Ta=+70°C	- - 22.1	- 24.0 -	26.5 - -	V V V
Input High Volt.	V_IH	-	0.5_VDD	-	V_DD	V
Input Low Volt.	V_IL	-	V_SS	－	0.2V_DD	V
Output High Volt.	V_OH	-	2.4	－	-	V
Output Low Volt.	V_OL	-	-	－	0.4	V
Supply Current	I_DD	-	95.0	100.0	110.0	mA

SKU: WG320240B-TFH-TZ#010

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector

Price Breaks

Quantity

10+

Price

€80.90

€72.90

€69.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€80.90 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

SPECIFICATIONS

Interface Description

Pin No.	Symbol	Level	Description
1	V_SS	0V	Ground
2	V_DD	5.0V	Power supply for Logic
3	V_O	(Varialbel)	Driving voltage for LCD
4	A0	H/L	RD=L WR=H, A0=L: Data Read AO=H: Status read RD=H WR=L, A0=L: Data Write AO=H: Command write
5	WR	H/L	8080 family: Write signal, 6800 familiy: R/W signal
6	RD	H/L	8080 familiy: Read signal, 6800 family: Enable clock
7~14	DB0~DB7	H/L	Data bus
15	CS	H/L	Chip select, Active L
16	RES	H/L	Controller reset signal. Active L
17	VEE		Negative voltage output (Optional)
18	SEL1		H_ 6800, L: 8080
19	FGND		Frame Ground
20	NC		No connection

General Specifications

Item	Standard Value	Unit
Number of dots	320x240	dots
Outline dimension	160.0(W)x109.0(H)x11.0max(T)	mm
View area	122.0(W)x92.0(H)	mm
Active area	115.18(W)x86.38(H)	mm
Dot size	0.34(W)x0.34(H)	mm
Dot pitch	0.36(W)x0.36(H)	mm
LCD type	FSTN, Positive. Transflective
View direction	6 o'clock
Backlight	LED, White

Absolute Maximum Ratings

Parameter	Symbol	Min	Typ.	Max	Unit
Operating Temperature	T_OP	-20	-	+70	°C
Storage Temperature	T_ST	-30	-	+80	°C
Input Voltage	V_I	0	-	V_DD	V
Supply Voltage For Logic	V_DD	0	-	6.5	V
Supply Voltage For LCD	V_DD~V_EE	0	-	32	V

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Logic Voltage	V_DD-V_SS	-	4.5	5.0	5.5	V
Supply Voltage For LCD	V_DD-V_O	Ta=20°C Ta=25°C Ta=+70°C	- - 22.1	- 24.0 -	26.5 - -	V V V
Input High Volt.	V_IH	-	0.5_VDD	-	V_DD	V
Input Low Volt.	V_IL	-	V_SS	－	0.2V_DD	V
Output High Volt.	V_OH	-	2.4	－	-	V
Output Low Volt.	V_OL	-	-	－	0.4	V
Supply Current	I_DD	-	95.0	100.0	110.0	mA

Products specifications

Brand	Winstar
Size	5.7"
Resolution	320x240
Active Area (mm)	115.18x86.38
Dot Size	0.34x0.34
B/L color, LCD type	B/L white, FSTN white pos
Power supply	5V
Display Interface	6800/8080
Display IC	RA8835
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	ZIF Connector
Pin Nr.	20
Pin Pitch	1mm
Preferred - Not Preferred	Not Preferred
