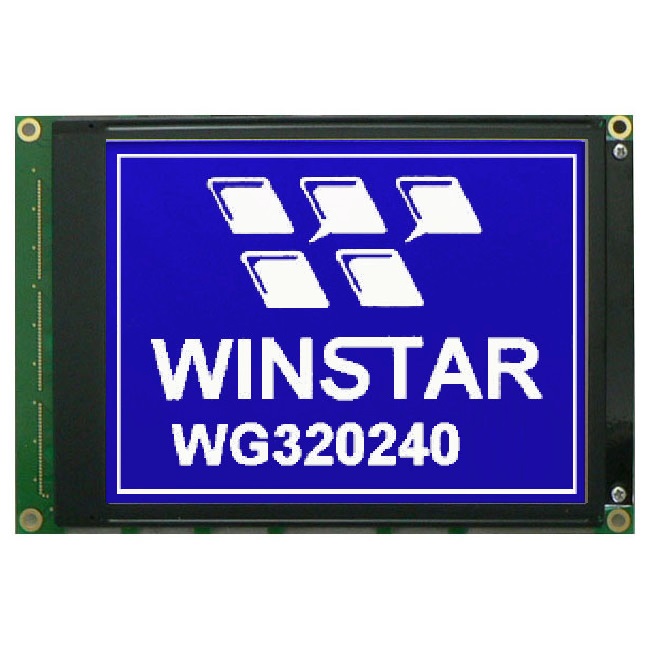

WG320240BX-TMI-VZ#

Graphic LCD 5.7'' 320x240, B/L white, STN blue neg, COB, 5V, Interface 8080, 6 O'clock, VNEG

DESCRIPTION

WG320240BX is a STN monochrome Graphic 320x240 LCD module display which is having the module dimension of 160x109 mm and AA size of 115.18x86.38 mm, diagonal size 5.7 inch.  This WG320240BX LCD display is built in with S1D13700 controller; it communicates via 6800/8080 8-bit parallel interface; 5V power supply and build in negative voltage generator and temperature compensation optional and touch panel optional.  There are three PCB versions for WG320240BX series:
  • WG320240BX: ZIF connector (CN-FPC), 20 pins
  • WG320240BP2: DIP connection, 20 pins
  • WG320240BP3: with touch panel driver, ZIF connector, 26 pins

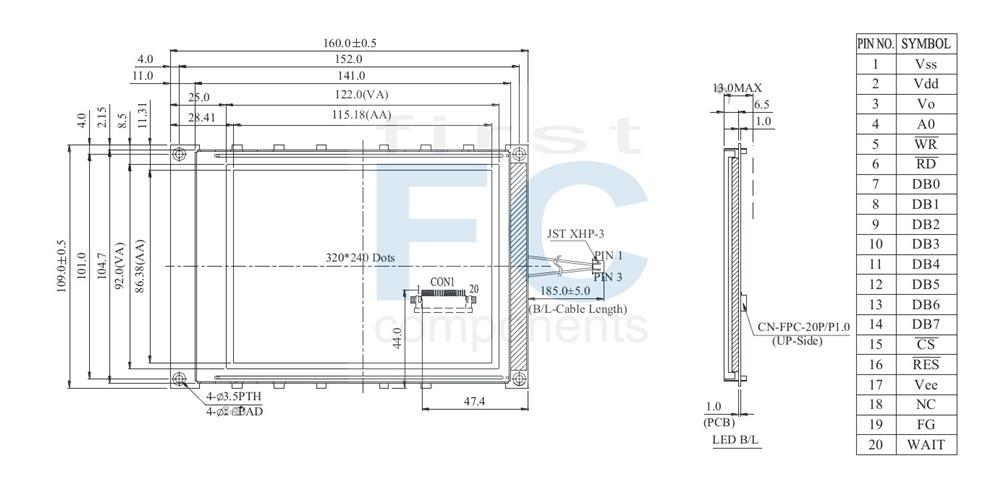

DRAWING

Winstar 320x240 LCD Module, WG320240BX 320240 LCD

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction  select signal
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7~14 DB0~DB7 Data bus line
15 CS Chip select input pins
16 RES Controller reset signal, Active Low
17 VEE Negative Voltage Output
18 SEL Interface selection 6800/8080
19 FG Frame ground
20 WAIT Check Busy



Mechanical Data

ItemStandard ValueUnit
Module Dimension 160.0 × 109.0 mm
Viewing Area 122.0 × 92.0 mm
Mounting Hole 152.0 × 101.0 mm
Dot Pitch 0.36 × 0.36 mm
Dot Size 0.34 × 0.34 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 23.6 V


SKU: WG320240BX-TMI-VZ#
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€79.00
€69.70
€67.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€79.00 excl tax

DESCRIPTION

WG320240BX is a STN monochrome Graphic 320x240 LCD module display which is having the module dimension of 160x109 mm and AA size of 115.18x86.38 mm, diagonal size 5.7 inch.  This WG320240BX LCD display is built in with S1D13700 controller; it communicates via 6800/8080 8-bit parallel interface; 5V power supply and build in negative voltage generator and temperature compensation optional and touch panel optional.  There are three PCB versions for WG320240BX series:
  • WG320240BX: ZIF connector (CN-FPC), 20 pins
  • WG320240BP2: DIP connection, 20 pins
  • WG320240BP3: with touch panel driver, ZIF connector, 26 pins



DRAWING

Winstar 320x240 LCD Module, WG320240BX 320240 LCD

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction  select signal
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7~14 DB0~DB7 Data bus line
15 CS Chip select input pins
16 RES Controller reset signal, Active Low
17 VEE Negative Voltage Output
18 SEL Interface selection 6800/8080
19 FG Frame ground
20 WAIT Check Busy



Mechanical Data

ItemStandard ValueUnit
Module Dimension 160.0 × 109.0 mm
Viewing Area 122.0 × 92.0 mm
Mounting Hole 152.0 × 101.0 mm
Dot Pitch 0.36 × 0.36 mm
Dot Size 0.34 × 0.34 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 23.6 V


Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.35
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 8080
Display IC Controller S1D13700
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 20
Pin Pitch 1mm
