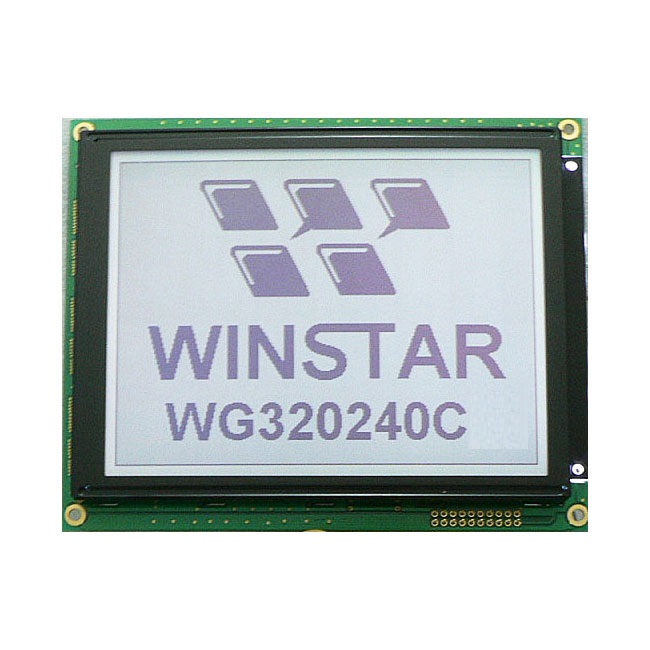

WG320240C-TFH-VZ#

Graphic LCD 5.7" 320x240, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 8080, 12 O'clock, VNEG

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].to RAiO RA8835. New version P/N WG320240C0-TMI-VZ# // Direct link in 'Related Product' section on the bottom page. We recommend the approval of at least 1pc sample of the new version before mass production purchase orders.



SKU: WG320240C-TFH-VZ#
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€99.20
€89.30
€84.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€99.20 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].to RAiO RA8835. New version P/N WG320240C0-TMI-VZ# // Direct link in 'Related Product' section on the bottom page. We recommend the approval of at least 1pc sample of the new version before mass production purchase orders.



Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.34
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 8080
Display IC NT7086PQ
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.34
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 8080
Display IC NT7086PQ
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
