WG320240C0-TMI-TZ#000

Graphic LCD 5.7" 320x240, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800/8080, 6 O'clock, VNEG, Temperature Compensator, Resistive touch panel



DRAWING

SKU: WG320240C0-TMI-TZ#000
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€106.60
€95.90
€90.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€106.60 excl tax

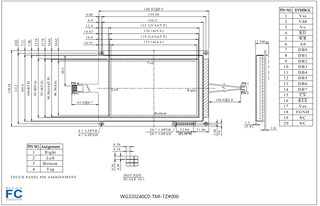

DRAWING

Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.34
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800/8080
Display IC RA8835
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.34
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800/8080
Display IC RA8835
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
