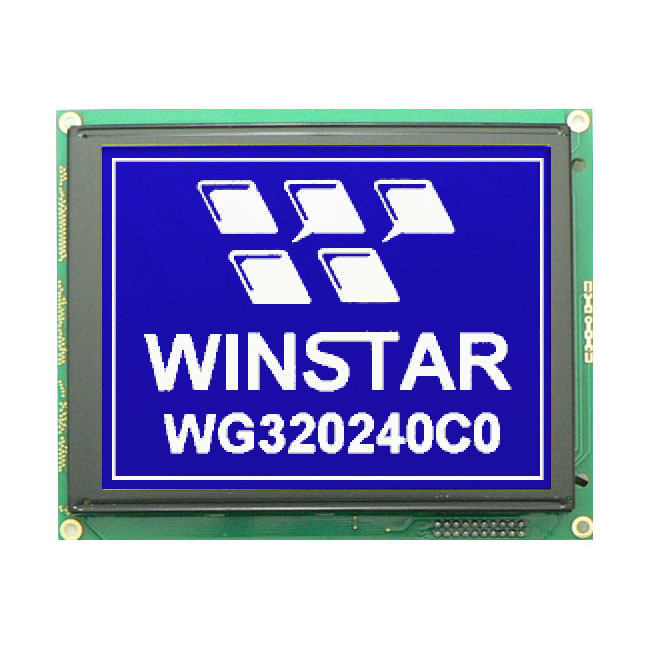

WG320240C0-TML-NZ#

Graphic LCD 5.7'' 320x240, B/L white, STN blue neg, COB, 5V, Interface 6800/8080, 12 O'clock, No VNEG

DESCRIPTION



WG320240CO is a Liquid Crystal Display 320x240 graphic module which is having the module dimension of 148.02x120.24 mm and AA size of 115.18x86.38 mm, diagonal size 5.7 inch.  This monochrome LCD display is built in with RA8835 controller; it communicates via 6800/8080 8-bit parallel interface; it built in negative voltage generator and temperature compensation optional, touch panel optional.  If customers would like to use pin 19 and pin 20 for A & K backlight, please choose WG320240Q type.


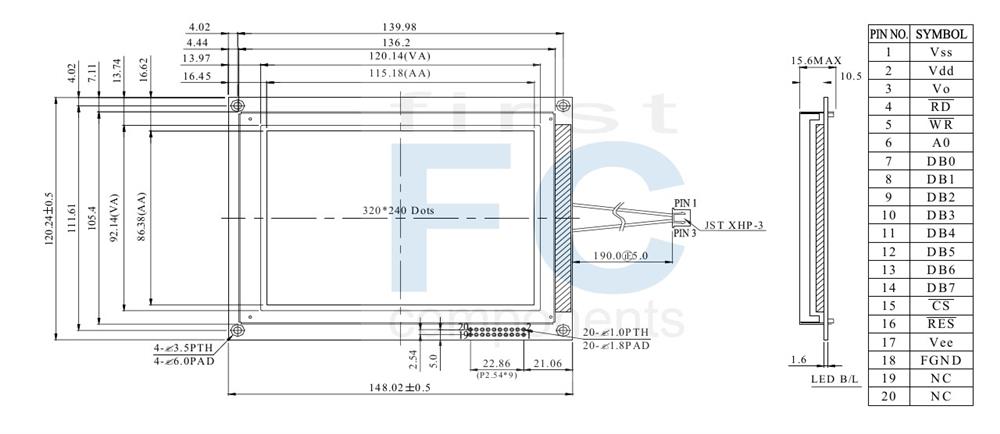

DRAWING

Winstar Liquid Crystal Display 320x240 - WG320240C0

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 /RD Data read. Read data from LCD Controller
5 /WR Data write. Write data into LCD Controller
6 A0 Data/ Instruction select signal
7~14 DB0~DB7 Data bus line
15 /CS Chip select input pins
16 /RES Controller reset signal, Active Low
17 VEE Negative Voltage Output
18 FGND Frame ground
19~20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 148.02 × 120.24 mm
Viewing Area 120.14 × 92.14 mm
Mounting Hole 139.98 × 112.2 mm
Dot Pitch 0.36 × 0.36 mm
Dot Size 0.34 × 0.34 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 23.6 V


SKU: WG320240C0-TML-NZ#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€92.70
€81.80
€64.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€92.70 excl tax

DESCRIPTION



WG320240CO is a Liquid Crystal Display 320x240 graphic module which is having the module dimension of 148.02x120.24 mm and AA size of 115.18x86.38 mm, diagonal size 5.7 inch.  This monochrome LCD display is built in with RA8835 controller; it communicates via 6800/8080 8-bit parallel interface; it built in negative voltage generator and temperature compensation optional, touch panel optional.  If customers would like to use pin 19 and pin 20 for A & K backlight, please choose WG320240Q type.


DRAWING

Winstar Liquid Crystal Display 320x240 - WG320240C0

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 /RD Data read. Read data from LCD Controller
5 /WR Data write. Write data into LCD Controller
6 A0 Data/ Instruction select signal
7~14 DB0~DB7 Data bus line
15 /CS Chip select input pins
16 /RES Controller reset signal, Active Low
17 VEE Negative Voltage Output
18 FGND Frame ground
19~20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 148.02 × 120.24 mm
Viewing Area 120.14 × 92.14 mm
Mounting Hole 139.98 × 112.2 mm
Dot Pitch 0.36 × 0.36 mm
Dot Size 0.34 × 0.34 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 23.6 V


Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.34
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800/8080
Display IC Controller RA8835
Structure COB
View Angle 12H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
