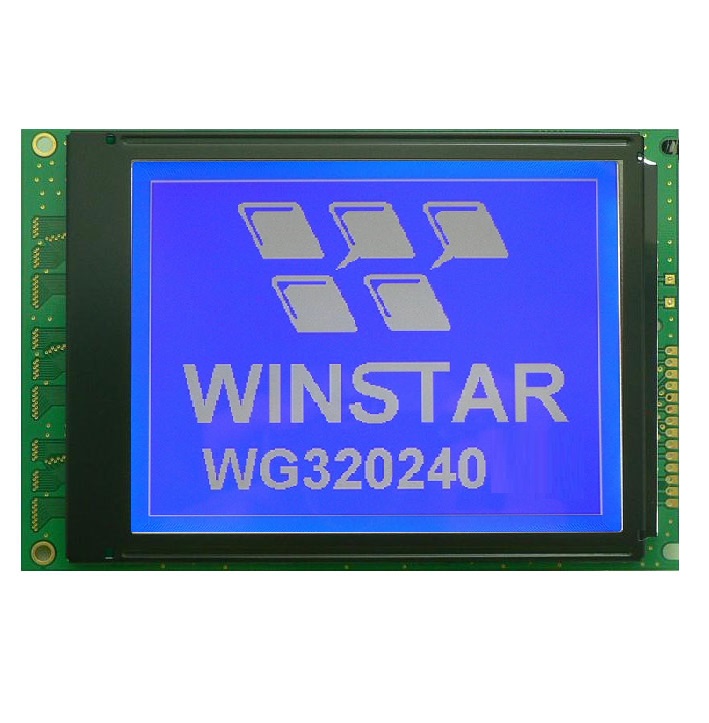

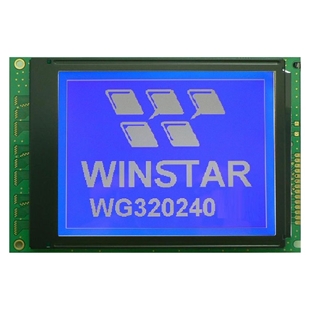

WG320240D0-TMI-TZ#

Graphic LCD 4.7'' 320x240, B/L white, STN blue neg, COB, 5V, Interface 6800/8080, 6 O'clock, VNEG, Temperature compensator

DESCRIPTION

WG320240D0 is monochrome 320x240 LCD graphic displays which is having the module dimension of 142x96 mm and AA size of 95.97x71.97 mm, diagonal size 4.7 inch.  This LCD graphic display is with IC RA8835 on module. Operating temperatures from -20℃ to +70℃;  storage temperatures range from -30℃ to +80℃.

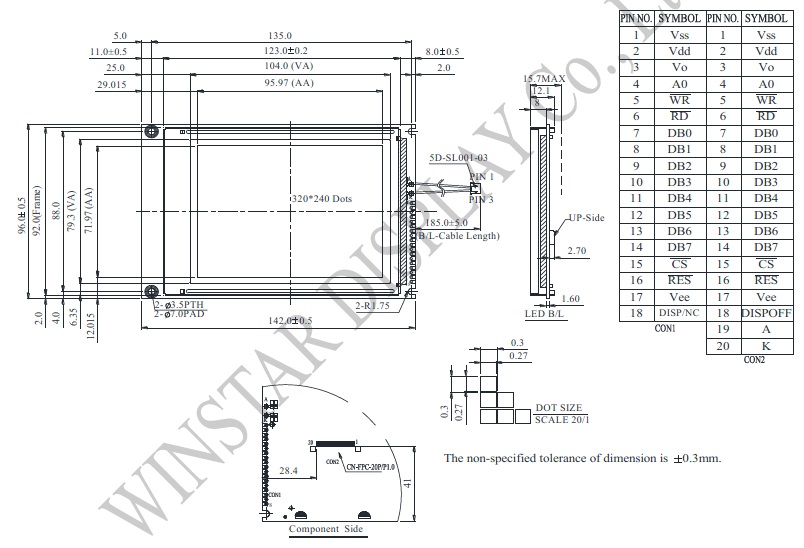

DRAWING

SKU: WG320240D0-TMI-TZ#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€71.70
€63.30
€61.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€71.70 excl tax

DESCRIPTION

WG320240D0 is monochrome 320x240 LCD graphic displays which is having the module dimension of 142x96 mm and AA size of 95.97x71.97 mm, diagonal size 4.7 inch.  This LCD graphic display is with IC RA8835 on module. Operating temperatures from -20℃ to +70℃;  storage temperatures range from -30℃ to +80℃.


DRAWING

Products specifications
Brand Winstar
Size 4.7"
Resolution 320x240
Active Area (mm) 95.97x71.97
Dot Size 0.27x0.27
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800/8080
Display IC Controller RA8835
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 1mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.7"
Resolution 320x240
Active Area (mm) 95.97x71.97
Dot Size 0.27x0.27
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800/8080
Display IC Controller RA8835
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 1mm
Preferred - Not Preferred Preferred
