WH0802A-YYH-JT#050

Character LCD 1.2'' 8x2, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock, Super wide operating temperature -30+80°C

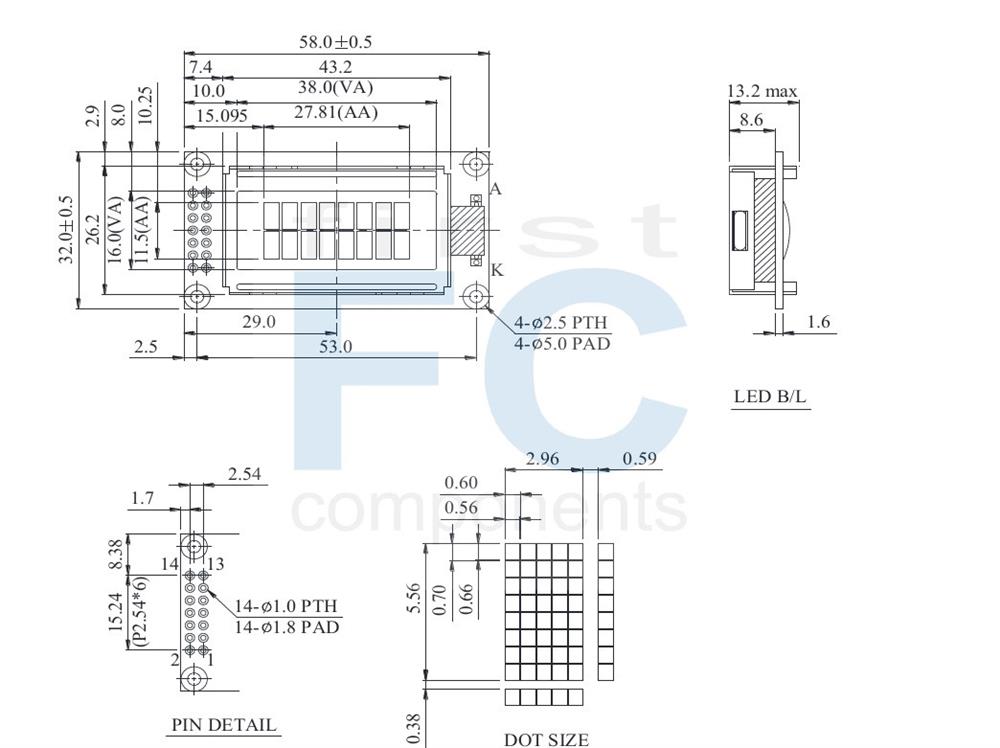

DRAWING





SPECIFICATIONS



General Specification

Item

Dimension

Unit

Number of Characters

8 characters x 2Lines

-

Module dimension

58.0 x 32.0 x 13.2 (MAX)

mm

View area

38.0 x 16.0

mm

Active area

27.81 x 11.5

mm

Dot size

0.56 x 0.66

mm

Dot pitch

0.60 x 0.70

mm

Character size

2.96 x 5.56

mm

Character pitch

3.55 x 5.94

mm

LCD type

STN Positive, Yellow Green Transflective

(In LCD production, It will occur slightly color difference. We can only guarantee the same color in the same batch.)

Duty

1/16

View direction

6 o’clock

Backlight Type

LED, Yellow Green

IC

ST7066U

Interface

68 series



Interface Pin Function

Pin No.

Symbol

Level

Description

1

VSS

0V

Ground

2

VDD

5.0V

Supply Voltage for logic

3

VO

(Variable)

Operating voltage for LCD

4

RS

H/L

H: DATA, L: Instruction code

5

R/W

H/L

H: Read   L: Write

6

E

H,H→L

Chip enable signal

7

DB0

H/L

Data bus line

8

DB1

H/L

Data bus line

9

DB2

H/L

Data bus line

10

DB3

H/L

Data bus line

11

DB4

H/L

Data bus line

12

DB5

H/L

Data bus line

13

DB6

H/L

Data bus line

14

DB7

H/L

Data bus line

SKU: WH0802A-YYH-JT#050
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€6.10
€4.50
€4.30
€4.20
€4.10
€3.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€6.10 excl tax



DRAWING





SPECIFICATIONS



General Specification

Item

Dimension

Unit

Number of Characters

8 characters x 2Lines

-

Module dimension

58.0 x 32.0 x 13.2 (MAX)

mm

View area

38.0 x 16.0

mm

Active area

27.81 x 11.5

mm

Dot size

0.56 x 0.66

mm

Dot pitch

0.60 x 0.70

mm

Character size

2.96 x 5.56

mm

Character pitch

3.55 x 5.94

mm

LCD type

STN Positive, Yellow Green Transflective

(In LCD production, It will occur slightly color difference. We can only guarantee the same color in the same batch.)

Duty

1/16

View direction

6 o’clock

Backlight Type

LED, Yellow Green

IC

ST7066U

Interface

68 series



Interface Pin Function

Pin No.

Symbol

Level

Description

1

VSS

0V

Ground

2

VDD

5.0V

Supply Voltage for logic

3

VO

(Variable)

Operating voltage for LCD

4

RS

H/L

H: DATA, L: Instruction code

5

R/W

H/L

H: Read   L: Write

6

E

H,H→L

Chip enable signal

7

DB0

H/L

Data bus line

8

DB1

H/L

Data bus line

9

DB2

H/L

Data bus line

10

DB3

H/L

Data bus line

11

DB4

H/L

Data bus line

12

DB5

H/L

Data bus line

13

DB6

H/L

Data bus line

14

DB7

H/L

Data bus line

Products specifications
Brand Winstar
Size 1.2"
Resolution 8x2
Active Area (mm) 27.81x11.50
Dot Size 0.56x0.66
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -30~80
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
