WH1602P-YYH-ET#

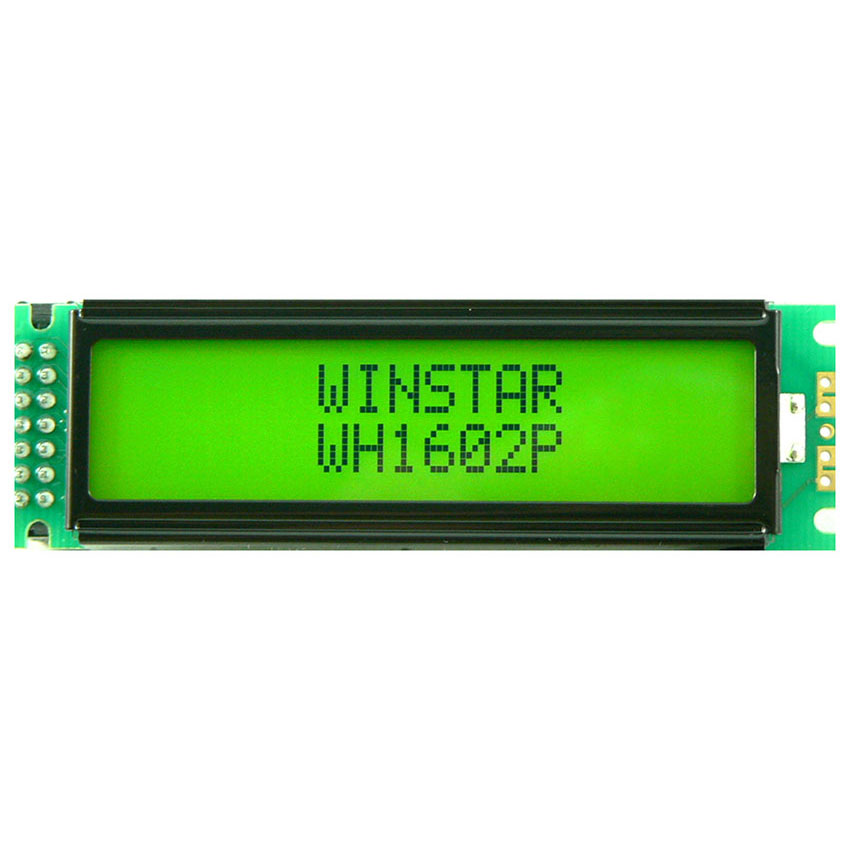

Character LCD 2.3" 16x2, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION

WH1602P is a 16x2 Character dot Matrix LCD Display Module which is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. WH1602P is available in several different backlight colors including blue, green, white, yellow-green, amber, red or white LEDs. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

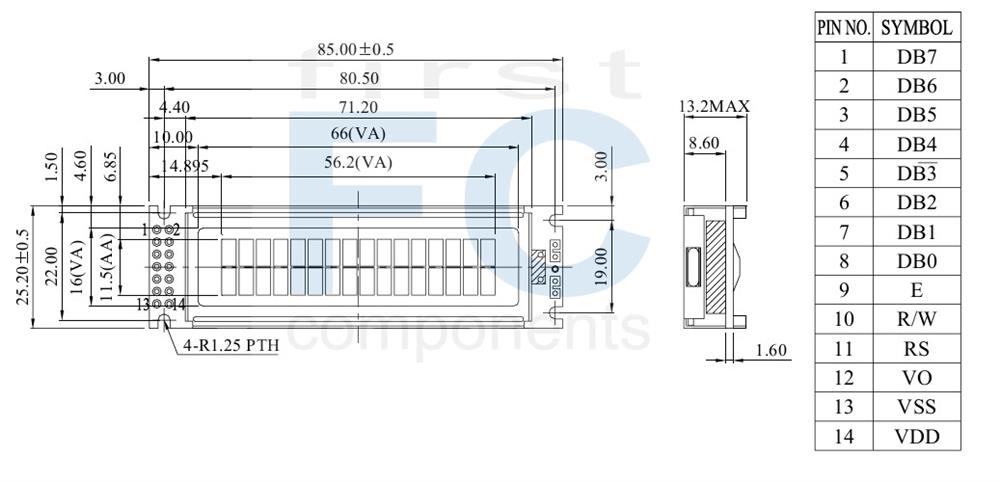

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1~8	DB7~DB0	Data bus line
9	E	Enable signal
10	R/W	Read/Write select signal
11	RS	Data/ Instruction select signal
12	V_O	Contrast Adjustment
13	V_SS	Ground
14	V_DD	Power supply for logic

Mechanical Data

Item	Standard Value	Unit
Module Dimension	85.0 × 25.2	mm
Viewing Area	66.0 × 16.0	mm
Mounting Hole	80.5 × 22.0	mm
Character Size	2.95 × 5.55	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	3.70	V

Display Character Address Code

Display Position	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
DD RAM Address	00	01														0F
DD RAM Address	40	41														4F

SKU: WH1602P-YYH-ET#

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

25+

Price

€6.70

€4.90

€4.80

€4.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€6.70 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1~8	DB7~DB0	Data bus line
9	E	Enable signal
10	R/W	Read/Write select signal
11	RS	Data/ Instruction select signal
12	V_O	Contrast Adjustment
13	V_SS	Ground
14	V_DD	Power supply for logic

Mechanical Data

Item	Standard Value	Unit
Module Dimension	85.0 × 25.2	mm
Viewing Area	66.0 × 16.0	mm
Mounting Hole	80.5 × 22.0	mm
Character Size	2.95 × 5.55	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	3.70	V

Display Character Address Code

Display Position	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
DD RAM Address	00	01														0F
DD RAM Address	40	41														4F

Products specifications

Brand	Winstar
Size	2.3"
Resolution	16x2
Active Area (mm)	56.20x11.50
Dot Size	0.55x0.65
B/L color, LCD type	B/L yellow/green, STN yellow/green pos
Power supply	5V
Display Interface	6800
Display IC	ST7066
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	14
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
