WH1602V2-PFH-JT#

Character LCD 2.26'' 16x2, B/L blue, FSTN white pos, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION

Winstar 16x2 character display module WH1602V2 is having thinner LCD panel of 0.7 mm in thickness. This display is built-in with ST7066U controller and has the outline dimension of 66.7 x 23.3 mm and VA size of 61 x 15.9 mm. There are two kinds of backlight as options which are Blue LEDs and Yellow-Green LEDs. The WH1602V2 16x2 Character Display Module is using 2908 LED dices which lifetime is around 50K hours. Operating temperature from -20℃ to + 70℃; storage temperature from -30℃ to + 80℃.

There are different interface options for WH1602V2 series, details as below:
►WH1602V2 : 6800 interface (ST7066 IC)
►WH1602V4 : SPI interface (RW1063 IC)


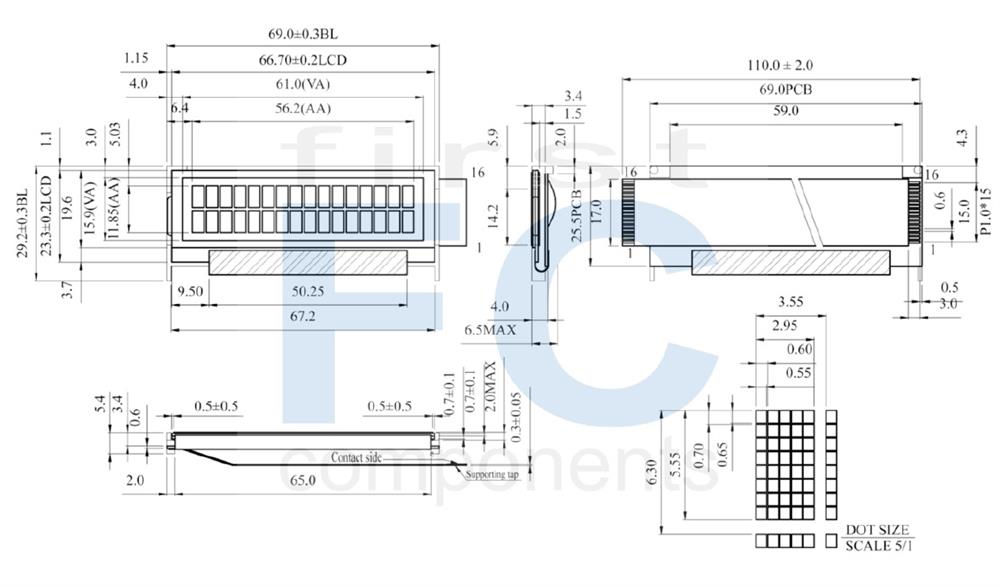

DRAWING

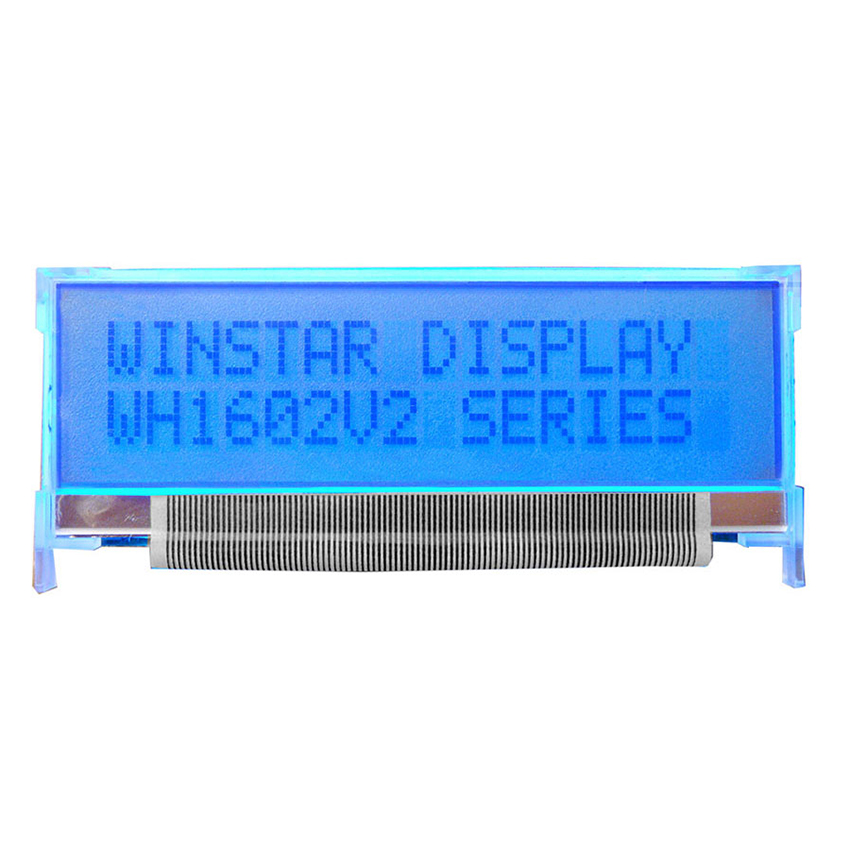

Winstar WH1602V2 - 16x2 LCD Character Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 69.0 × 29.2 mm
Viewing Area 61.0 × 15.9 mm
Character Size 2.95 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.20 V


SKU: WH1602V2-PFH-JT#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€8.40
€6.10
€5.90
€5.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€8.40 excl tax

DESCRIPTION

Winstar 16x2 character display module WH1602V2 is having thinner LCD panel of 0.7 mm in thickness. This display is built-in with ST7066U controller and has the outline dimension of 66.7 x 23.3 mm and VA size of 61 x 15.9 mm. There are two kinds of backlight as options which are Blue LEDs and Yellow-Green LEDs. The WH1602V2 16x2 Character Display Module is using 2908 LED dices which lifetime is around 50K hours. Operating temperature from -20℃ to + 70℃; storage temperature from -30℃ to + 80℃.

There are different interface options for WH1602V2 series, details as below:
►WH1602V2 : 6800 interface (ST7066 IC)
►WH1602V4 : SPI interface (RW1063 IC)


DRAWING

Winstar WH1602V2 - 16x2 LCD Character Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 69.0 × 29.2 mm
Viewing Area 61.0 × 15.9 mm
Character Size 2.95 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.20 V


Products specifications
Brand Winstar
Size 2.26"
Resolution 16x2
Active Area (mm) 56.20x11.85
Dot Size 0.55x0.65
B/L color, LCD type B/L blue, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection FFC per ZIF Connector
Pin Nr. 16
Pin Pitch 1mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.26"
Resolution 16x2
Active Area (mm) 56.20x11.85
Dot Size 0.55x0.65
B/L color, LCD type B/L blue, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection FFC per ZIF Connector
Pin Nr. 16
Pin Pitch 1mm
Preferred - Not Preferred Preferred
