    WH2002A-TMI-ETV#

    Be the first to review this product
    Character LCD 2.9" 20x2, B/L white, STN blue neg, Transmissive, COB, 3V, Interface 6800, Font Eng/Eu, 6 O'clock
    Manufacturer: Winstar
    SKU: WH2002A-TMI-ETV#

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €14.90
    €13.50
    €12.70
    €12.30

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €14.90 excl tax
    i h

    DESCRIPTION

    WH2002A is a Character LCD 20x2 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  These LCD display 20x2 modules are also available in SPI and I2C interface by using RW1063 controller IC. WH2002A is available in several different backlight colors including blue, green, white, yellow-green, amber, red and white LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.  This module can operate at temperature from -20℃ to + 70℃; its storage temperature ranges from -30℃ to + 80℃.

    There are different interface options for WH2002A series, details as below:
    ►WH2002A : 6800 interface (ST7066 IC)
    ►WH2002A1 : SPI interface (RW1063 IC)
    ►WH2002A2 : I2C interface (RW1063 IC)

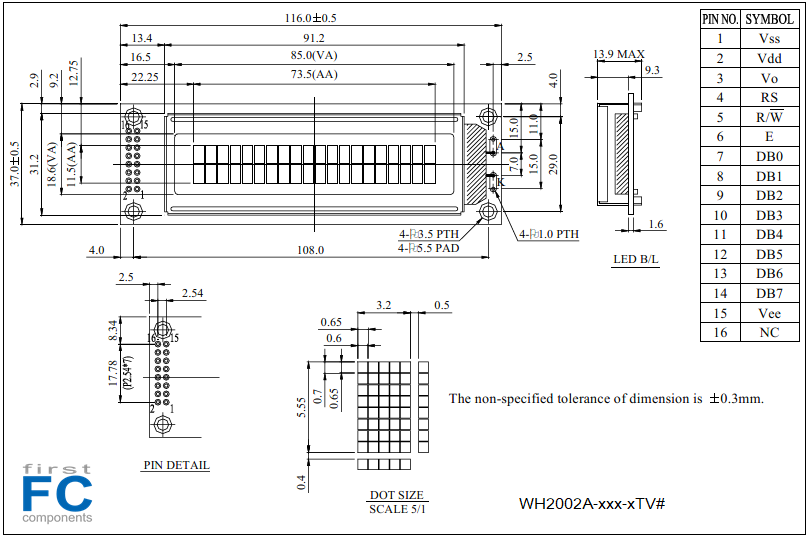

    DRAWING



    SPECIFICATIONS



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 116.0 × 37.0 mm
    Viewing Area 85.0 × 18.6 mm
    Mounting Hole 108.0 × 29.0 mm
    Character Size 3.2 × 5.55 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.    		Unit
    Input Voltage VDD 3 V



    Display Character Address Code

    Display Position12345678910111213------20
    DD RAM Address 00 01 　 　 　 　 　 　 　 　 　 　 　 　 　 13
    DD RAM Address 40 41 　 　 　 　 　 　 　 　 　 　 　 　 　 53
    Products specifications
    Size 2.9"
    Resolution 20x2
    Active Area (mm) 73.50x11.50
    Dot Size 0.60x0.65
    B/L color, LCD type B/L white, STN blue neg
    Power supply 3V
    Display Interface 6800
    Display IC ST7066
    Constructive Structure COB
    View Angle 6H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
