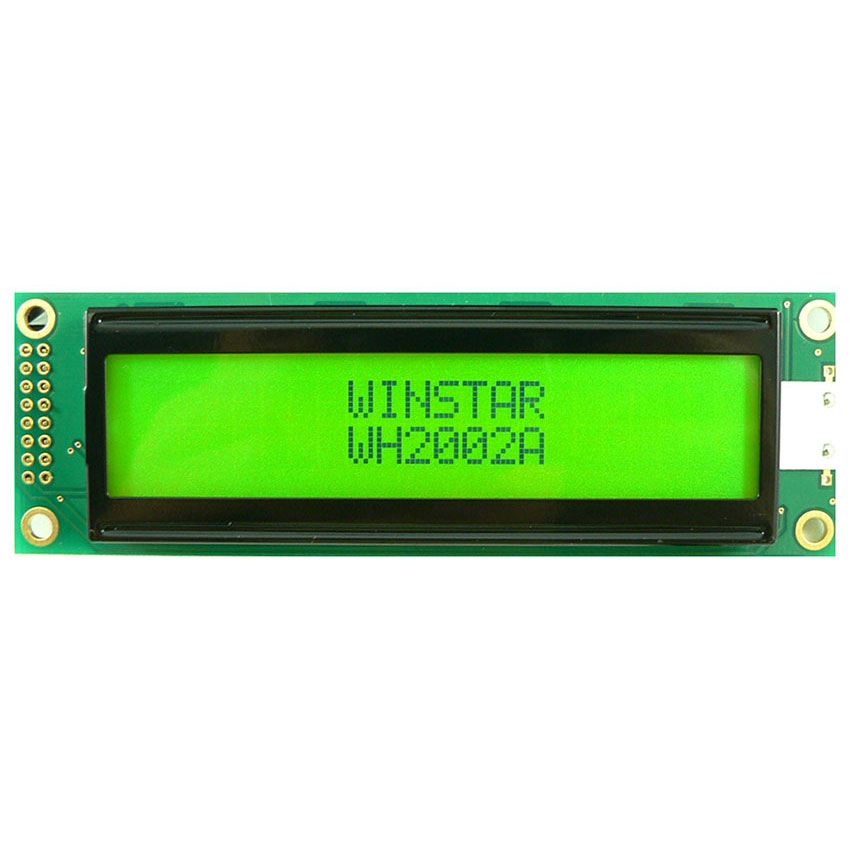

WH2002A-YYH-JT#510

Character LCD 2.9" 20x2, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock, Reverse A-K, Fixed contrast

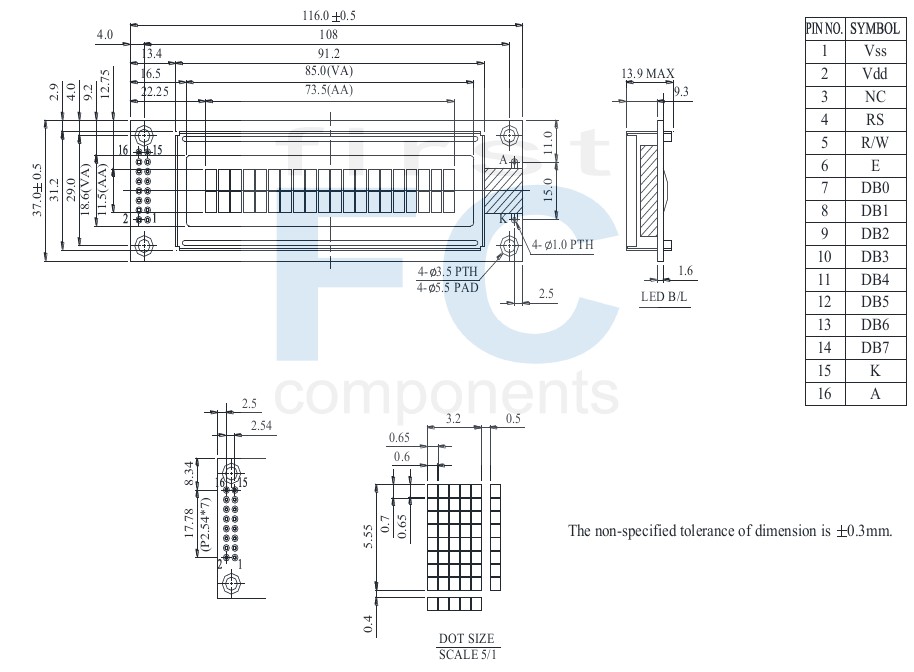

DRAWING

SKU: WH2002A-YYH-JT#510
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€11.20
€8.20
€7.90
€7.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€11.20 excl tax



DRAWING

Products specifications
Brand Winstar
Size 2.9"
Resolution 20x2
Active Area (mm) 73.50x11.50
Dot Size 0.60x0.65
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.9"
Resolution 20x2
Active Area (mm) 73.50x11.50
Dot Size 0.60x0.65
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
