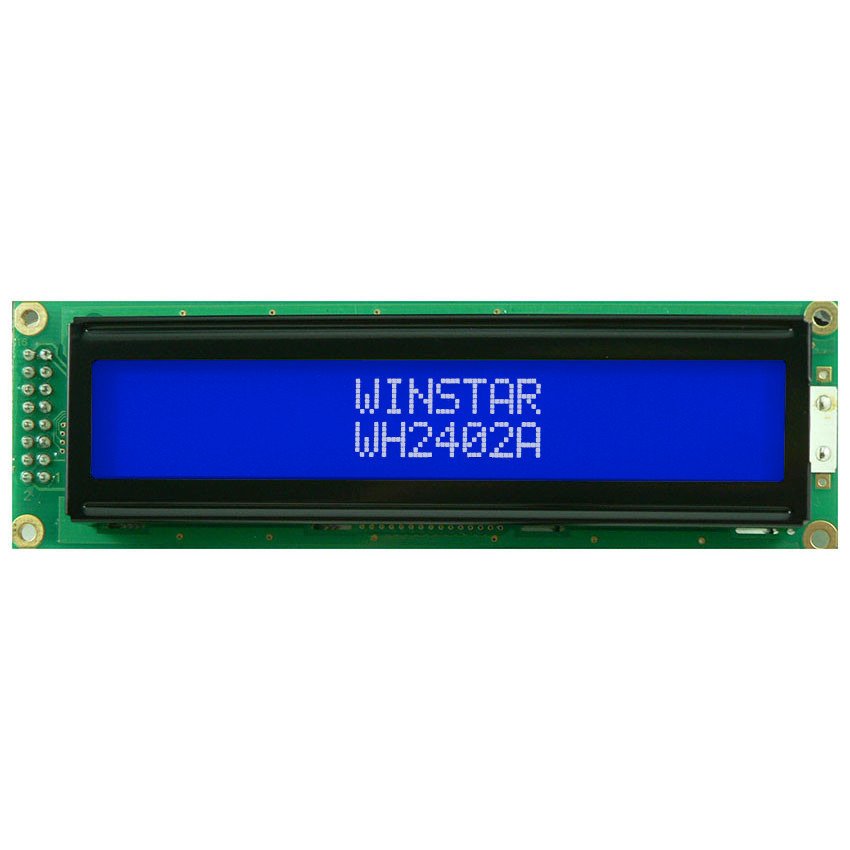

WH2402A-TMI-JT#

Character LCD 3.5'' 24x2, B/L white, STN blue neg, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION



WH2402A is 24 characters by 2 lines LCD 24x2 display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. This LCD display 24x2 model WH2402A is available for without backlight or with LED backlight options. This display LCD 24x 2 modules is available in various LCD panel colors including gray, yellow/green and blue LCD options. The LEDs can be driven by pin 1, pin 2, or pin 15 pin 16 or A/K. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH2402A series, details as below:
►WH2402A : 6800 interface (ST7066 IC)
►WH2402A1 : SPI interface (RW1063 IC)

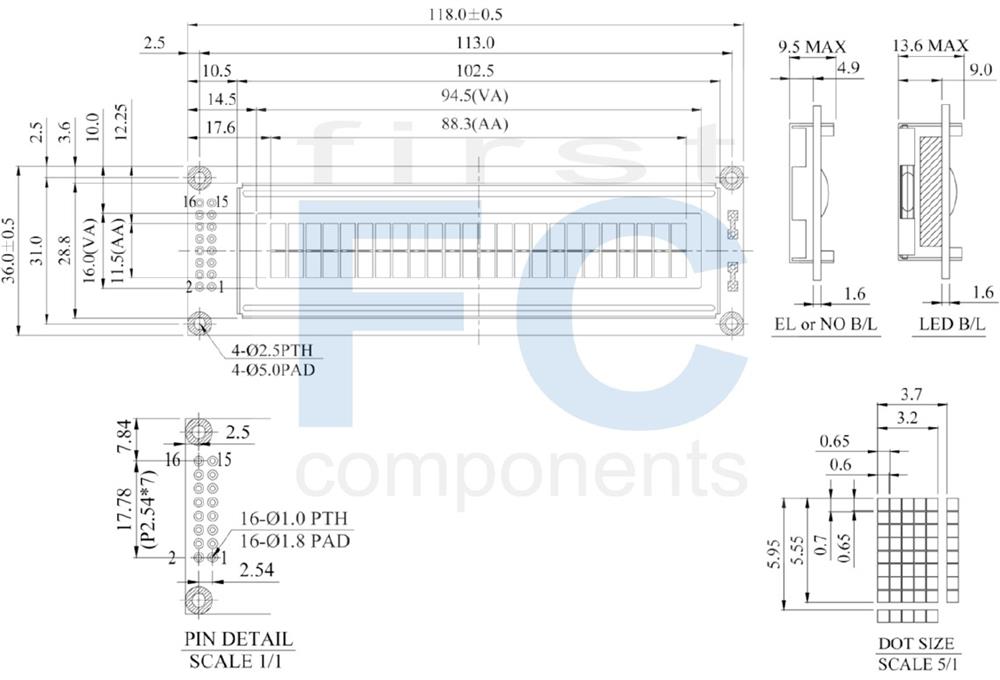

DRAWING

Winstar WH2402A - LCD 24x2, Display LCD 24x2, LCD Display 24x2

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 118.0 × 36.0 mm
Viewing Area 94.5 × 16.0 mm
Mounting Hole 113.0 × 31.0 mm
Character Size 3.2 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.35 V



Display Character Address Code

Display Position123456789101112---------24
DD RAM Address 00 01                           17
DD RAM Address 40 41                           57


SKU: WH2402A-TMI-JT#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€11.20
€8.20
€6.70
€6.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€11.20 excl tax

DESCRIPTION



WH2402A is 24 characters by 2 lines LCD 24x2 display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. This LCD display 24x2 model WH2402A is available for without backlight or with LED backlight options. This display LCD 24x 2 modules is available in various LCD panel colors including gray, yellow/green and blue LCD options. The LEDs can be driven by pin 1, pin 2, or pin 15 pin 16 or A/K. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH2402A series, details as below:
►WH2402A : 6800 interface (ST7066 IC)
►WH2402A1 : SPI interface (RW1063 IC)



DRAWING

Winstar WH2402A - LCD 24x2, Display LCD 24x2, LCD Display 24x2

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 118.0 × 36.0 mm
Viewing Area 94.5 × 16.0 mm
Mounting Hole 113.0 × 31.0 mm
Character Size 3.2 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.35 V



Display Character Address Code

Display Position123456789101112---------24
DD RAM Address 00 01                           17
DD RAM Address 40 41                           57


Products specifications
Brand Winstar
Size 3.5"
Resolution 24x2
Active Area (mm) 88.30x11.50
Dot Size 0.60x0.65
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800
Built-in Controller ST7066
Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 24x2
Active Area (mm) 88.30x11.50
Dot Size 0.60x0.65
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800
Built-in Controller ST7066
Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
