WVA TFT - IPS Technology-

WVA TFT - IPS Technology-

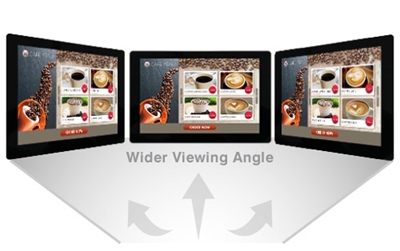

FIRST Components LCD product portfolio comes with IPS (In-Plane Switching) TFT LCD modules offering a full range of available sizes from 0.96” to 12.3'' and more. To deliver better performances in a range of demanding situations, FC can offer high brightness versions (up to 1100 cd/m2), wide temperature range (up to -30~+85), Resistive Touch Panel (RTP) or Projected Capacitive Touch Panel (PCAP) options. IPS TFT Panels are becoming very popular thanks to the super wide viewing angle ( >80°/ 80°/ 80°/ 80°) and to the improved aperture ratio which gives higher brightness and color reproducibility.

Please see the below quick selection chart. Welcome to contact us for more details at marketing@first-components.com

  • Size: 0.96'' / Resolution: 80x160
  • Brightness: 500 (cd/m2)
  • Interface MCU: SPI IC ST7735S
  • OP Temperature: -20°~+70°
  • P/N: WF096-80160FD#0P0-FC

  • Size: 2.4'' / Resolution: 240x320
  • Brightness: 500 (cd/m2)
  • Interface MCU: Parallel-SPI IC ILI9341
  • OP Temperature: -20°~+70°
  • P/N: WF24-240320LS#0P0-FC


  • Size: 2.8'' / Resolution: 240x320
  • Brightness: 500~1100 (cd/m2)
  • Interface: MCU: Parallel-SPI IC ILI9341
  • OP Temperature: -20°~+70°
  • P/N: WF28-240320JD#0SP0-FC


  • Size: 3.5'' / Resolution: 320x480
  • Brightness: 600 (cd/m2)
  • Interface MCU: Parallel-SPI IC ILI9488
  • OP Temperature: -20°~+70°
  • P/N: WF35-320480UD#0P0-FC


  • Size: 3.5'' / Resolution: 240x320
  • Brightness: 1000 (cd/m2)
  • Interface MCU: Parallel
  • OP Temperature: -30°~+80°
  • P/N: WF35-240320WD#0SPW0-FC


  • Size: 3.5'' / Resolution: 320x240
  • Brightness: 500~1000 (cd/m2)
  • Interface: RGB
  • OP Temperature: -20°~+70°
  • P/N: WF35-320240XD#0xPx-FC

  • Size: 3.97'' / Resolution: 800x480
  • Brightness: 600 (cd/m2)
  • Interface: MIPI DSI IC ST7701S
  • OP Temperature: -20°~+70°
  • P/N: WF40-480800CM#0P0-FC

  • Size: 5'' / Resolution: 720x1280
  • Brightness: 300~1100 (cd/m2)
  • Interface: MIPI DSI IC ILI9881C
  • OP Temperature: -20°~+70°
  • P/N: WF50-7201280DM#0xPx-FC


  • Size: 5'' / Resolution: 800x480
  • Brightness: 500~1100 (cd/m2)
  • Interface: RGB
  • OP Temperature: -20°~+70° / -30°~+80°
  • P/N: WF50-800480xD#0xPW0-FC


  • Size: 7'' / Resolution: 800x480
  • Brightness: 1000 (cd/m2)
  • Interface: RGB
  • OP Temperature: -30°~+80°
  • P/N: WF70-800480A4D#0SPW0-FC


  • Size: 8.8'' / Resolution: 480x1920
  • Brightness: 600 (cd/m2)
  • Interface: MIPI DSI IC -
  • OP Temperature: -20°~+70°
  • P/N: WF88-4801920BM#0P0-FC

  • Size: 10.1'' / Resolution: 1280x800
  • Brightness: 350~1100 (cd/m2)
  • Interface: LVDS or HDMI
  • OP Temperature: -20°~+70°
  • P/N: WF101-1280800xx#0xPx-FC

  • Size: 12.1'' / Resolution: 1024x768
  • Brightness: 600 (cd/m2)
  • Interface: LVDS
  • OP Temperature: -30°~+85°
  • P/N: WF121-1024768EL#0PW0-FC

  • Size: 12.3'' / Resolution: 1920x720
  • Brightness: 800 (cd/m2)
  • Interface: LVDS
  • OP Temperature: -30°~+85°
  • P/N: WF123-1920720BL#0SPW0-FC



;
