7'' TFTs Very Competitive Full Line

7'' TFTs Very Competitive Full Line
  •          TFT 7''  800x480  Pixels RGB Interface
  •          TFT 7''  800x480  Pixels MCU Interface
  •          TFT 7'' 1024x600 Pixels LVDS Interface (IPS + HB)
  •          TFT 7''  800x480  Pixels HDMI (Raspberry) Interface
  •          TFT 7'' 1024x600 Pixels HDMI (Raspberry) Interface



Latest generation 7'' TFT at very competitive prices. Possibility to choose between different resolutions (800x480 / 1024x600 /...), glass (standard angle / wide view angle in O-Film or IPS technology), brightness (standard / high brightness), interfaces (RGB / MCU / LVDS / HDMI with Raspberry connection), resistive or capacitive touch panel options (I2C / USB interface) and more...

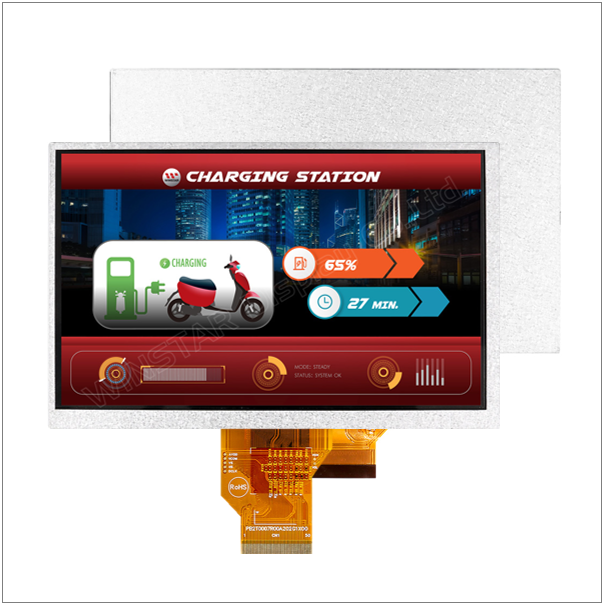

TFT 7'' 800x480 Pixels RGB Interface



7'' TFT 800x480 pixels. RGB interface (50pins). Standard view angle or wide view angle available (O-Film technology). Standard brightness or high brightness option (up to 900nits). Operating temperature: -20°C~+70°C.

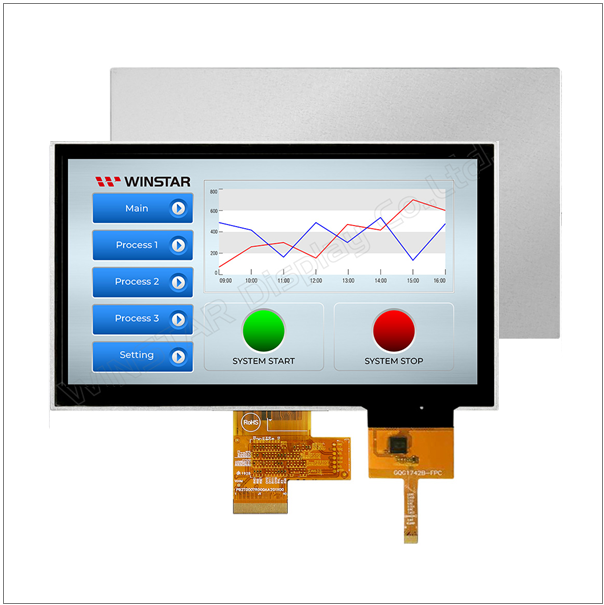

 TFT 7'' 800x480 Pixels MCU Interface

7'' TFT 800x480 pixels.MCU interface 8-16bit (36pins). Standard view angle or wide view angle available (O-Film technology). Standard brightness or high brightness option (up to 900nits). Operating temperature: -20°C~+70°C.

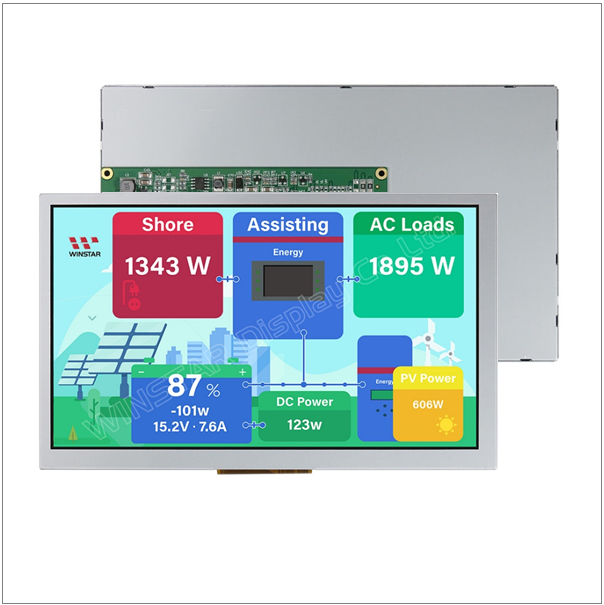

TFT 7'' 1024x600 Pixels LVDS Interface (IPS + HB)

7'' TFT 1024x600 pixels. LVDS interface (40pins). Wide view angle in IPS technology. Standard brightness or high brightness option (up to 1100nits). Operating temperature: -20°C~+70°C.

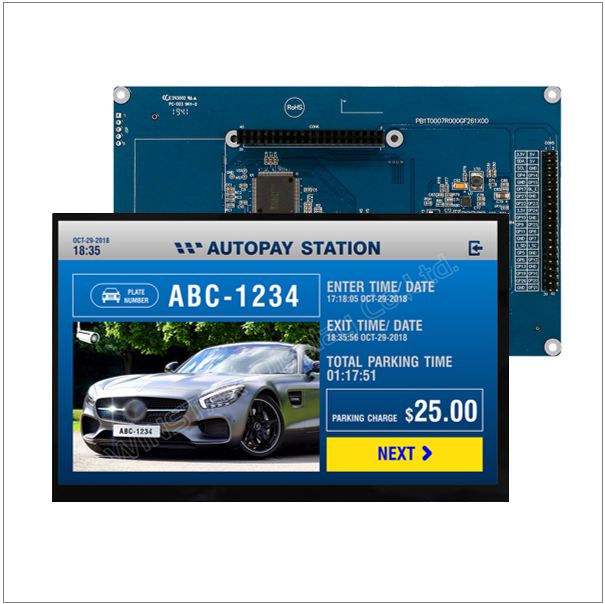

TFT 7'' 800x480 Pixels HDMI (Raspberry) Interface

7'' TFT 800x480 pixels. HDMI interface (40pins GPIO connector on board for Raspberry Pi connection). Standard view angle. Standard brightness or high brightness option (up to 900nits). Operating temperature: -20°C~+70°C. HDMI connector P/N WWHDMI-00# as option.

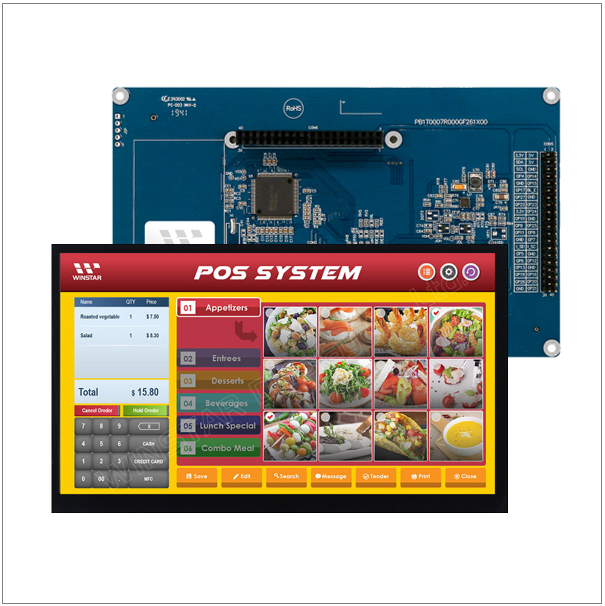

TFT 7'' 1024x600 Pixels HDMI (Raspberry) Interface

7'' TFT 1024x600 pixels. HDMI interface (40pins GPIO connector on board for Raspberry Pi connection). Standard view angle and standard brightness. Operating temperature: -20°C~+70°C. HDMI connector P/N WWHDMI-00# as option.



Please check on our web the product you need! You will find datasheet, price, availability of more than 1000 different P/Ns. If you do not find what you're looking for please just call +39 0332 1888005 or send an email to info@first-components.com









;
