WO12864-85HC2#020-FC
WO12864-85HC2#020-FC

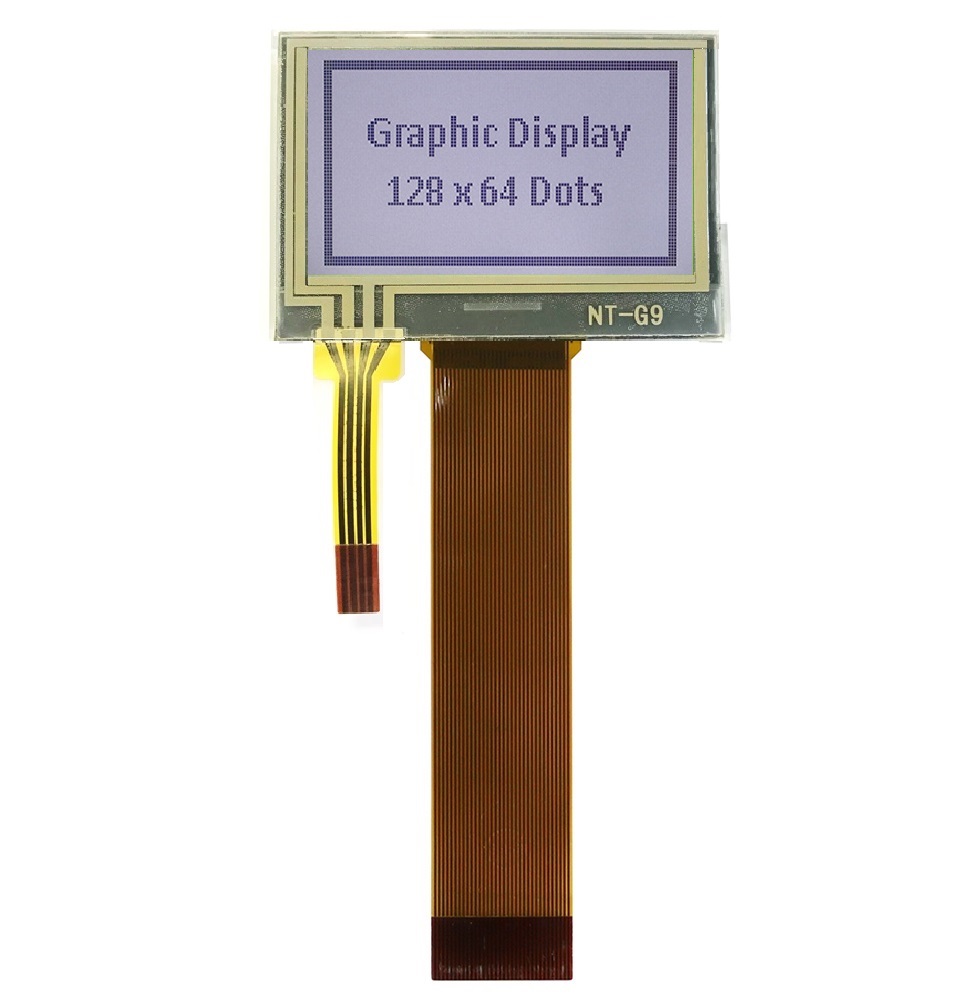

Graphic LCD 1.9'' 128x64, B/L white, FSTN white pos, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock, Resistive touch panel
MOQ
After sample PO,
MP COG MOQ 500pcs, Touch panel MOQ 1500pcs

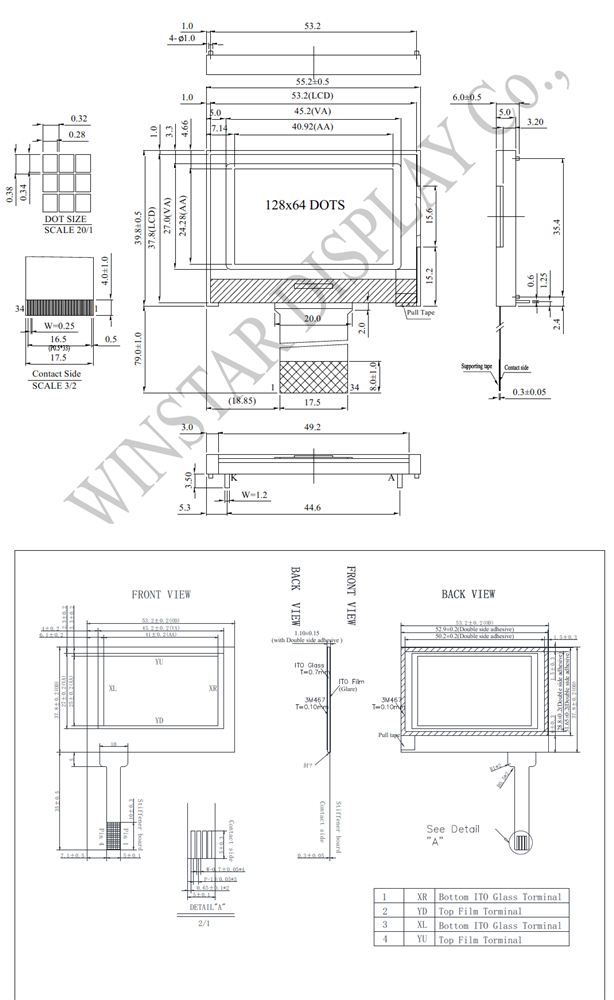

DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
IRS
Selects the resistors for the V0 voltage level adjustment
2
/HPM
Control power supply for LCD “H”: Normal mode, “L”: High power mode
3
P/S
Selects the interface type: Serial or Parallel.
4
C86
Interface selection 6800/8080
5
VR
LCD Contrast Adjustment when IRS = “L”
6~10
V0~V4
Bias voltage levels for LCD driving
11
VRS
This is the internal-output VREG power supply for the LCD power supply voltage regulator.
12
CAP4+
DC/DC voltage converter.
13
CAP2-
DC/DC voltage converter.
14
CAP2+
DC/DC voltage converter.
15
CAP1+
#N/A
16
CAP1-
DC/DC voltage converter.
17
CAP3+
DC/DC voltage converter.
18
CAP5+
DC/DC voltage converter
19
Vout
Positive Voltage output
20
V
SS
Ground
21
V
DD
Power supply for logic
22~29
D7~D0
#N/A
30
/RD(E)
8080 family: Read signal, 6800 family: Enable clock
31
/WR(RW)
8080 family: Write signal, 6800 family: Read/Write signal
32
A0
Data/ Instruction select signal
33
/RES
Controller reset signal, Active Low
34
/CS1
This is the chip select signal.
Mechanical Data
Item
Standard Value
Unit
Module Dimension
55.2 × 39.8
mm
Viewing Area
45.2 × 27.0
mm
Dot Pitch
0.32 × 0.38
mm
Dot Size
0.28 × 0.34
mm
Electrical Characteristics
Item
Symbol
Standard value
typ.
Unit
Input Voltage
VDD
3.0
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss
9.60
V
SKU:
WO12864-85HC2#020-FC
Brand:
Winstar
Available:
Yes
Be the first to review this product
Accessory Kit
Display Connector
-- Check specs. in Download section --
CNQ5231XXXXXXXXXXX00 [+€2.70]
MOLEX_54104-3433 [+€2.70]
MOLEX_54132-3433 [+€2.50]
Added Board
-- Check specs. in Download section --
SW101286400C0XXN0100 [+€9.00]
€11.80 excl tax
Overview
Specifications
Download
Contact Us
MOQ
After sample PO,
MP COG MOQ 500pcs, Touch panel MOQ 1500pcs
DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
IRS
Selects the resistors for the V0 voltage level adjustment
2
/HPM
Control power supply for LCD “H”: Normal mode, “L”: High power mode
3
P/S
Selects the interface type: Serial or Parallel.
4
C86
Interface selection 6800/8080
5
VR
LCD Contrast Adjustment when IRS = “L”
6~10
V0~V4
Bias voltage levels for LCD driving
11
VRS
This is the internal-output VREG power supply for the LCD power supply voltage regulator.
12
CAP4+
DC/DC voltage converter.
13
CAP2-
DC/DC voltage converter.
14
CAP2+
DC/DC voltage converter.
15
CAP1+
#N/A
16
CAP1-
DC/DC voltage converter.
17
CAP3+
DC/DC voltage converter.
18
CAP5+
DC/DC voltage converter
19
Vout
Positive Voltage output
20
V
SS
Ground
21
V
DD
Power supply for logic
22~29
D7~D0
#N/A
30
/RD(E)
8080 family: Read signal, 6800 family: Enable clock
31
/WR(RW)
8080 family: Write signal, 6800 family: Read/Write signal
32
A0
Data/ Instruction select signal
33
/RES
Controller reset signal, Active Low
34
/CS1
This is the chip select signal.
Mechanical Data
Item
Standard Value
Unit
Module Dimension
55.2 × 39.8
mm
Viewing Area
45.2 × 27.0
mm
Dot Pitch
0.32 × 0.38
mm
Dot Size
0.28 × 0.34
mm
Electrical Characteristics
Item
Symbol
Standard value
typ.
Unit
Input Voltage
VDD
3.0
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss
9.60
V
Products specifications
Brand
Winstar
Size
1.9"
Resolution
128x64
Active Area (mm)
40.92x24.28
Dot Size
0.28x0.34
B/L color, LCD type
B/L white, FSTN white pos
Power supply
3.3V
Display Interface
6800/8080/SPI
Display IC Controller
ST7565P
Constructive Structure
COG
View Angle
6H
Frame
No
Touch Panel
Resistive
O. Temperature (°C)
-20~70
Display Connection
FPC per ZIF Connector
Pin Nr.
34
Pin Pitch
0.5mm
Preferred - Not Preferred
Not Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Winstar
Size
1.9"
Resolution
128x64
Active Area (mm)
40.92x24.28
Dot Size
0.28x0.34
B/L color, LCD type
B/L white, FSTN white pos
Power supply
3.3V
Display Interface
6800/8080/SPI
Display IC Controller
ST7565P
Constructive Structure
COG
View Angle
6H
Frame
No
Touch Panel
Resistive
O. Temperature (°C)
-20~70
Display Connection
FPC per ZIF Connector
Pin Nr.
34
Pin Pitch
0.5mm
Preferred - Not Preferred
Not Preferred
