WO12864-86IA1#FC

Graphic LCD 2.2'' 128x64, B/L white, FSTN black neg, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock

DESCRIPTION

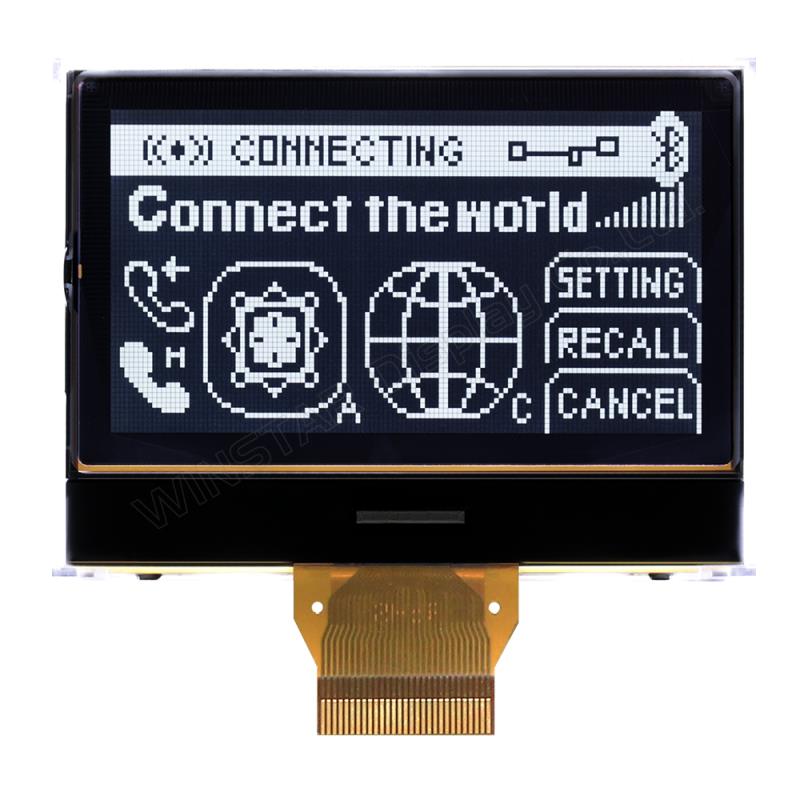

2.2 inch 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7565P controller or equivalent IC.  It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.  This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.

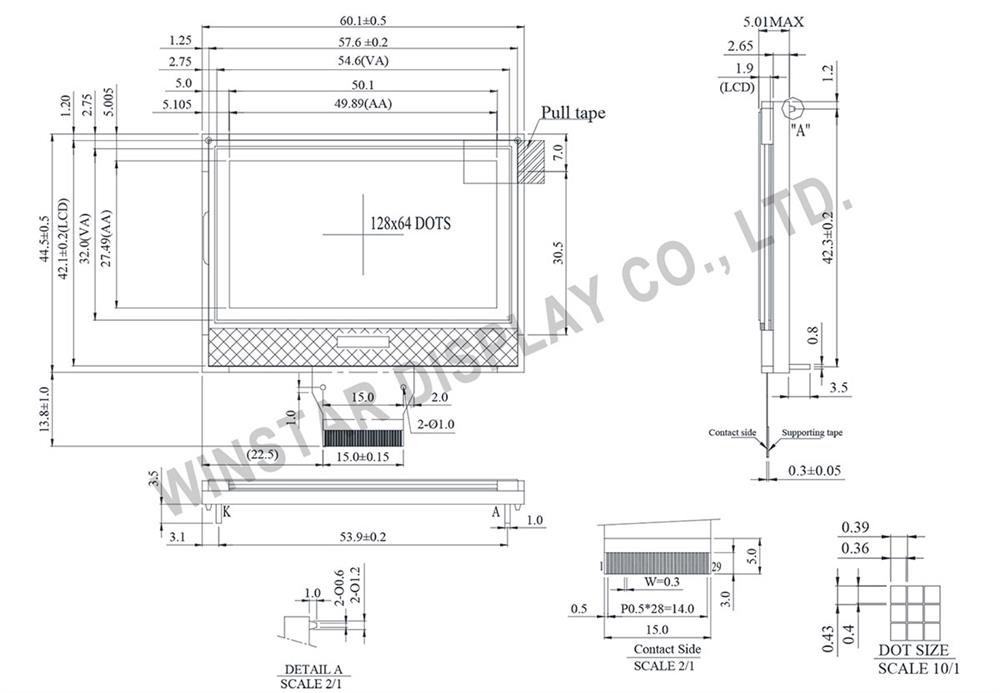

DRAWING

Winstar WO12864A1 128x64 COG LCD Module



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 P/S Selects the interface type: Serial or Parallel.
2 C86 Interface selection 6800/8080
3 VR LCD Contrast Adjustment when IRS = “L”
4~8 V0~V4 Bias voltage levels for LCD driving
9 CAP2N DC/DC voltage converter.
10 CAP2P DC/DC voltage converter.
11 CAP1P DC/DC voltage converter.
12 CAP1N DC/DC voltage converter.
13 CAP3P DC/DC voltage converter.
14 Vout Positive Voltage output
15 VSS Ground
16 VDD Power supply for logic
17~24 D7~ D0 Data bus line
25 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
26 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
27 A0 Data/ Instruction select signal
28 /RES Controller reset signal, Active Low
29 /CS1 This is the chip select signal.



Mechanical Data

ItemStandard ValueUnit
Module Dimension 60.1 × 44.5 mm
Viewing Area 54.6 × 32.0 mm
Dot Pitch 0.39 × 0.43 mm
Dot Size 0.36 × 0.40 mm



Electrical Characteristics

ItemSymbolStandard value
typ.
Unit
Input Voltage VDD 3.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 9.50 V


SKU: WO12864-86IA1#FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
50+
100+
Price
€14.80
€10.80
€9.10
€8.40
€7.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€14.80 excl tax

DESCRIPTION

2.2 inch 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7565P controller or equivalent IC.  It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.  This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.


DRAWING

Winstar WO12864A1 128x64 COG LCD Module



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 P/S Selects the interface type: Serial or Parallel.
2 C86 Interface selection 6800/8080
3 VR LCD Contrast Adjustment when IRS = “L”
4~8 V0~V4 Bias voltage levels for LCD driving
9 CAP2N DC/DC voltage converter.
10 CAP2P DC/DC voltage converter.
11 CAP1P DC/DC voltage converter.
12 CAP1N DC/DC voltage converter.
13 CAP3P DC/DC voltage converter.
14 Vout Positive Voltage output
15 VSS Ground
16 VDD Power supply for logic
17~24 D7~ D0 Data bus line
25 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
26 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
27 A0 Data/ Instruction select signal
28 /RES Controller reset signal, Active Low
29 /CS1 This is the chip select signal.



Mechanical Data

ItemStandard ValueUnit
Module Dimension 60.1 × 44.5 mm
Viewing Area 54.6 × 32.0 mm
Dot Pitch 0.39 × 0.43 mm
Dot Size 0.36 × 0.40 mm



Electrical Characteristics

ItemSymbolStandard value
typ.
Unit
Input Voltage VDD 3.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 9.50 V


Products specifications
Brand Winstar
Size 2.2"
Resolution 128x64
Active Area (mm) 49.89x27.49
Dot Size 0.36x0.40
B/L color, LCD type B/L white, FSTN black neg
Power supply 3.3V
Interface 6800/8080/SPI
Built-in Controller ST7565P
Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 29
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
