WO1602AT-43HK#FC

Character LCD 2.3" 16x2, B/L yellow/green, STN yellow/green pos, Transflective, COG, 3V/5V, Interface I2C, 6 O'clock (IC ST7032Ai)

DESCRIPTION

16 characters x 2 lines COG Character LCD module with metal pin connection. This display is built in with ST7032Ai controller IC and it supports I2C interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

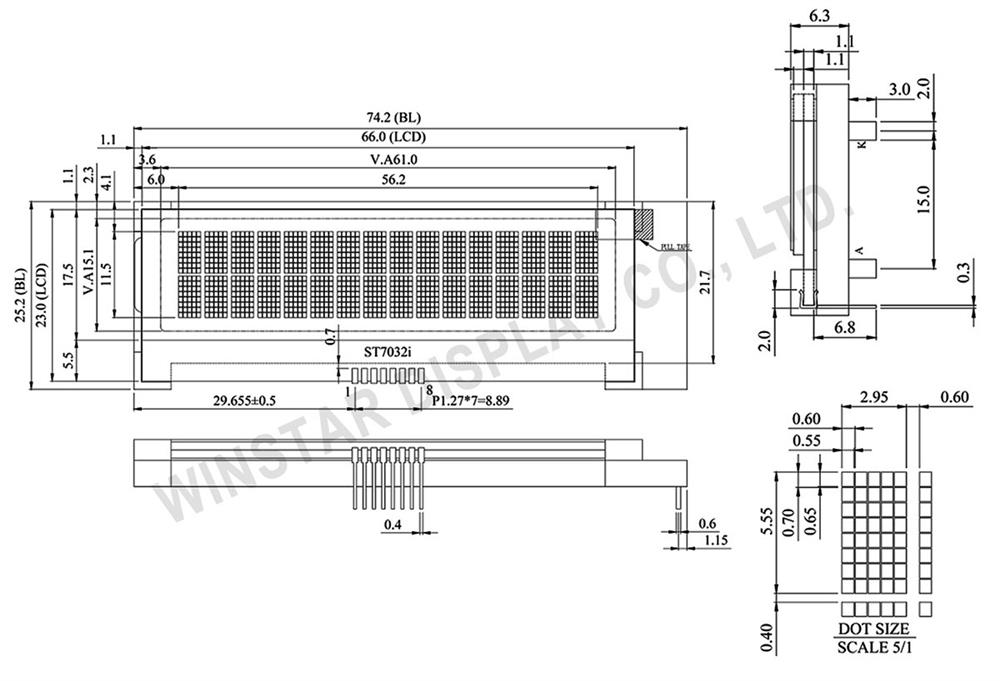

DRAWING I2C LCD Display Module, I2C Display, I2C LCD 16x2, I2C LCD Module - WO1602G Display 16x2 I2C

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 Vout Positive Voltage output
2 CAP1N DC/DC voltage converter.
3 CAP1P DC/DC voltage converter.
4 VDD Power supply for logic
5 VSS Ground
6 SDA Serial input data
7 SCL Serial clock input
8 RST Controller reset signal, Active Low



Mechanical Data

ItemStandard ValueUnit
Module Dimension 74.2 × 25.2 mm
Viewing Area 61.0 × 15.1 mm
Dot Pitch 0.60 × 0.70 mm
Dot Size 0.55 × 0.65 mm



Electrical Characteristics

ItemSymbolStandard value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 4.50 V


SKU: WO1602AT-43HK#FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€7.40
€5.40
€5.20
€5.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€7.40 excl tax

DESCRIPTION

16 characters x 2 lines COG Character LCD module with metal pin connection. This display is built in with ST7032Ai controller IC and it supports I2C interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.


DRAWING I2C LCD Display Module, I2C Display, I2C LCD 16x2, I2C LCD Module - WO1602G Display 16x2 I2C

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 Vout Positive Voltage output
2 CAP1N DC/DC voltage converter.
3 CAP1P DC/DC voltage converter.
4 VDD Power supply for logic
5 VSS Ground
6 SDA Serial input data
7 SCL Serial clock input
8 RST Controller reset signal, Active Low



Mechanical Data

ItemStandard ValueUnit
Module Dimension 74.2 × 25.2 mm
Viewing Area 61.0 × 15.1 mm
Dot Pitch 0.60 × 0.70 mm
Dot Size 0.55 × 0.65 mm



Electrical Characteristics

ItemSymbolStandard value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 4.50 V


Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 3V
Display Interface I2C
Display IC ST7032Ai
Constructive Structure COG
View Angle 6H
Frame No
O. Temperature (°C) -20~70
Display Connection Pin Strip
Pin Nr. 8
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 3V
Display Interface I2C
Display IC ST7032Ai
Constructive Structure COG
View Angle 6H
Frame No
O. Temperature (°C) -20~70
Display Connection Pin Strip
Pin Nr. 8
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
